Flexible PCB Board

Introduction：

Flex PCBs, also known as flexible printed circuits or flexible electronics, provide greater options for designers and engineers when assembling electronic circuits.

They are constructed from flexible, high-performance plastic material, usually polyimide, which enables the board to bend or "flex" during use. This flexibility opens them up to use in a wide range of applications.

Prototype PCB Aluminum Base Board Single Side 1.6mm Milling PCB Surface HASL

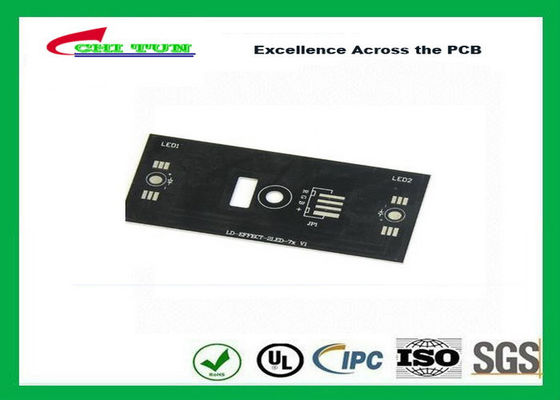

Large Image : Prototype PCB Aluminum Base Board Single Side 1.6mm Milling PCB Surface HASL

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ChiTunPCB
Certification:	UL/ISO/ROHS/SGS
Model Number:	CTEL0110118

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	base on gerberfiles
Packaging Details:	Vacuum package and export standard corton
Delivery Time:	8-15days
Payment Terms:	TT, LC, Western Union, D/A,, D/P,and others base on negotiation
Supply Ability:	80000 Square Meters Per Month

Contact Now

Detailed Product Description

Material:

AL-Base 1.6mm

Surface:

HASL

Solder Mask:

Black

Highlight:

quick turn pcb fabrication

quick turn printed circuit boards

Prototype PCB Aluminum Base Board Single Side 1.6mm Milling PCB

	Product Description
Model Number:	CTEL0110118
Number of Layer:	1Layer
Material:	ALu
Finish Thickness:	1.6mm
copper:	1oz
PCB Size :	65*65mm
Line Width/line space
Min.Hole size :
Surface finish :	HASL
	Black solder mask
	no sillkscreen
	E-TEST
	Milling
Place of Origin:	China
Brand Name:	CHITUN
Certification:	UL,ROHS,ISO
Standard:	IPC standard

Technical Options for Metal Core Circuit boards

1 layer		Notes
Material	Aluminum core, FR4 covering
Max. size	500mm x 500mm
Aluminum thickness	1.5mm, 2.0mm
Initial copper	35µm (for 1.5mm), 140µm (for 2.0mm)
Surface	Lead-free HAL, immersion gold, immersion tin
RoHS compliant	yes
2 layers plated through
Material	Aluminum core, FR4 covering
Max. size	600mm x 600mm
Aluminum thickness	1.2mm, 1.5mm, 1.6mm
	0.8mm, 1.0mm, 2.0mm
Basis copper	18µm, 35µm, 70µm, 105µm, 140µm
Surface	Lead-free HAL, immersion gold, immersion tin
RoHS compliant	yes
Design parameters
Min. conductor width	200µm
Min. conductor spacing	200µm
Min. annular ring	150µm
Min. via (pth)	0.3mm

Application:

1. Audio and Video equipment: Input/output amplifier, balanced amplifiers, audio amplifiers, preamplifier, power amplifier

2. Communication electronic equipment: high-frequency amplifier, filter amplifier, transmitter circuit

3. Office automation equipment: motor drive, and so on.

4. Automotive: Electronic regulator, lighter, power controller

5. Computer: CPU board, floppy disk drive, power supply devices

6. Power Modules: converter, rectifier,UPS,bridge solid-state relay

7. Lighting lamps: LED Lights ect.

Tag:

Contact Person: Miss. aaa

Tel: 86 755 8546321

Fax: 86-10-66557788-2345
