Flexible PCB Board

Introduction：

Flex PCBs, also known as flexible printed circuits or flexible electronics, provide greater options for designers and engineers when assembling electronic circuits.

They are constructed from flexible, high-performance plastic material, usually polyimide, which enables the board to bend or "flex" during use. This flexibility opens them up to use in a wide range of applications.

PCB Design And Fabrication 10 Layer Bga Tg170 Gold Finger Hole Size 0.2mm

Large Image : PCB Design And Fabrication 10 Layer Bga Tg170 Gold Finger Hole Size 0.2mm

Product Details:

Place of Origin:	China
Brand Name:	ChiTunPCB
Certification:	UL/ISO/ROHS/SGS
Model Number:	CTEL1010200

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	base on gerberfiles
Packaging Details:	Vacuum package and export standard corton
Delivery Time:	10-30days
Payment Terms:	TT, LC, Western Union, D/A,, D/P,and others base on negotiation
Supply Ability:	50000 per week

Contact Now

Detailed Product Description

Material:	FR4 TG170	Board Thickness:	2.4mm
Copper:	1oz	Surface Finish:	Lead Free HASL + Gold Finger
Solder Mask:	Green	Sillkscreen:	White
Finish:	Routing	Standard:	IPC Stardard
Highlight:	quick turn pcb assembly , quick turn pcb fabrication

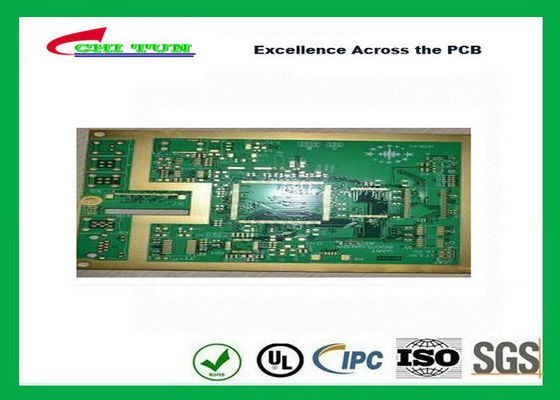

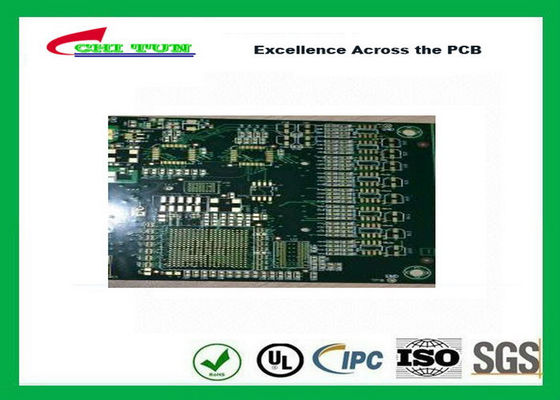

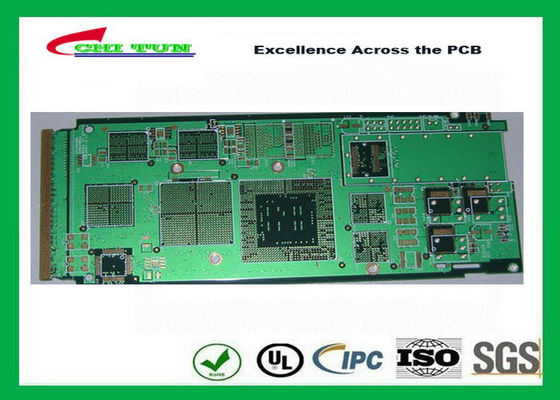

PCB Design And Fabrication 10 Layer Bga Tg170 Gold Finger Hole Size 0.2mm

	Product Description
Model Number:	CTEL1010200
Number of Layer:	10Layer
Material:	FR4 tg170
Finish Thickness:	2.4mm
copper:	1oz
PCB Size :	55*109mm
Line Width/line space	10/8mil
Min.Hole size :	0.2mm
Surface finish :	Gold finger
	Green solder mask
	White sillkscreen
Place of Origin:	China
Brand Name:	ChiTun
Certification:	UL,ROHS,ISO
Standard:	IPC standard

TECHNOLOGY:

. RoHS/ Lead Free

. HDI Microvias

. Blind Vias

. Buried Vias

. Selective Plating

. Impedance Control

Manufacturing Standard:

. IPC-A-600G Class II

. IPC-A-600G Class III

. PERFAG 2E for Double-Sided Board

. PERFAG 3C for Multilayer Board

Capability

Min. Finished Holes Size: 0.008" (0.20mm)

Micro vias diameter: 0.004 TO 0.010 inches (0.10 - 0.25mm)

Minimum line width/spacing: 0.004/0.004 inches (0.10mm/ 0.10mm)

Maximum copper thickness: 5oz (140um)

Thin board thickness:

. DS - 0.008 inches (0.20mm)

. 4/L - 0.016 (0.40mm)

. 6/L - 0.020 inches (0.60mm)

Maximum board thickness:

. 275.8mil (7.0mm)

Surface treatment:

. HASL/lead free HAL/gold plating

. Immersion gold

. Immersion tin

. Immersion silver

. Gold fingers (hard gold)

. OSP
