Flexible PCB Board

  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers





Introduction:



Flex PCBs, also known as flexible printed circuits or flexible electronics, provide greater options for designers and engineers when assembling electronic circuits.

They are constructed from flexible, high-performance plastic material, usually polyimide, which enables the board to bend or "flex" during use. This flexibility opens them up to use in a wide range of applications.

Custom Circuit Boards Rigid-Flexible PCB Production Type Immersion Gold PCB

Custom Circuit Boards Rigid-Flexible PCB Production Type  Immersion Gold PCB
Custom Circuit Boards Rigid-Flexible PCB Production Type  Immersion Gold PCB

Large Image :  Custom Circuit Boards Rigid-Flexible PCB Production Type Immersion Gold PCB

Product Details:

Place of Origin: China
Brand Name: CHITUN
Certification: UL,ROHS,ISO
Model Number: base on customer spec.

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Vacuum package
Delivery Time: quick turn and normal type
Payment Terms: TT, LC, Western Union, D/A,, D/P,and others base on negotiation
Supply Ability: 2, 000, 000PCS/week
Detailed Product Description
Material: FR4,PI Board Thickness: Polyimide Starting At 62µm Dual-sided, FR4 Starting At 100µm
SOlder Mask: Yellow Finished: Immersion Gold
Standard: IPC Standard
High Light:

rigid-Flex circuit boards

,

pcb board making

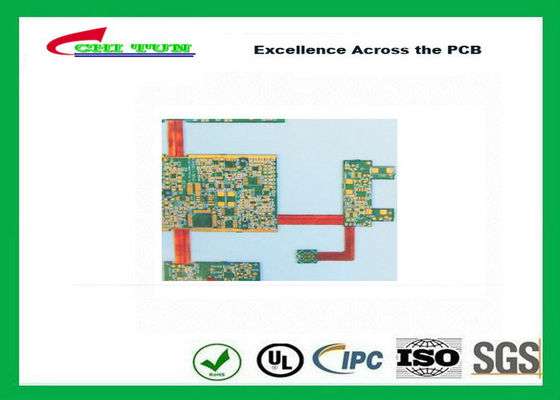

Custom Circuit Boards Rigid-Flexible PCB Production Type  Immersion Gold PCB



  Rigid-Flex circuit boards are composed of a combination of rigid and flexible circuit boards that are permanently connected to one another.



The proper application of Rigid-Flex circuit boards offers optimum solutions for difficult, limited space conditions. This technology offers the possibility of a secure connection of device components with the assurance of polarity and contact stability, as well as a reduction in plug and connector components.

Additional advantages of Rigid-Flex circuit boards are dynamic and mechanical stability, the resulting 3-dimensional freedom of design, simplified installation, space savings, and maintenance of uniform electrical characteristics.

Use of Rigid-Flex circuit boards can reduce the total cost of the final product.

A standardized manufacturing process following IPC guidelines guarantees a reliable and simultaneously an economical product, which is UL certified (UL94 / V-0); application of the UL logo is available at no extra cost.

Depending on the application, the complete Rigid-Flex circuit board may be manufactured either symmetrically with inward flexible layers, or asymmetrically with outward flexible layers (see Layer buildup for Rigid-Flex circuit boards).

We recommend the IPC-2223 Guidelines to circuit board designers for flexible circuit boards. This is available (at cost) from the website of the IPC (www.ipc.org).
