Rigid Flex PCB

  • High Precision Rigid Flex PCB suppliers
  • High Precision Rigid Flex PCB suppliers

Introduction


Rigid flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.

Rigid flex designs are more challenging than the design of a typical rigid board environment, as these boards are designed in a 3D space, which also offers greater spatial efficiency. By being able to design in three dimensions rigid flex designers can twist, fold and roll the flexible board substrates to achieve their desired shape for the final application's package.





Production Process


Whether producing a rigid flex prototype or production quantities requiring large scale rigid flex PCB fabrication and PCB assembly, the technology is well proven and reliable. The flex PCB portion is particularly good in overcoming space and weight issues with spatial degrees of freedom.

Careful consideration of flex-rigid solutions and a proper assessment of the available options at the early stages in the rigid flex PCB design phase will return significant benefits. It is critical the rigid flex PCB fabricator is involved early in the design process to ensure the design and fab portions are both in coordination and to account for final product variations.

The rigid flex manufacturing phase is also more complex and time consuming than rigid board fabrication. All the flexible components of the rigid flex assembly have completely different handling, etching and soldering processes than rigid FR4 boards.






Applications


Rigid flexible PCBs offer a wide array of applications, ranging from military weaponry and aerospace systems to cell phones and digital cameras. Increasingly, rigid flex board fabrication has been used in medical devices such as pacemakers for their space and weight reduction capabilities. The same advantages for rigid flex PCB usage can be applied to military weaponry and weapon control systems.

In consumer products, rigid flex doesn't just maximize space and weight but greatly improves reliability, eliminating many needs for solder joints and delicate, fragile wiring that are prone to connection issues. These are just some examples, but rigid flex PCBs can be used to benefit nearly all advanced electrical applications including testing equipment, tools and automobiles. Not sure what technology needs to be used for your project? Call our experts and we can help you figure out whether you need rigid flex, flex or HDI PCB technology.

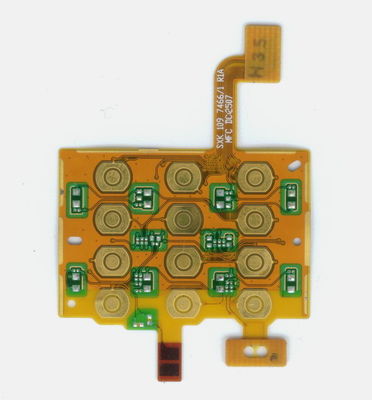

Double Sided 2 oz Copper PCB Rigid Flex Circuit Board With Yellow Solder Mask

Double Sided 2 oz Copper PCB Rigid Flex Circuit Board With Yellow Solder Mask
Double Sided 2 oz Copper PCB Rigid Flex Circuit Board With Yellow Solder Mask

Large Image :  Double Sided 2 oz Copper PCB Rigid Flex Circuit Board With Yellow Solder Mask

Product Details:

Place of Origin: China
Brand Name: HUASWIN
Certification: ISO/UL/RoHS
Model Number: HSRFPC1003

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Anti-static bag + Anti-static bubble wrap + Good quality carton box
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10,000pcs per month
Detailed Product Description
High Light:

Rigid Flex Board

,

Rigid Flexible PCB



Yellow Double Sided 2 oz Copper PCB Rigid Flex Circuit Board Fabrication




Detailed Specification of Flexible PCB Manufacturing


Technical  Specification

Layers:

1~10 (flex Pcb)  and 2~8 (rigid flex)



Min Panel Size:

5mm x 8mm



Max Panel Size:

250 x 520mm



Min Finished board thickness:

0.05mm (1 sided inclusive copper)



Max Finished board thickness:

0.3mm (2 sided inclusive copper)



Finished board thickness tolerance:

±0.02~0.03mm



Material:

Kapton, Polyimide, PET



Base copper thickness (RA or ED):

1/3 oz, 1/2 oz, 1oz, 2oz



Base PI thickness:

0.5mil, 0.7mil, 0.8mil, 1mil, 2mil



Stiffner:

Polyimide, PET, FR4, SUS



Min Finished hole diameter:

Φ 0.15mm



Max Finished hole diameter:

Φ 6.30mm



Finished hole diameter tolerance (PTH):

±2 mil ( ±0.050mm)



Finished hole diameter tolerance (NPTH):

±1 mil ( ±0.025mm)



Min width/spacing (1/3oz):

0.05mm/0.06mm



Min width/spacing (1/2oz):

0.06mm/0.07mm



Min width/spacing (1oz):

Single layer: 0.07mm/0.08mm



Double layer: 0.08mm/0.09mm



Aspect Ratio

6:01

8:01

Base Copper

1/3Oz--2Oz

3 Oz for Prototype

Size Tolerance

Conductor Width:±10%

W ≤0.5mm

Hole Size: ±0.05mm

H ≤1.5mm

Hole Registration: ±0.050mm



Outline Tolerance:±0.075mm

L ≤50mm

Surface Treatment

ENIG: 0.025um - 3um



OSP:



Immersion Tin: 0.04-1.5um



Dielectric Strength

AC500V



Solder Float

288℃/10s

IPC Standard

Peeling Strength

1.0kgf/cm

IPC-TM-650

Flammability

94V-O

UL94



Quotation Requirement :

1) Following specifications are needed for quotation:
a) Base material
b) Board thickness:
c) Copper thickness
d) Surface treatment:
e) color of solder mask and silkscreen:
f) Quantity


Shiping method:

1) By DHL, Fedex, UPS, TNT etc.
2) By sea if it is possible
3) By air
