Rigid Flex PCB

  • High Precision Rigid Flex PCB suppliers
  • High Precision Rigid Flex PCB suppliers

Introduction


Rigid flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.

Rigid flex designs are more challenging than the design of a typical rigid board environment, as these boards are designed in a 3D space, which also offers greater spatial efficiency. By being able to design in three dimensions rigid flex designers can twist, fold and roll the flexible board substrates to achieve their desired shape for the final application's package.





Production Process


Whether producing a rigid flex prototype or production quantities requiring large scale rigid flex PCB fabrication and PCB assembly, the technology is well proven and reliable. The flex PCB portion is particularly good in overcoming space and weight issues with spatial degrees of freedom.

Careful consideration of flex-rigid solutions and a proper assessment of the available options at the early stages in the rigid flex PCB design phase will return significant benefits. It is critical the rigid flex PCB fabricator is involved early in the design process to ensure the design and fab portions are both in coordination and to account for final product variations.

The rigid flex manufacturing phase is also more complex and time consuming than rigid board fabrication. All the flexible components of the rigid flex assembly have completely different handling, etching and soldering processes than rigid FR4 boards.






Applications


Rigid flexible PCBs offer a wide array of applications, ranging from military weaponry and aerospace systems to cell phones and digital cameras. Increasingly, rigid flex board fabrication has been used in medical devices such as pacemakers for their space and weight reduction capabilities. The same advantages for rigid flex PCB usage can be applied to military weaponry and weapon control systems.

In consumer products, rigid flex doesn't just maximize space and weight but greatly improves reliability, eliminating many needs for solder joints and delicate, fragile wiring that are prone to connection issues. These are just some examples, but rigid flex PCBs can be used to benefit nearly all advanced electrical applications including testing equipment, tools and automobiles. Not sure what technology needs to be used for your project? Call our experts and we can help you figure out whether you need rigid flex, flex or HDI PCB technology.

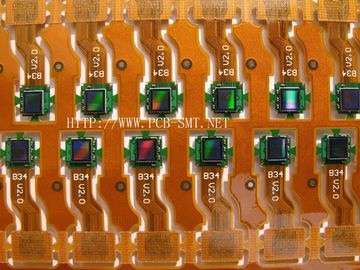

Double Sided Flexible Printed Circuit Board Manufacturers FR-4 Rigid Flex PCB

Double Sided Flexible Printed Circuit  Board Manufacturers FR-4 Rigid Flex PCB
Double Sided Flexible Printed Circuit  Board Manufacturers FR-4 Rigid Flex PCB

Large Image :  Double Sided Flexible Printed Circuit Board Manufacturers FR-4 Rigid Flex PCB

Product Details:

Place of Origin: China
Brand Name: HD-PCB
Certification: UL,ISO9001,TS16949.
Model Number: Flexible printed circuit-4

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ
Price: Negotiation
Packaging Details: Packed in antistatic bag
Detailed Product Description
High Light:

flexible printed circuit boards

,

flexible pcb board





Double Sided Flexible Printed Circuit  Board Manufacturers FR-4 Rigid Flex PCB




Quick Details


PCB Type:

Flexible Printed Circuit

Layer :

 2 layer

Min .Line Width/Space:

3mil/3mil

Min. Via Diameter:

0.3mm

Finish Thickness:

0.1mm

Surface Finish:

ENIG

Size:

60*100MM

Material:

PI

Color:

Gold

Application:

Mobile



Description


Shenzhen Hengda Electronics is a leading manufacturer of precision Flexible Printed Circuit (FPC) for customers worldwide. We specialize in quick-turn FPC prototypes to FPC mass productions, provide high quality and cost effective turn key solutions to our customers.

Double Sided Flexible Printed Circuit  Board Manufacturers FR-4 Rigid Flex PCB



This table lists the standard flex circuits materials and material thicknesses that we may have daily available. If  the material or thickness you require is not listed, consult us. We have full specification of each material available for your required.

FPC Materials


Material Function

Material Type

Options

Flexible Insulator

Polyimide(PI)

1/2 mil to 5 mil

Conductor

Copper
 *Rolled Annealed(RA)  *Electrodeposited(ED)

1/4 oz(0.009mm)                                 to 10 oz(0.356mm)

Rigid Substrate  (Rigid-Flex)

FR-4

3 mil to 125 mil

Adhesive

Acrylic Adhesive

1/2 mil to 3 mil

Adhesiveless Material also available

Stiffener

FR-4                               Polyimide(PI)               Polyester(PET)             Adhesivetape   Steel/Aluminum/Copper

3mil to 125 mil                                     1/2 mil to 5mil                                     1 mil to 15mil                                        6 mil

Solder Mask

Polyimide(PI)                   Photoimageable Coverlay  Liquid Photoimageable Covercoat

1/2 mil to 5 mil                                     1 mil to 2.5 mil Liquid Typically for surface mount and dense applications

Surface Finish Options

Tin

Immersion Tin

Gold

Electrolytic Nickel Immersion Gold     Electrolytic Hard Nickel /Gold       Electrolytic Soft Nickel/Gold

Silver

Immersion Silver

OSP

OSP

Shielding

 Solid  Copper          Crosshatched Copper  Conductive Silver Aluminum

Required To Limited Electromagnetic and/or Electrostatic




FPC Standard Structure

Double Sided Flexible Printed Circuit  Board Manufacturers FR-4 Rigid Flex PCB


Technical Capabilities


Layer (Max)

Up to 8 Layers

Board Size (Max)

500*1000mm

Outer tolerance

a+/-0.2mm Hand Trim
b+/-0.25mm steel Rule Dies
c+/-0.07mm Punch and Dies
d+/-0.025 Laser Cut

Hole

Diameter(Min)

0.1mm(Finished)



Diameter Tolerance

a.Plating Through Holes+/-0.08mm  b.Non-Plating Through Holes+/-0.05mm



Drill Position Tolerance

+/-0.076mm

Conductor

Width Tolerance

+/-15%

Spacing(Min)

2mil

Spacing Tolerance

+/-15%

Pad

Pad(Non-Wiring)

>=0.04mm+ Hole

Pad(Wiring)

>=0.3mm+Hole

Coverlay

Coverlay to Pad(Min)

100um

Coverlay to Conductor (Min)

100um

Coverlay Width(Min)

250um

Stiffener holes

>=0.25mm+Access hole




FPC Application

Double Sided Flexible Printed Circuit  Board Manufacturers FR-4 Rigid Flex PCB



Testing Procedures

We perform multiple quality assurance procedures before shipping out any PCB board. These include:

  • Visual Inspection
  • Flying probe
  • Bed of nails
  • Impedance control
  • Solder-ability detection
  • Digital metallograghic microscope
  • AOI (Automated Optical Inspection)


Quick turn lead times

For HDI PCB production, we can provid 7 to10 days turn around times. For multilayer PCBs, the fastestturnaround time depends on the number of layers and quantity.

Service Guarantee

We make sure to serve each customer professionally, truthfully and friendly to the best of our ability.   We will gladly re-work your project if your project isn’t 100% satisfactory.


Get a quick quote now

By sending in a bill of material, gerber files including assembly drawing and we will have a quotation back to you within hours. With Shenzhen hengda there is never a hidden cost and our prices are very competitive and reasonable.
