Introduction:
Focus on the most basic of PCB, components focused on one side, the other side of the wire is concentrated.Because wires only appear on one side, so this kind of PCB is called single sided PCB.
Single panel wiring diagram is given priority to with the network printing, that is, in the copper surface printed on resistance agent, to prevent welding resistance after etching printed on mark, and then punching processing way to complete the parts guide hole and the appearance.In addition, part of a small amount of diverse products, are using photosensitive resistance agent forming pattern of the photographic method.
Operating temperatures range from 130 C to 230 C. Single sided boards are available with surface finishes including Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).
Material:
Single sided PCB base material in paper phenolic copper paper laminated board, epoxy resin copper laminated plate is given priority to.
Structure:
First, the copper foil to be etched, etc. Process to obtain a circuit required, a protective film to be drilled to expose the corresponding pad. After cleaning and then rolling method to combine the two. Then the pad portion exposed gold plating or tin protection.
Production Process:
Single copper-clad plate - blanking - photochemical method/screen printing image transfer - remove corrosion was printed - cleaning, dry - hole machining - shape - dry cleaning - printing resistance welding coating - cure - printing mark symbol - cure - dry cleaning drying - pre coated flux - a finished product
Application
Single sided PCB most use in the radio, heating machine, cold storage, washing machines and other electrical appliances product, as well as the printer, vending machines, LED lighting, electronic components, such as commercial machine circuit
Product Details:
Payment & Shipping Terms:
|
Material: | FR4 | Board Thickness: | 1.6mm |
---|---|---|---|
Finish Copper: | 1OZ | SOlder Mask: | Green |
Surface Finish: | Lead Free HASL | Finish: | CNC/V-CUT |
Standard: | IPC Standard | ||
High Light: | single sided circuit board,pcb single sided |

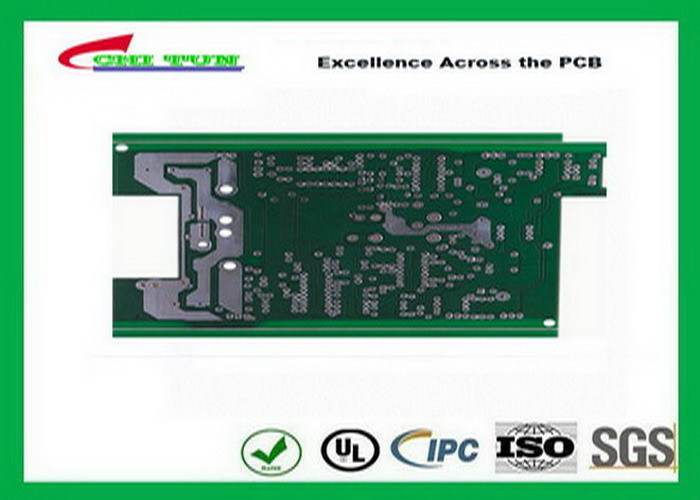

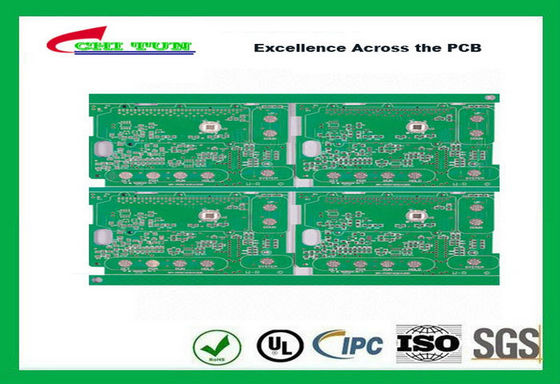

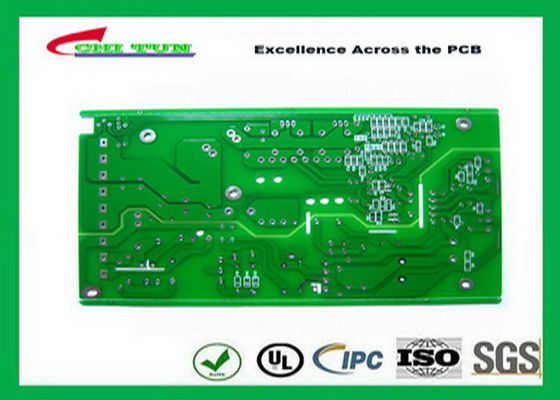

Lead Free Single Sided PCB , One Layer PCB Board Surface Finish Hasl
Advantage:
FQA:
Q: 1. Can I have a sample ?
A: Yes, we can send you our sample to check our quality
Q: 2. What is the lead time?
A: Sample needs 1-3 days, mass production needs 7-10 days, also according to the order volume
Q 3. Do you have any MOQ limit?
A: Our MOQ is 1pcs
Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q: 5. what file we should offer?
A: Making PCB should offer gerber file (protel ,power pcb,PADs file), PCBA should offer gerber file and BOM list.
Q: 6. We want to visit your company?
A: No problem, we are a production and processing enterprises, look forward to your arrival and we will lead you to visit our factory and processing factory.
