Introduction：
Focus on the most basic of PCB, components focused on one side, the other side of the wire is concentrated.Because wires only appear on one side, so this kind of PCB is called single sided PCB.
Single panel wiring diagram is given priority to with the network printing, that is, in the copper surface printed on resistance agent, to prevent welding resistance after etching printed on mark, and then punching processing way to complete the parts guide hole and the appearance.In addition, part of a small amount of diverse products, are using photosensitive resistance agent forming pattern of the photographic method.
Operating temperatures range from 130 C to 230 C. Single sided boards are available with surface finishes including Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).
Material：
Single sided PCB base material in paper phenolic copper paper laminated board, epoxy resin copper laminated plate is given priority to.
Structure：
First, the copper foil to be etched, etc. Process to obtain a circuit required, a protective film to be drilled to expose the corresponding pad. After cleaning and then rolling method to combine the two. Then the pad portion exposed gold plating or tin protection.
Production Process：
Single copper-clad plate - blanking - photochemical method/screen printing image transfer - remove corrosion was printed - cleaning, dry - hole machining - shape - dry cleaning - printing resistance welding coating - cure - printing mark symbol - cure - dry cleaning drying - pre coated flux - a finished product
Application
Single sided PCB most use in the radio, heating machine, cold storage, washing machines and other electrical appliances product, as well as the printer, vending machines, LED lighting, electronic components, such as commercial machine circuit
Product Details:
Payment & Shipping Terms:
|
| Material: | Polymide | Surface Plating: | ENIG |
|---|---|---|---|
| Layer: | 1 Layer | Thickness: | 0.1mm |
| High Light: | Flexible Pcb Board,Pcb Custom |
||

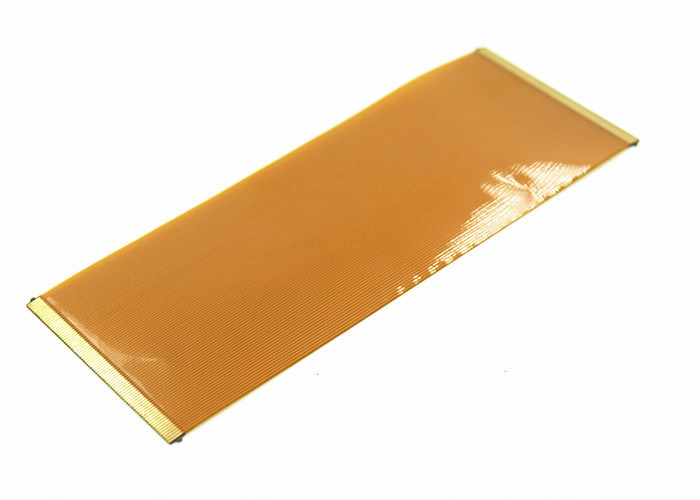

OEM Single Sided PCB Flexible Printed Circuit Board Gold Plating Finish
A single sided flexible printed circuit (FPC)construction with a polyimide cover film laminated to copper allowing access from one side only. One single conductive layer, either bonded between two insulating lamination or uncovered on one side.
Our capability for FLEXIBLE PCB:
|
Item |
Description | Common | Special |
| 1 | NO. OF Layer | 1--6 | |
| 2 | FINISHED BOARD SIZE(MAX) | 250*500mm | OK |
| 3 | FINISHED BOARD SIZE(MIN) | 10*15mm | OK |
| 4 | BOARD THICKNESS(MAX) | 0.016"(0.4mm) | OK |
| 5 | BOARD THICKNESS(MIN) | 0.00328"(0.085) | OK |
| 6 | FINISHED BOARD THICKNESS FOLERANCE 0.085mm≦Board Thickness＜0.4mm | ±2mil(±0.05mm) | OK |
| 7 | DRILL HOLE DIAMETER(MAX) | 0.236"(6.0mm) | OK |
| 8 | DRILL HOLE DIAMETER(MIN) | 0.010"(0.25mm) | OK |
| 9 | For Machine Drill FINISHED VIA DIAMETER(MIN) | 0.008"(0.2mm) | OK |
| 10 | OUTER LAYER BASE COPPER THICKNESS(MIN) | 1/2OZ(0.01778mm) | OK |
| 11 | OUTER LAYER BASE COPPER THICKNESS(MAX) | 1OZ(0.0355mm) | OK |
| 12 | INNER LAYER DIELECTRIC THICKNESS(MIN) | 0,0127mm(1/2mil) | OK |
| 13 | INNER LAYER DIELECTRIC THICKNESS(MAX) | 0.0254mm(1mil) | OK |
| 14 | BASE.MATERIAL | PI(260℃ TG) | OK |
| 15 | HOLE DIAMETER TOLERANCE(PTH) | ±2mil(±0.05mm) | ±1.5mil |
| 16 | HOLE DIAMETER TOLERANCE(NPTH) | ±1mil(±0.025mm) | ±1.5mil |
| 17 | HOLE POSITION TOLERANCE (COMPARED WITH CAD DATA) | ±3mil(±0.076mm) | OK |
| 18 | PTH HOLE COPPER THICKNESS | ≧0.5mil(≧0.0125mm) | OK |
| 19 | LAVER DESIGN LINE WIDTH/SPACING(MIN) | 4mil/4mil(0.1016mm/0.1016mm)Multilayer 2.5mil/2.5mil(0.0635mm/0.06 35mm)Double side,single layer 0.5OZ | OK |
| 20 | TOLERANCE AFTER ETCHING | ≦±20%(common) | ±10% for impedance |
| 21 | IMAGE TO IMAGE TOLERANCE(MIN) | ±5mil(±0.127mm) ±4mil | ±3mil(0.076mm) |
| 22 | IMAGE TO EDGE TOLERANCE(MIN) | ±4mil(±0.1mm) | OK |
| 23 | LEGEND MASK REGISTARTION(MIN) | ±6mil(±0.15mm) | OK |
| 24 | SOLDERMASK REGISTARTION(MIN) | ±6mil(±0.15mm) | OK |
| 25 | SOLDERMASK THICKNESS(MIN) | 10UM | OK |
| 26 | CVL REFISTRATION(MIN) | 8mil(4mil) | OK |
| 27 | CVLL Pressure and glue quantity (MIN) | 5.6mil(2.4mil) | OK |
| 28 | SOLDER TIN LEAD THICKNESS ON FINGER OR PAD.(MAX) (MIN)AND TOLEARANCE THICKNESS | (1.0mil)(0.1mil) ±0.30mil | ±0.15mil |
| 29 | GOLD FINGER NICKEL THICKNESS(MAX) | 200u"±100u" | OK |
| 30 | SOLDER THICKNESS ON PADS(HAL)(MIN) | 0.1mil | OK |
| 31 | NICKEL THICKNESS FOR ELECTROLESS NICKEL AND INMERSION GOLD(MEASLRED AT THE MINTMUM POINT)(MAX) | 200u"±50u"/1-4u" | OK |
| 32 | SOLDER THICKNESS ON PADS (HAL)(MAX) | 1.2mil | OK |
| 33 | SOLDERTHICKNESS ON PADS (HAL)(MIN) | 0.1mil | OK |
| 34 | PUNCHING HOLE (MIN-MAX)DIAMETER TOLERANCE | 0.5-6.0mm±0.05mm | OK |
| 35 | THE TOLERANCE OF PASTEING ADHESIVE AND STIFFER | ±0.20mm | ±0.10mil |
| 36 | PUNCHING DIE DIMENSION TOLERANCE (EDGE TO EDGE)(STEELDIE)Steel Die | ±4mil(±0.1mm) | ±2mil |
| 37 | PUNCHING DIE DIMENSION TOLERANCE (HOLE TO EDGE)(STEELDIE)Steel Die | ±4mil(±0.1mm) | ±2mil |
| 38 | PUNCHING DIE DIMENSION TOLERANCE (HOLE TO EDGE)(STEELDIE)cutting die | ±8mil(±0.2mm) |
±6mil |
