| Measuring Accuracy: | 50μm | Resolution: | 21 Lp / Mm |
|---|---|---|---|
| Efficiency: | 1～3PCS/min | Radiation Leak: | ≤0.5μSV/h |
| High Light: | circuit board testing equipment,PCB Test Equipment |
||

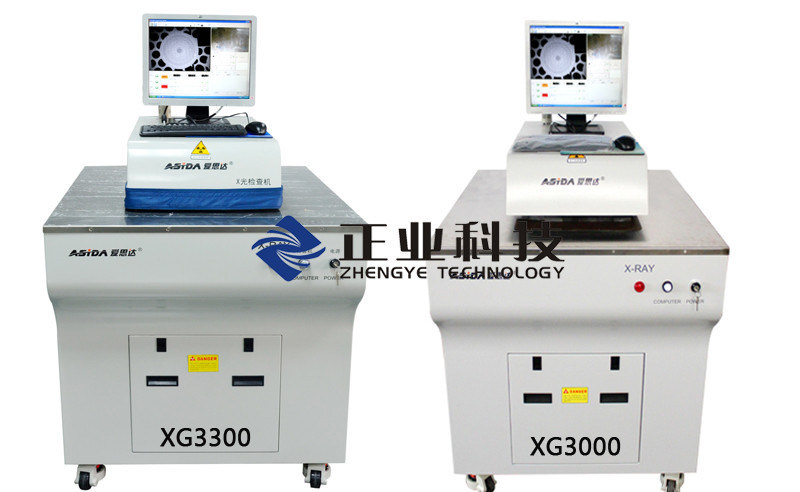

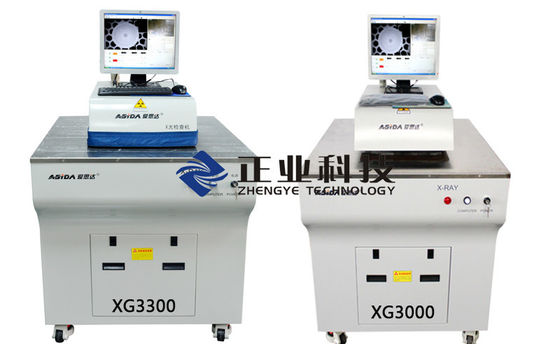

High Voltage Multi Layer PCB Testing Machine / X-ray Inspection Equipment
Product Attributes :
|
Product name |
X-ray Inspection Machine |
|
Brand Name: |
ASIDA |
|
Model Number: |
XG3000 |
|
Place of Origin: |
China |
|
Packaging Details: |
Wooden Carton |
USAGE

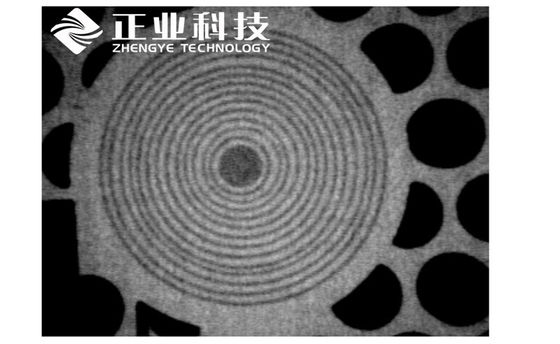

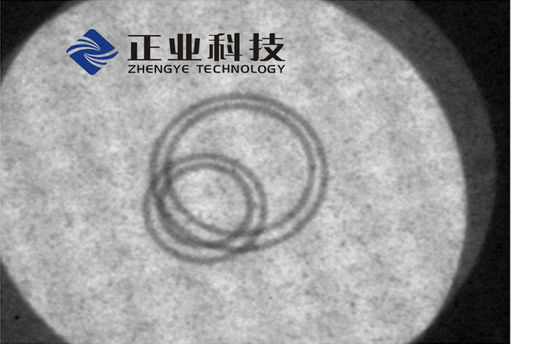

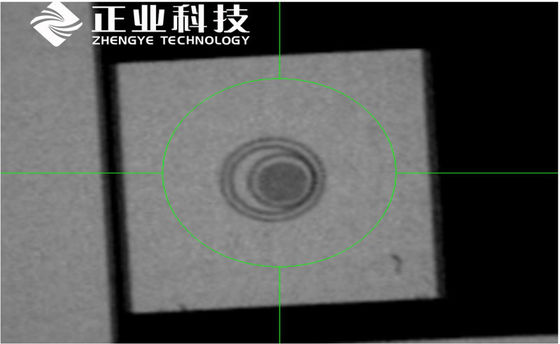

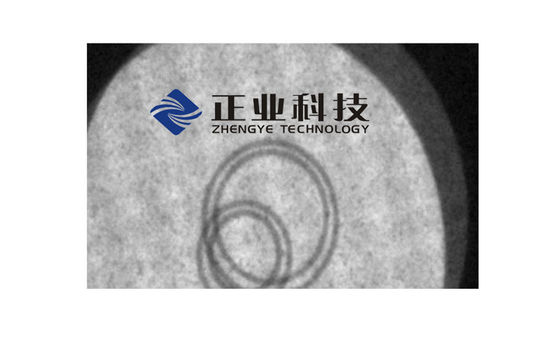

Observe and measure positioning holes on the PCB, to check whether the holes
between layers are deviated, a variety of conditional measurement can be
conducted on the images, including the distance from the center of a circle to
another, from one point to another, circle area, etc., and make judgement pre-set
parameters.
STANDARD-COMPLIANT
JB/T5054, JB/T5055-2001 mechanical design Standard
EN13861-2002 ergonomic requirements;
GB19517-2004 electrical safety requirements;
GB18871-2002 Ionizing Radiation Protection and safety
of radiation sources basic standards;
IPC-A-600G board Acceptable quality specifications requirements.
X-ray Inspection Machine Features
1, Precision :
① Adopting sealed micro focus X-ray tube and high-quality imaging system;
② Take a variety of image processing and measuring techniques.
2, Efficient:Real-time observation, visual navigation and positioning.
3, Safety:Taking Triple protection technology (sealed micro focus X-ray tube, semi-enclosed lead protective
structure and double-lead rubber protective curtain).
X-ray Inspection Machine Client:
|
ITEM |
XG3000 |
XG3300 |
|
|
Accuracy |
① Measuring accuracy |
50μm |
|
|
② Resolution |
21 lp/mm |
||
|
③ observation target exactly |
|||
|
Efficiency |
1～3PCS/min |
||
|
Object |
≤26 layers of PCB |
≤22 layers of PCB |
|
|
Radiation leak |
≤0.5μSV/h |
||
|
Dimensions |
1040*855*1510mm |
||
|
Weight |
130Kg |
||
