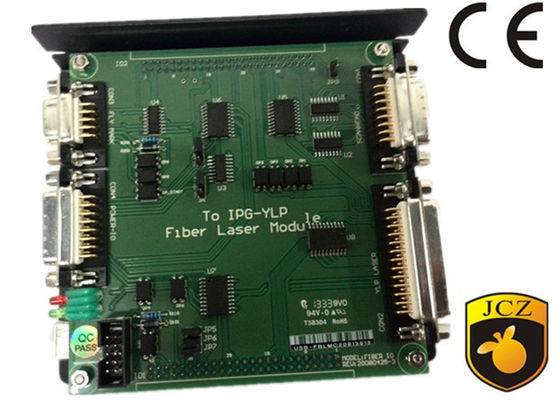

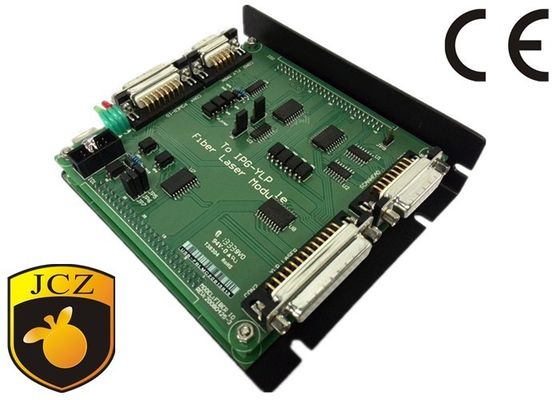

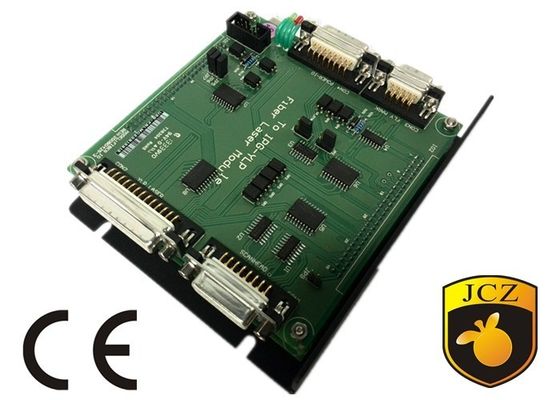

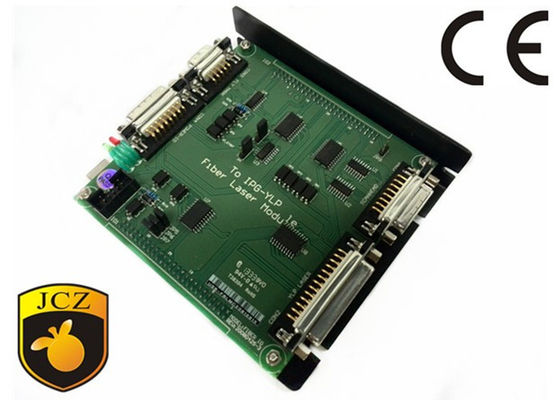

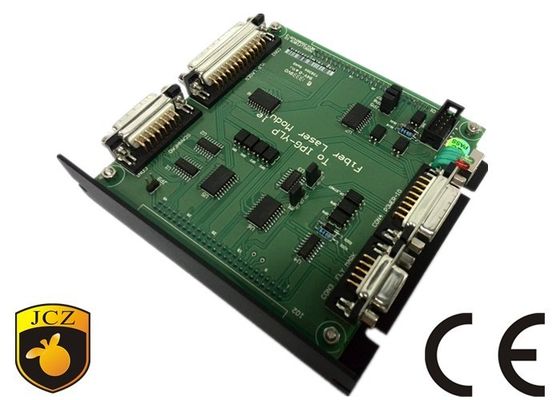

USB Double Layer IPG Laser Motion Control Card PCB Board for Metal or Glass

Large Image : USB Double Layer IPG Laser Motion Control Card PCB Board for Metal or Glass

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JCZ
Model Number:	USB-FBLMC

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD700-900/set
Packaging Details:	carton
Delivery Time:	1 day
Payment Terms:	T/T western Union
Supply Ability:	1000 set/month

Contact Now

Detailed Product Description

Highlight:

laser marking systems

co2 laser driver

USB Double layer Industrial ipg Laser control card for Metal glass

Quick Detail:

Fiber laser control card can control whole type fiber laser machine for laser marking and laser engraving .The software EZCAD Support CO2,YAG,IPG,SPI laser, adjusting currents, frequency, duty ratio in software

Description:

Use 25-pins DB25 socket,connect IPG YLP and YLPM laser module via 25-pin cable directly.
Adjustable digital/analog output used for scan head.
Mark-on-fly function with an encoder connected.
Extend axes output:Direction/pulse signals,used to control stepping motor or servomotor.
25 routes general digital signals(TTL compatible), 4 of the IO ports can be OC IO, can connect with relay.
Original start signal:Used when marking contents are the same and high speed is required. Compatible with USB2.0

Applications:

Laser Marking
Laser Engraving
Rapid prototyping
Drilling circuit board via holes
Cutting cloth
Cutting paper

Specifications:

FEATURE

DB 25 connector is used on the board to connect with fiber laser module directly

Output digital signals for digital scan head.

Mark-on-fly

Support single machine with multi-card.One computer work with 2 pieces of USBLMC card and marking different content.

Extend axis output:Two Dierction/pulse signals,used to control stepping motor or servomotor for rotary marking and split marking.

8 routes general input signal.(TTL compatible)/8 routes general output signal.

USB2.0 Compatible

CARD PARAMETER

Electrical Parameter

Power supply parameters: DC5V/3A

Connector: USB connector/DB connector

Signal: 16 routes general digital signal.(TTL compatible)

Mechanical parameters

Storage temperature: -20℃ ~ + 60 ℃

Working temperature:25℃ ± 10℃

ACCESSORIES
DB9 male/female sockets	USB cable (1.5m)
DB15 male/female sockets	DB25 cable (1.5m)
DB25 male/female sockets	D/A board, CD

USB Double Layer IPG Laser Motion Control Card PCB Board for Metal or Glass

Competitive Advantage:

Good quality ,work stable ,famous software EZCAD.

Tag:

Contact Person: Miss. aaa

Tel: 86 755 8546321

Fax: 86-10-66557788-2345
