Material
FR4 fiberglass panels, aluminum plate, copper substrate, iron substrate, PTFE, F4B, F4BM, Kangtai Li, CER-10, Rogers, FPC soft board and some other high-precision plate.
Crafts
Light copper, nickel, gold, tin spray; Immersion Gold, antioxidant, HASL, immersion tin, etc.
Double Layer PCB Leadfree HASL with blue solder mask
- Leadfree HASL Surface finish required to meet ROHS compliant
-FR-4 material with 0.25mm-6mm boards thickness
-Copper weight:1/3OZ,0.5OZ,1OZ,2OZ,3OZ,4OZ,5OZ,6OZ
-3-3mils min track width & spacing -0.2mm min finished hole size
-Certificate: UL,ISO14001,TS16949 and ROHS
-Company management: ISO9001
-Markets: Europe, America, Asia,etc.
Application
electronic products, like
computer peripherals,aerospace,telecommunication,automotives,medicaldevices,camermas,optoelectronic devices,VCD,LCD and verious other comsumer electronic products.
Product Details:
Payment & Shipping Terms:
|
| High Light: | single membrane switch,waterproof toggle switch |
||
|---|---|---|---|

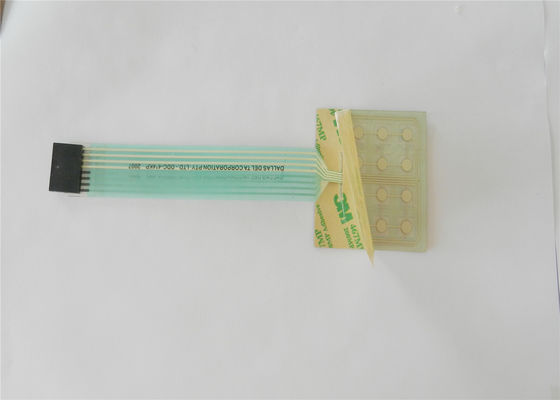

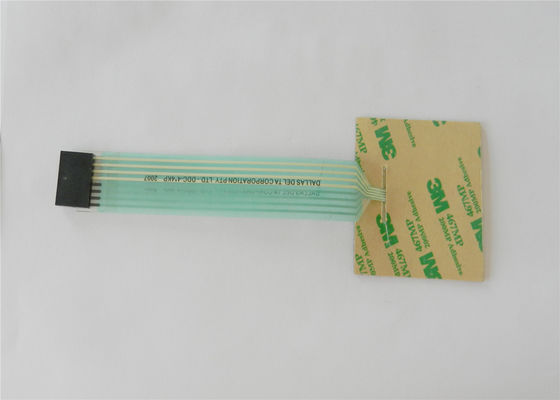

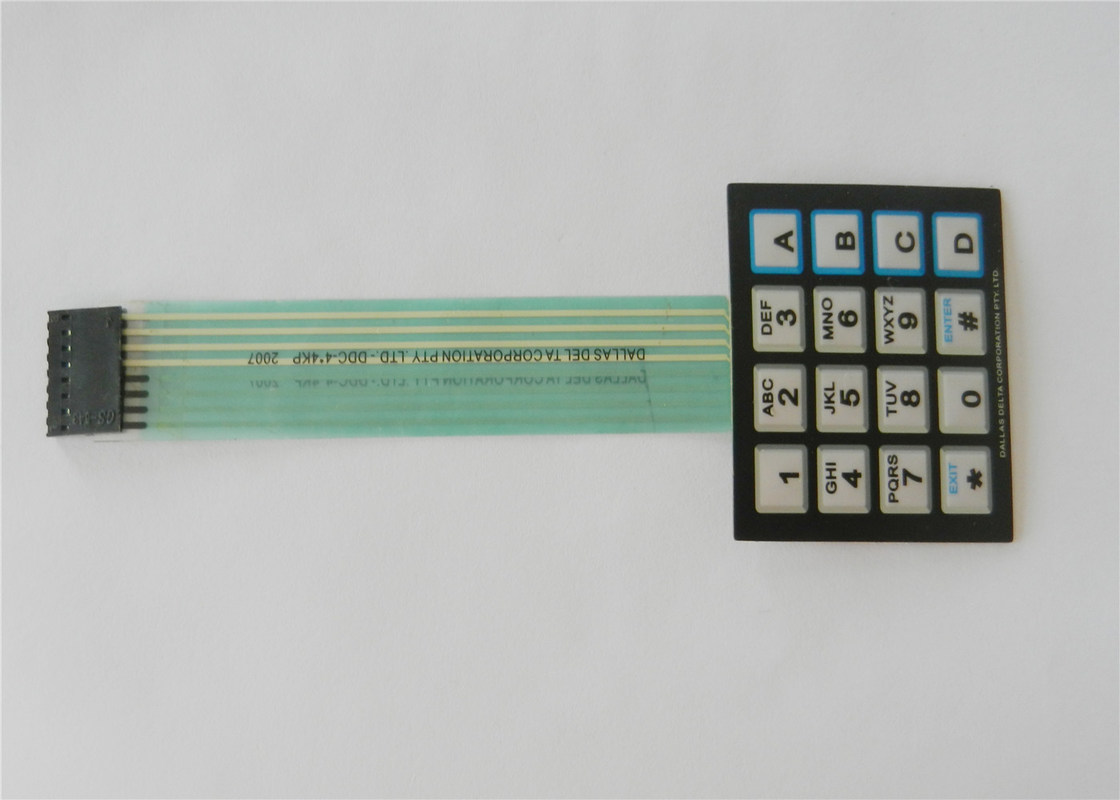

PET / PCB / FPC Touch Panel Flexible Membrane Switch With LED
Quick Detail:
> Total thickness : 1.0 mm
> Surface : mate glossy texture
> Window : glossy mate texture
> Graphic overlay material : 0.15 mm texture PET 0.188 glossy PET 0.2 mm texture PET 0.175 texture PC 0.125 texture PC 0.25 Texture PC 0.3 mm PVC 0.5 mm PVC
> Circuit material : PET PCB FPC
> Rear adhesive : national adhesive nitto 9605 3M 9080 3M 467 3M 9075 3M 9448 3M 468
> Button style : embossed flat
> Circuit keypad style : embossed flat
> LED window style : embossed flat
> Layer 1 : 0.188 PET
> Layer 2 : adhesive DT 6100
> Layer 3 : 0.125 mm top circuit
> Layer 4 : 0.125 bottom circuit
> Layer 5 : national rear adhesive
> Window : glossy
> Pitch : 2.54 mm
> Button : flat
> Led light : 4
> Led style : single color
> Led Style : double color
> Conductive side : top
> Single color led : yellow green blue white red
> Double color Led :
> LED window : mate texture glossy
> LED window embossed : yes no
> LED window : transparent color coated transparent color washed
> Operating condition : 40°c,90%~95%,for 240 hours
> Life span : 300 million times
Description:
> Surface : glossy
> Overlay button : flat
> Color : 4
> Led window : without
> Circuit crossing : yes
> Conductive side :top side conductive
> Tolerance:0.05 mm
> Water proof class : IP 67
> Connector : without
> Matching color: Pantone and RAL color matching system.
Applications:
1. A. For measuring device, such as analytic instrument, nautical intrument , medical equipment and so on
B. For mechanical and electrical products such as CNC machine electric weighing ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .
C. For OS office system , such as telephone set ,fax machine, copy cat ,counter and so on
3. Note:
Metal dome’s feet can’t be folded 90 degree toward its top when use , it will reduce the life span of metal dome
Specifications
|
1. Electrical |
||
|
Maximum Circuit Rating: 35V(DC),100mA,1W |
35V DC,100mA,1W |
|
|
Contact Resistance: 10Ω~ 500Ω (Varies from the trace length and material) |
10Ω~500Ω |
|
|
Insulation Resistance: 100MΩ 100V |
100MΩ at 100V DC |
|
|
Dielectric: 250 Vrms (50~60Hz 1min) |
250V Rms(50-60Hz 1min) |
|
|
Contact Bounce: < 5ms |
5ms or less |
|
|
Life: Flat: ≥ 5million times |
||
|
Tactile: ≥ 1 million times Duraswitch: ≥ 10million times |
Flat type 60g~300g(2~10OZ) |
|
|
Tactile type 150g~400g(6~14OZ) |
||
|
2. Mechanical |
Flat type 0.1~0.5mm |
|
|
Tactile type 0.6~1.5mm |
||
|
Actuation Force: Flat: 57~284g(2~10oz) Tactile: 170~397g(6~14oz) |
Flat type Five million closures or more Tactile type one million closures or more |
|
|
Switch Height: Flat: 0.1~0.5mm |
||
|
Tactile: 0.6~1.5mm |
-40°c~+80°c |
|
Why to choose Shenzhen boerzhuo membrane switches?
1. No need to worry about the qualities (We take response if our reason lead failure ).
2. Any products in our factory are did life span test ,circuit test ,every step is in good quality control ,we insist on ,quality is depend on the making step not the QC workers ..
3. We are specialized ,can help to design and make good suggestion .
4. Except membrane switch and touch screen, we can also do different types of assembly, such as membrane switch and touch screen with FPC, PCB ,silicone rubber ,metal backer ,plastic bezel and so on.
5. We can accept small quantity order and offer competitive price.
6. Strict quality inspection ,100 % function testing ,and we can also do specified testing ,such as humility testing ,life expectancy testing ,actuation force testing.
A: What’s the lead time for sample and mass order ?
B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..
A: How long is your quality guarantee period
B: in usually,3 months.
A:Great, TKS. Do it.
