Prototype PCB Boards

  • High Precision Prototype PCB Boards suppliers
  • High Precision Prototype PCB Boards suppliers





Material Type:


 FR4,non-halogen material ,Aluminum Base, Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180

Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger




Application


PCBs are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries.





FAQ


What are the available holes sizes?


14 mils to 150 mils - 1 mil increments
150 mils to 200 mils - 5 mil increments
above 200 mils - holes would be routed out
We only use drills in imperial units. Files submitted in metric units (mm)  would be converted to imperial units (mils) and rounded up to the next mil.



I am used to designing in metric units while the website is specified in imperial units. Is there a conversion chart I can refer to ?


When requesting an online quote, the quote form can handle mm units as well as inches for dimensions.



How do I specify internal cutouts/milling in my design?


All internal cutouts/slots/milling should be specified on the same layer is the board outline. The the minimum routable slot size is 32 mils. During order time, please state this requirement in the "Special Request" section so that our CAM engineers is aware of it. This is not something we encounter often - so there are chances we may overlook it. Make sure it's known to us.

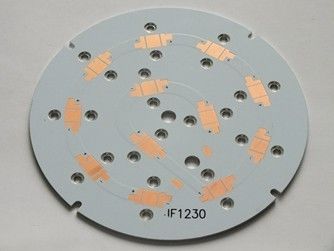

2 Layer FR-4 Metal Core Aluminum PCB Prototype Board Rigid Plate

2 Layer FR-4 Metal Core Aluminum PCB  Prototype Board Rigid Plate
2 Layer FR-4 Metal Core Aluminum PCB  Prototype Board Rigid Plate

Large Image :  2 Layer FR-4 Metal Core Aluminum PCB Prototype Board Rigid Plate

Product Details:

Place of Origin: China
Brand Name: SYF
Certification: UL,ISO9001:2008,ROHS,REACH, HALOGEN FREE,SGS
Model Number: SYF-142

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: INNER VACCUM-PACKED WITH OUTER CARDBOARD CARTON
Delivery Time: 6-8 DAYS
Payment Terms: O/A,D/P,L/C,T/T,PAYPAL, WEST UNION
Supply Ability: 1 MILLION PIECES PER MONTH
Characteristic Service: ODM/OEM/PCBA
Features 1: Gerber file needed
Features 2: 100% E-test
Features 3: Quality guarantee and professional after-sale service
Detailed Product Description
High Light:

prototype printed circuit boards

,

fast pcb prototype

2 Layer FR-4 Metal Core Aluminum PCB  Prototype Board Rigid Plate





Details:



1. One of the largest and professional PCB (Printed Circuit Board) manufacturers  in China with over 500 staff and 20 years’experience.

2. All kinds of surface finish is accepted,such as ENIG,OSP.Immersion Silver,  Immersion Tin, Immersion Gold, Lead-free HASL,HAL.

3. BGA,Blind&Buried Via and Impedance Control is accepted.

4. Advanced production equipment imported from Japan and Germany,such as PCB Lamination Machine, CNC drilling machine,Auto-PTH line,AOI(Automatic Optic Inspection),Probe Flying Machine and so on.

5. Certifications of ISO9001:2008,UL,CE,ROHS,REACH,HALOGEN-FREE is meet.

6. One of the professional SMT/BGA/DIP/PCB Assembly manufacturers in China  with 20 years’experience.

7. High speed advanced SMT lines to reach chip +0.1mm on integrated circuit parts.

8. All kinds of integrated circuits is available,such as SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA.

9. Also available for 0201 chip placement, through-hole components insertion and finished products fabrication, testing and package.

10. SMD assembly and through-hole components insertion is accepted.

11. IC preprogramming is also accepted.

12. Available for Function verification and burn in testing.

13. Service for complete unit assembly,for example,plastics, metal box, coil, cable inside .

14. Environmental conformal coating to protect finished PCBA products.

15. Providing Engineering service as end of life components, obsolete component replace and design support for circuit, metal and plastic enclosure.

16. Functional testing,repairs and inspection of the sub-finished and finished goods.

17. High mixed with low volume order is welcomed.

18. Products before delivery should be full quality checked, striving to 100% perfect.

19. One-stop service of PCB and SMT(PCB assembly) is supplied to our customers.

20. Best service with punctual delivery is always provided for our customers.





PRODUCT’S DETAILS

Raw Material

FR-4(Tg 180)

Layer Count

2-Layer

Board Thickness

2.0mm

Copper Thickness

2.0oz

Surface Finish

ENIG

Solder Mask

Green

Silkscreen

White

Min. Trace Width/Spacing

0.075/0.075mm

Min. Hole Size

0.25mm

Hole Wall Copper Thickness

≥20μm

Measurement

300×400mm

Packaging

Inner: Vacuum-packed in soft plastic bales
Outer: Cardboard Cartons with double straps

Application

Communication,automobile,cell,computer,medical

Advantage

Competitive Price,Fast Delivery,OEM&ODM,Free Samples,

Special Requirements

Buried And Blind Via, Impedance Control, Via Plug,
BGA Soldering And Gold Finger Are Acceptable

Certification

UL,ISO9001:2008,ROHS,REACH,SGS,HALOGEN-FREE







PRODUCTION CAPABILITY OF PCB


PROCESS Engineer

ITEMS Item


 PRODUCTION CAPABILITY Manufacturing Capability

Laminate

Type

FR-1,FR-5,FR-4 High-Tg,ROGERS,ISOLA,ITEQ,
ALUMINUM,CEM-1,CEM-3,TACONIC,ARLON,TEFLON

Thickness

0.2~3.2mm

Production Type

    Layer Count

2L-16L

Surface Treatment

 HAL,Gold Plating,Immersion Gold,OSP,
Immersion Silver,Immersion Tin,Lead Free HAL

 Cut Lamination

Max. Working Panel size

 1000×1200mm

 Inner Layer

 Internal Core Thickness

0.1~2.0mm

 Internal width/spacing

Min: 4/4mil

 Internal Copper Thickness

1.0~3.0oz

 Dimension

Board Thickness Tolerance

±10%

 Interlayer Alignment

±3mil

Drilling

 Manufacture Panel Size

Max: 650×560mm

 Drilling Diameter

≧0.25mm

 Hole Diameter Tolerance

±0.05mm

 Hole Position Tolerance

±0.076mm

 Min.Annular Ring

0.05mm

PTH+Panel Plating

 Hole Wall copper Thickness

≧20um

 Uniformity

≧90%

 Outer Layer

 Track Width

Min: 0.08mm

Track Spacing

Min: 0.08mm

 Pattern Plating

 Finished Copper Thickness

1oz~3oz

EING/Flash Gold

 Nickel Thickness

2.5um~5.0um

 Gold Thickness

0.03~0.05um

Solder Mask

Thickness

15~35um

 Solder Mask Bridge

3mil

 Legend

 Line width/Line spacing

6/6mil

 Gold Finger

 Nickel Thickness

≧120u〞

 Gold Thickness

1~50u〞

 Hot Air Level

 Tin Thickness

100~300u〞

 Routing

 Tolerance of Dimension

±0.1mm

 Slot Size

Min:0.4mm

Cutter Diameter

0.8~2.4mm

 Punching

 Outline Tolerance

±0.1mm

Slot Size

Min:0.5mm

V-CUT

 V-CUT Dimension

Min:60mm

 Angle

15°30°45°

 Remain Thickness Tolerance

±0.1mm

Beveling

Beveling Dimension

30~300mm

Test

Testing Voltage

250V

Max.Dimension

540×400mm

Impedance Control


    Tolerance



±10%

Aspect Ration

12:1

Laser Drilling Size

4mil(0.1mm)

Special Requirements

Buried And Blind Via, Impedance Control, Via Plug,
BGA Soldering and Gold Finger Are Acceptable

OEM&ODM Service

Yes
