Quick Turn Prototype PCB Board Multi Layer Punching Green 16 Layer HAL / ENIG

PCB Certifications
Good quality Flexible PCB Board
Good quality Flexible PCB Board
Customer Reviews
The board quality is very good! We have been WonDa’s customer for more than 4 years. Your good service and quality is too good.

—— Jay

Cooperation is very satisfactory and the Company of the past few years, we are very willing to continue long-term cooperation.

—— Rob

The board quality is very good! I’m surprised with the low cost and quick delivery. It is totally out of my expectation. I will definitely come back.

—— Victoria, Australia

I'm Online Chat Now

Prototype PCB Boards

  • High Precision Prototype PCB Boards suppliers
  • High Precision Prototype PCB Boards suppliers





Material Type:


 FR4,non-halogen material ,Aluminum Base, Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180

Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger




Application


PCBs are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries.





FAQ


What are the available holes sizes?


14 mils to 150 mils - 1 mil increments
150 mils to 200 mils - 5 mil increments
above 200 mils - holes would be routed out
We only use drills in imperial units. Files submitted in metric units (mm)  would be converted to imperial units (mils) and rounded up to the next mil.



I am used to designing in metric units while the website is specified in imperial units. Is there a conversion chart I can refer to ?


When requesting an online quote, the quote form can handle mm units as well as inches for dimensions.



How do I specify internal cutouts/milling in my design?


All internal cutouts/slots/milling should be specified on the same layer is the board outline. The the minimum routable slot size is 32 mils. During order time, please state this requirement in the "Special Request" section so that our CAM engineers is aware of it. This is not something we encounter often - so there are chances we may overlook it. Make sure it's known to us.

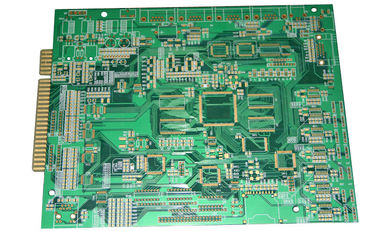

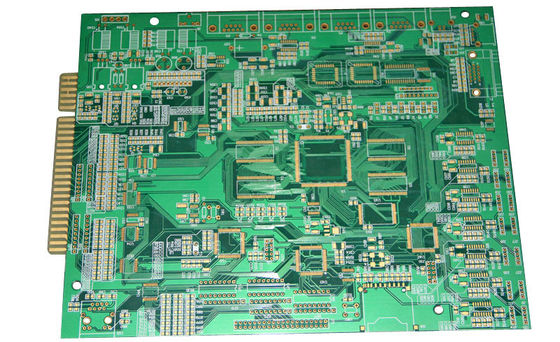

Quick Turn Prototype PCB Board Multi Layer Punching Green 16 Layer HAL / ENIG

Quick Turn Prototype PCB Board Multi Layer Punching Green 16 Layer HAL / ENIG
Quick Turn Prototype PCB Board Multi Layer Punching Green 16 Layer HAL / ENIG

Large Image :  Quick Turn Prototype PCB Board Multi Layer Punching Green 16 Layer HAL / ENIG

Product Details:

Place of Origin: China
Brand Name: SYF
Certification: UL,ISO9001:2008,ROHS,REACH,HALOGEN FREE,SGS
Model Number: SYF-003

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: NEGOTIATION
Packaging Details: INNER VACCUM-PACKED WITH CARDBOARD CARTON
Delivery Time: 5-8 DAYS
Payment Terms: T/T,L/C,D/P,O/A,WEST UNION,PAYPAL
Supply Ability: 2 MILLION PCS PER MONTH
Detailed Product Description
Material: FR4/FR1/FR2/CEM-1/CEM-2/ Metal Core Solder Mask: Green/Yellow/Red/Black
Quality: 100% E-TEST Service: PCB, PCBA, OEM, ODM
Surface Finish: HASL, OSP, ENIG, HAL, Immersion Tin, Immersion Silver
Highlight:

prototype printed circuit boards

,

fast pcb prototype



Quick Turn Prototype PCB Board Multi Layer Punching Green 16 Layer HAL / ENIG



Description:

  1. Best service with quick response is always provided for our customers.
  2. Certifications of ISO9001:2008,UL,CE,ROHS,REACH,HALOGEN-FREE is meet.
  3. Advanced  production equipment imported from Japan and Germany,such as                                          PCB Lamination Machine, CNC drilling machine,Auto-PTH line,                                   AOI(Automatic Optic Inspection),Probe Flying Machine and so on.
  4. Quality guarantee and professional after-sale service.
  5. BGA,Blind&Buried Vias and Impedence Control is accepted.

 PRODUCT’S DETAILS

 Raw Material

 FR-4 (Tg 180 available)

 Layer Count

 8-Layer

 Board Thickness

 1.6mm

 Copper Thickness

 2.0oz

 Surface Finish

 ENIG(Electroless Nickel Immersion Gold)

 Solder Mask

 Green

 Silkscreen

 White

 Min. Trace Width/Spacing

 0.075/0.075mm

 Min. Hole Size

 0.25mm

 Hole Wall Copper Thickness

 ≥20μm

 Measurement

 300×400mm

 Packaging

 Inner: Vacuum-packed in soft plastic bales
 Outer: Cardboard Cartons with double straps

 Application

 Communication,automobile,cell,computer,medical

 Advantage

 Competitive Price,Fast Delivery,OEM&ODM,Free Samples,

 Special Requirements

 Buried And Blind Via, Impedance Control, Via Plug,
 BGA Soldering And Gold Finger Are Acceptable

 Certification

 UL,ISO9001:2008,ROHS,REACH,SGS,HALOGEN-FREE




 PRODUCTION CAPABILITY OF PCB

 Process Engineering

 Items

 Manufacturing Capability

 Laminate

 Thickness

 0.2~3.2mm

 Production Type

 Layer Count

 2L-16L

 Cut Lamination

 Max. Working Panel size

 1000×1200mm

 Inner Layer

 Internal Core Thickness

 0.1~2.0mm

 Internal width/spacing

 Min: 4/4mil

 Internal Copper Thickness

 1.0~3.0oz

 Dimension

 Board Thickness Tolerance

 ±10%

 Interlayer Alignment

 ±3mil

 Drilling

 Manufacture Panel Size

 Max: 650×560mm

 Drilling Diameter

 ≧0.25mm

 Hole Diameter Tolerance

 ±0.05mm

 Hole Position Tolerance

 ±0.076mm

 Min.Annular Ring

 0.05mm

 PTH+Panel Plating

 Hole Wall copper Thickness

 ≧20um

 Uniformity

 ≧90%

 Outer Layer

 Track Width

 Min: 0.08mm

 Track Spacing

 Min: 0.08mm

 Pattern Plating

 Finished Copper Thickness

 1oz~3oz

 EING/Flash Gold

 Nickel Thickness

 2.5um~5.0um

 Gold Thickness

 0.03~0.05um

 Solder Mask

 Thickness

 15~35um

 Solder Mask Bridge

 3mil

 Legend

 Line width/Line spacing

 6/6mil

 Gold Finger

 Nickel Thickness

 ≧120u〞

 Gold Thickness

 1~50u〞

 Hot Air Level

 Tin Thickness

 100~300u〞

 Routing

 Tolerance of Dimension

 ±0.1mm

 Slot Size

 Min:0.4mm

 Cutter Diameter

 0.8~2.4mm

 Punching

 Outline Tolerance

 ±0.1mm

 Slot Size

 Min:0.5mm

 V-CUT

 V-CUT Dimension

 Min:60mm

 Angle

 15°30°45°

 Remain Thickness Tolerance

 ±0.1mm

 Beveling

 Beveling Dimension

 30~300mm

 Test

 Testing Voltage

 250V

 Max.Dimension

 540×400mm

 Impedance Control

 Tolerance

 ±10%

 Aspect Ration

 12:1

 Laser Drilling Size

 4mil(0.1mm)
