Prototype PCB Boards

Material Type:

FR4,non-halogen material ,Aluminum Base, Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180

Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger

Application

PCBs are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries.

FAQ

What are the available holes sizes?

14 mils to 150 mils - 1 mil increments
150 mils to 200 mils - 5 mil increments
above 200 mils - holes would be routed out
We only use drills in imperial units. Files submitted in metric units (mm) would be converted to imperial units (mils) and rounded up to the next mil.

I am used to designing in metric units while the website is specified in imperial units. Is there a conversion chart I can refer to ?

When requesting an online quote, the quote form can handle mm units as well as inches for dimensions.

How do I specify internal cutouts/milling in my design?

All internal cutouts/slots/milling should be specified on the same layer is the board outline. The the minimum routable slot size is 32 mils. During order time, please state this requirement in the "Special Request" section so that our CAM engineers is aware of it. This is not something we encounter often - so there are chances we may overlook it. Make sure it's known to us.

Proto Type Expansion Board Proto Shield For Arduino Mega 2560

Large Image : Proto Type Expansion Board Proto Shield For Arduino Mega 2560

Product Details:

Place of Origin:	Guangdong China (Mainland)
Brand Name:	Oky Newstar
Model Number:	MEGA ProtoShield V3

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece/Pieces
Packaging Details:	15cm x 10cm x 3cm
Delivery Time:	3-5 workdays after payment
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 Piece/Pieces per Day

Contact Now

Detailed Product Description

Size:

10.5cm X 5.6cm

The Shield:

Compatible With Arduino Mega ATmega1280 / MEGA2560

The Shield:

Can Be Inserted Directly With The Arduino MEGA 2560/1280

Components:

Soldered Directly To The Board

Highlight:

Shields for Arduino

arduino sensors kit

Proto Type Expansion Board Proto Shield For Arduino Mega 2560

MEGA Proto Shield V3 proto type expansion board for mega 2560

Quick Detail:

You can plug it directly into an Arduino MEGA with no soldering required.

Allows soldering of components directly on to the shield

Comes with mini breadboard which can be fixed directly onto the shield allowing for solderless prototyping.

Integrated power indicator, status lights and reset button

Description:

· Compatible with Arduino Mega ATmega1280 / MEGA2560;

· Size:10.5cm x 5.6cm;

· SOP28 SMD component package to be more handy Arduino electronics enthusiasts will not be directly insert bound components;

· Arduino MEGA / MEGA2560 ProtoShield prototype expansion board with Immersion Gold PCB processing technology;

Specifications:

Arduino MEGA ProtoShield V3 expansion board motherboard is golden square pad and pin pitch is small, welding components more convenient; with SOP28 SMD component package, more convenient to use. This board can be inserted directly with the Arduino MEGA 2560/1280, Components soldered directly to the board, complete a variety of prototype circuit, you can also paste the Mini breadboard,Complete a variety of circuit experiment with cables.Onboard power indicator and status lights, and reset button.

The Product Image

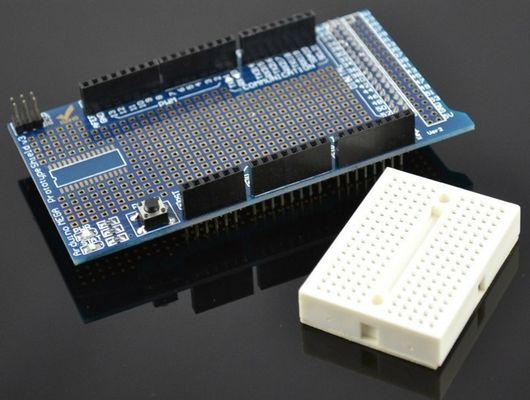

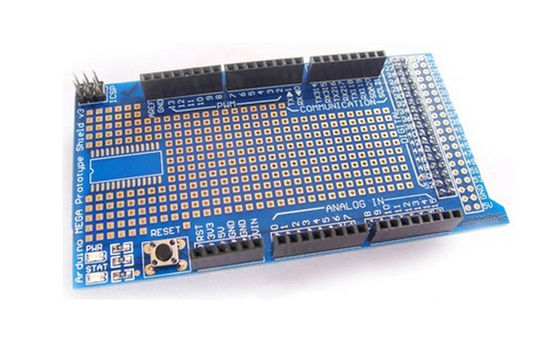

Proto Type Expansion Board Proto Shield For Arduino Mega 2560

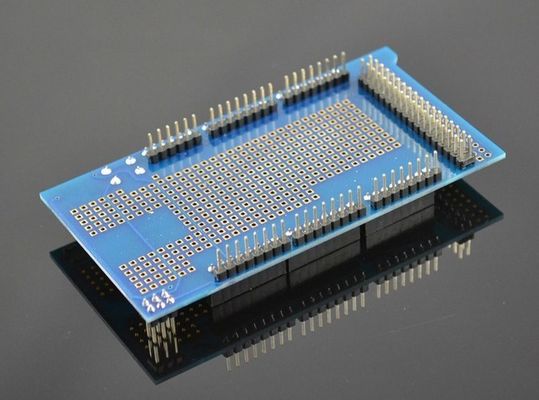

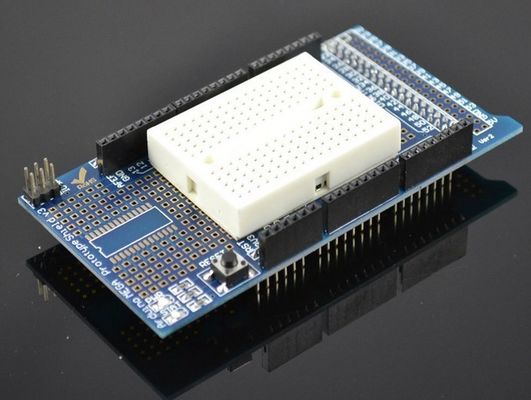

Proto Type Expansion Board Proto Shield For Arduino Mega 2560
