Prototype PCB Boards

Material Type:

FR4,non-halogen material ,Aluminum Base, Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180

Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger

Application

PCBs are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries.

FAQ

What are the available holes sizes?

14 mils to 150 mils - 1 mil increments
150 mils to 200 mils - 5 mil increments
above 200 mils - holes would be routed out
We only use drills in imperial units. Files submitted in metric units (mm) would be converted to imperial units (mils) and rounded up to the next mil.

I am used to designing in metric units while the website is specified in imperial units. Is there a conversion chart I can refer to ?

When requesting an online quote, the quote form can handle mm units as well as inches for dimensions.

How do I specify internal cutouts/milling in my design?

All internal cutouts/slots/milling should be specified on the same layer is the board outline. The the minimum routable slot size is 32 mils. During order time, please state this requirement in the "Special Request" section so that our CAM engineers is aware of it. This is not something we encounter often - so there are chances we may overlook it. Make sure it's known to us.

V-Cut PCB Prototype Machine 0.3mm - 3.5mm With Part Count Capacity

Name: V-Cut PCB Prototype Machine 0.3mm - 3.5mm With Part Count Capacity
Brand: chuangwei pcb depanelizer
SKU: CWVC-200
Price: 2500 USD
Availability: InStock
Rating: 4.7 (109 reviews)

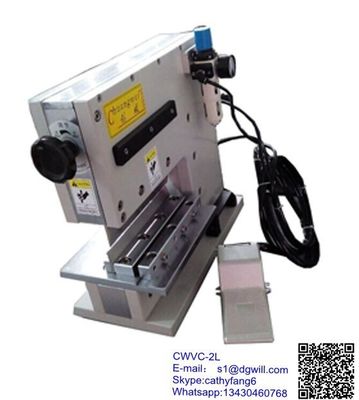

Large Image : V-Cut PCB Prototype Machine 0.3mm - 3.5mm With Part Count Capacity

Product Details:

Place of Origin:	China
Brand Name:	chuangwei pcb depanelizer
Certification:	CE and GMC
Model Number:	CWVC-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	plywooden case
Delivery Time:	within 3 days after receive the payment
Payment Terms:	L/C, T/T, Western Union , paypal , credite card
Supply Ability:	1000 sets / year

Contact Now

Detailed Product Description

MOQ:	1 Set	Separation Length:	200 Mm
Package:	Plywooden Case	Shipping Way:	EXW / FOB
Separation Thickness:	0.3-3.5 Mm	Payment Term:	T/T ,Paypal , Credit Card , Cash
Highlight:	PCB assembly , PCB assembly equipment

V-Cut PCB Prototype Machine 0.3mm - 3.5mm With Part Count Capacity

Ideal for thick PCBs
Can be used with aluminum , FR4, CEM3 and other substrates
Keeping pace with mid-to-large volume production
Panelized flexible or ultra-thin PCBs
Densely populated PCBs with components located too close to the score line for standard depanelers to handle
Aluminum and metalized substrates (in addition to FR4 , CEM3 , etc . )
PCBs are separated by the CWVC-200 dual wedge-shaped knives in one gentle rocking motion that shears the panel along the score line , without stress or damage to the PCBs or components . Even when metalized circuit boards are processed – such as those populated with heat-generating LEDs that require heat-dissipating metal inner layers – this machine will easily make the cut .

Fetures :

Separates boards up to 2.0 mm thick ( with minimum 0.5 mm scoring depth )
Can be used with aluminum , FR4 , CEM3 and other substrates , including substrates with metal inner layers
Separates PCBs with components located up to 0.5 mm from the score line
Safe for use with flexible and thin PCBs
Smooth , quiet pneumatic-powered unit with foot-pedal activation
Wedge-shaped linear blades contour to v-groove score lines and operate in a rocking motion
Boards are separated without bending or breaking
No safety risks to operator since there is never a gap greater than 4 mm between the upper and lower blades
Adjust blades to PCB score line using rotary knob

Specifications :

Model	CWVC-200
Max separation length	200 mm
machine Size	620230400mm
cutting thickness	0.3-3.5mm
Machine weight	165kg
