Hard Drive PCB

  • High Precision Hard Drive PCB suppliers
  • High Precision Hard Drive PCB suppliers



Service Details:

1) Fast PCB with in 12 hours, 24 hours and 48 hours are available.
2) No MOQ for PCB ,PCBA ,FPC and Alu pcb.
3) Boards are RoHS compliant with UL.
4) Engineers with over 10 years of working experience can offer you professional suggestions.
5) Factory production Capability of 15000 sqm/month.
6) Quality inspection standard: IPC-6012 Class II.
7) Base material: FR4, Hi-tg FR4, Aluminum, High frequency (Rogers, Taconic, F4B, Arlon etc.), PI, PET.



Our Advantages (why us ?):


1) Every board is to IPC Class II or higher standard.
2) All boards are UL approved and made in ISO-9001 certified facilities.
3) 100% tested (flying probe or E-test).
4) PCB Design Rule Check with no extra cost.
5) Impedence control test.
6) Free panelizing.
7) Special price/service package for partners.
8) Professional engineering support. We work with customers closely to ensure the boards are standards compliant.
9) On time delivery.
10) No minimum/maximum order.
11) Worldwide shipping.




What are the available holes sizes?

14 mils to 150 mils - 1 mil increments
150 mils to 200 mils - 5 mil increments
above 200 mils - holes would be routed out
We only use drills in imperial units. Files submitted in metric units (mm)  would be converted to imperial units (mils) and rounded up to the next mil.


I am used to designing in metric units while the website is specified in imperial units. Is there a conversion chart I can refer to ?

When requesting an online quote, the quote form can handle mm units as well as inches for dimensions.


How do I specify internal cutouts/milling in my design?

All internal cutouts/slots/milling should be specified on the same layer is the board outline. The the minimum routable slot size is 32 mils. During order time, please state this requirement in the "Special Request" section so that our CAM engineers is aware of it. This is not something we encounter often - so there are chances we may overlook it. Make sure it's known to us.

Ul Rohs Hasl Fr4 94v0 Laser PCB Depaneling Machine with Water Cooling

Ul Rohs Hasl Fr4 94v0 Laser PCB Depaneling Machine with Water Cooling
Ul Rohs Hasl Fr4 94v0 Laser PCB Depaneling Machine with Water Cooling Ul Rohs Hasl Fr4 94v0 Laser PCB Depaneling Machine with Water Cooling

Large Image :  Ul Rohs Hasl Fr4 94v0 Laser PCB Depaneling Machine with Water Cooling

Product Details:

Place of Origin: china
Brand Name: YUSH
Certification: CE
Model Number: YSATM-4C

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Get Latest Price
Packaging Details: Standard packaging
Supply Ability: 30 Piece/Pieces per Month industrial wet and dry vacuum
Detailed Product Description
Application:: Laser Cutting Condition:: New
Laser Type:: CO2 Applicable Material:: Acrylic, Crytal, Glass, Leather, MDF, Metal
Cutting Thickness:: 5-20MM Cutting Area:: 500MM*300MM
Cutting Speed:: 60000mm/min CNC Or Not:: Yes
Cooling Mode:: Water Cooling Control Software:: Genuine Laser Software
After-sales Service Provided:: Engineers Available To Service Machinery Overseas Maximum Output Power:: 500W
Laser Wavelength:: 1064NM Pulse Frequency:: 1--300HZ
Minimum Line Width:: 0.15mm Maximum Groove Depth:: 0.2-6(mm)
Maximum Speed Line Cutting:: 55(mm/s) Positioning Accuracy:: ≤±0.08/1000(mm)
Fast Forward Speed:: 40(mm/min)
High Light:

PCB depaneling equipment


PCB depanelizer

Ul Rohs Hasl Fr4 94v0 Laser PCB Depaneling Machine with Water Cooling

Laser Machine

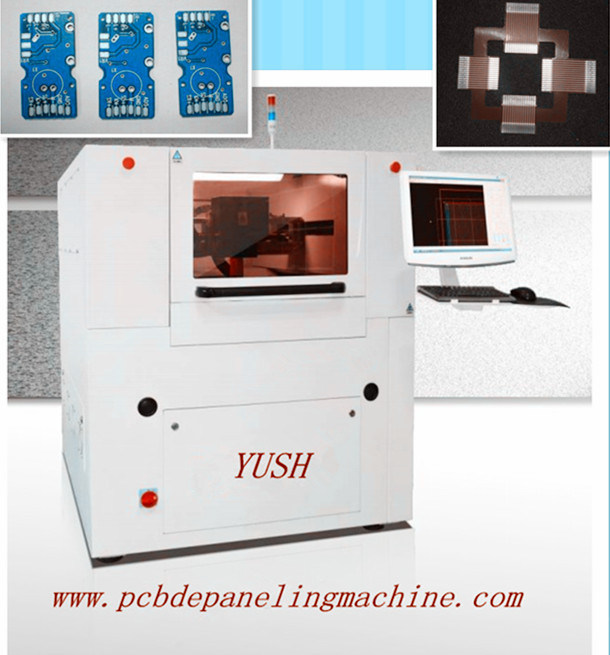

Yu Shun Technology brand is a positive instrument brands. Yu Shun FPC ultraviolet laser cutting machine, FPC laser cutting machine is mainly used CVL, FPC, RF, and thin plywood cut to shape. Technology has been committed to being the PCB industry equipment R & D and production, the company

The FPC laser cutting machines, by the majority of customers.

FPC UV laser cutting machine, FPC laser cutting machine use:

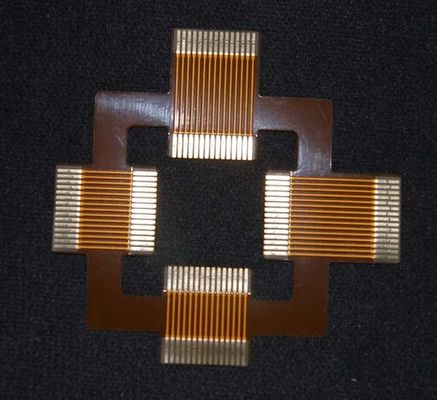

Available for flexible circuit boards and organic coating for precision cutting without mold or protective plate fixation. By using a laser source of high energy and precise control of the laser beam can effectively improve the processing speed and to obtain a precise machining result.


Ul Rohs Hasl Fr4 94v0 Laser PCB Depaneling Machine with Water Cooling


FPC ultraviolet laser cutting machine, FPC laser cutting machine characterized by:


1, with control software with independent intellectual property rights, user-friendly interface, complete functions, simple operation;

2, can process any graphics, cutting different thicknesses and different materials can be processed and the synchronization is complete hierarchical; optical system design optimization to ensure high beam quality, reduce the focused spot size, to ensure precision;

3, using high-performance UV laser with wave length, high beam quality, higher peak power characteristics. Due to ultraviolet light through decomposition, vaporization rather than melting materials processing to achieve, so almost no post-processing glitches, small thermal effect, no points

Layer, the effect of cutting precision, smooth, steep sidewalls.

4, using vacuum fixed sample, no mold protection plate is fixed, convenient, improve processing efficiency.

5, can cut a variety of substrate materials, such as: silicon, ceramic, glass and the like.

6, automatic correction, automatic positioning function, multi-plate cutting, automatic thickness measurement and compensation, motor Bank and compensation, working better uniformity and small machining depth fluctuations, higher processing efficiency of complex graphics.


FPC UV laser cutting machine, FPC laser cutting machine Technical parameters:

Solid-state UV laser source laser wavelength: 355nm
Laser power: 10W

Maximum processing format: 610mm X 500mm (24 "X 18") or 610X500mm

XY platform maximum operating speed: 50m / min

Positioning accuracy: ± 3um

Repeatability: ± 1um

System precision: ± 20um

Galvanometer scanning range: 50mm X 50mm

Cutting thickness: <1mm

Power and Power: AC220V 50Hz / 2.2KW; three-phase 380V 50Hz / 5.5KW

Welcome home Requirements: 516m3 / h

Dimensions: 1818mm X 2317mm X 1550mm

Weight: 3500Kg

Ambient temperature: 20 ℃ ± 2 ℃

Humidity: <60% RH non-condensing

Ground Amplitude: <5um

Vibration acceleration: <0.05g

Ground pressure: 2200kgf / m2

Industry-specific control equipment, electric clothes formulated flexible processing software dedicated motion control card and IPC control mode

With 17 monitors, hard drives over 300G standard G code, Gerber data, CAD
