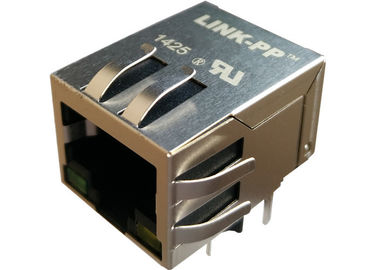

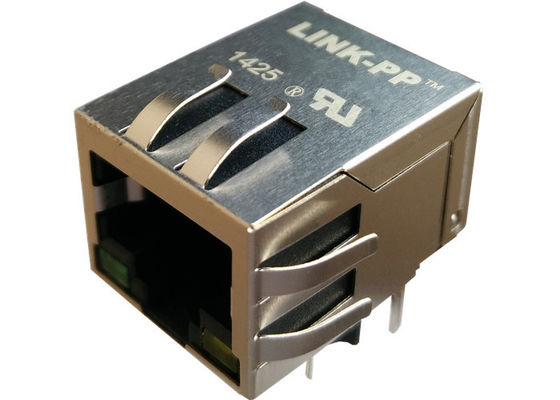

XRJG-01J-1-D34-110-TO RJ45 Magnetic RJ45 Jack 100M Tv-set Box LPJ0138GDNL

Quick Details

1.10/100 Base-T With LEDS , With EMI-Finger

2.1x1 Tab-DOWN RJ45

3.Through hole RJ45 modular jack

4.21.3mm length RJ45 Magjack

5.XRJG-01J-1-D34-110-TO【Designing Model】

6.LPJ0138GDNL【Mass Production Model】

Features and Benefits

1. RoHS peak wave solder temperature rating 260°C
2. Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP
3. Meets IEEE 802.3 specification
4. 350µH minimum OCL with 8mA bias current
5. High performance for MAX EMI suppression for cost-conscious applications

Description:

10/100 Base-TX RJ45 1x1 Tab-DOWN 8-pin Integrated Magnetics Connector, designed to support high volume cost-conscious consumer applications such as: ADSL modems, Cable modems, STB and Video on Demand.

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage:

18 years production experience,

2600 staff,

100% test

Flexible delivery time

Main Customer:

Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale.......
