Testing Procedures For PCB Board
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Bed of nails
·* Impedance control
·* Solder-ability detection
* Digital metallograghic microscope
·*AOI (Automated Optical Inspection)
Detailed Terms for PCB Manufacturing
---Technical requirement for pcb assembly:
* Professional Surface-mounting and Through-hole soldering Technology
* Various sizes like 1206,0805,0603 components SMT technology
* ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
* PCB Assembly With UL,CE,FCC,Rohs Approval
* Nitrogen gas reflow soldering technology for SMT.
* High Standard SMT&Solder Assembly Line
* High density interconnected board placement technology capacity.
Gold Plating (1-30 micro inch)
Pure Tin Plating
A) We have many special material as rogers, teflon, taconic, Fr-4 high tg, Ceramic in stock. Welcome to send us your inquiry.
B) We also provide sourcing components , PCB design , PCB copy , PCB drawing , PCB assembly and so on .
Payment & Shipping Terms:
electronic circuit board assembly,
electronic board assembly

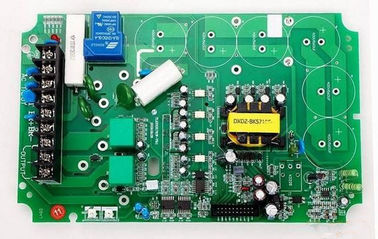

PCB Fr4 Electronic Circuit Board Assembly Conventer For 12V Charge Controller
1.Surface Mount PCB assembly (Both rigid PCB, flexible PCB)
2.PCBA contract manufacturing;
3.Electronic contract manufacturing service
4.Through hole assembly/DIP assembly;
7.Full Turnkey Box Build;
8.Mechanical / electrical assembly
9.Supply Chai Management/Components procurement;
11.Technical support / ODM service
1, SMT productivity: 8 complete automatic SMT production lines, populating 7 million dots per day.
2, DIP productivity: 4 DIP manual insertion production lines, assemble 0.5 million dots per day with wave soldering machine mount.
3,Hand Soldering: 4 hand soldering lines and solder 0.18million dots per day.
4,Box Build: final assembly line / mechanical assembly where we can operate harness assembly, mechanical part assembly and housing assembly. Productive is variety depends on different products.
5,Testing line:2 function test lines because we conduct 100% test before shipment. Test time is variety depends on different products.
Type of assembly
THD (Thru-hole device) / Conventional
SMT (Surface-mount technology)
SMT & THD mixed
Double-sided SMT and/or THD assembly
1 to 100,000
Passives, smallest size 0201
Fine pitch to 08 Mils
Leadless chip carriers/ BGA, VFBGA, FPGA & DFN
Connectors and terminals
Smallest size: 6mm x 6mm
Largest size: 600mm x 400mm
Leaded and Lead-Free
Water soluble solder paste
Manual soldering for special parts, e.g. wires and temperature sensitive parts.
Design file format
Gerber RS-274X, 274D, Eagle and AutoCAD’s DXF, DWG
BOM (Bill of Materials)
Pick and Place file (XYRS)
PCB Assembly Production Flow Chart
We perform multiple quality assurance procedures before shipping out any board. These include:
AOI (Automated Optical Inspector),
ICT (in-circuit test), and BGA Rework
Functional test (test modules need to be supplied) .
Quick turn lead times
If all the parts are available, normally the full turnkey pcb assembly job can be finished within 5 to 10 days in our factory. This means that the order can be delivered within three weeks once turnkey job start.
We make sure to serve each customer professionally, truthfully and friendly to the best of ourability. We will gladly re-work your project if your project isn’t 100% satisfactory.
Get a quick quote now
By sending in a bill of material, gerber files including assembly drawing and we will have a quotation back to you within hours. With Shenzhen hengda there is never a hidden cost and our prices are very competitive and reasonable.
Contact Person: admin
