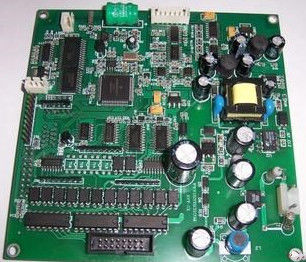

Surface Mount pcb Assembly Electronic Circuit Board Components OSP Finish SGS

Surface Mount pcb Assembly Electronic Circuit Board Components OSP Finish SGS
Surface Mount pcb Assembly Electronic Circuit Board Components OSP Finish SGS

Large Image :  Surface Mount pcb Assembly Electronic Circuit Board Components OSP Finish SGS

Product Details:

Place of Origin: China
Brand Name: Hengda PCB Assembly
Certification: UL,TS16949,ISO9001,RoHS.
Model Number: Electronic PCB Assembly -17

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ
Price: As Negotiation
Packaging Details: Packed in antistatic bag with unit-pack or multiple-pack box.
Delivery Time: 5-30 Days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 1000000Pcs/month
Detailed Product Description
High Light:

electronic prototype board

,

electronic board assembly



Surface Mount pcb Assembly Electronic Circuit Board Components OSP Finish SGS





Quick Details



 1) Design service



 2) Cloning and Copy service



 3) Prototyping service



 4) Mold making and plastic Injection



 5) PCB/PCBA/FPC making



 6) Cable and wire Assemblies



 7) Supply Chain service



 8) other OEM service



Description



To do the right thing in the first time, without spending a lot of time and resources on rework and inspection.
Quality system:
We are now implementing international quality system includes: UL ,TS 16949 ,ISO 14001, ISO 9001

Quality target:

  • on-time delivery:≥90% ;
  • double layer board acceptability:≥97%
  • four-layer board acceptability:≥95%
  • six-layer board acceptability:≥92%
  • eight-layer board acceptability:≥88%
  • ten-layer board acceptability:≥85%
  • customer satisfaction :≥90%
  • complaint rate/rejected rate:≤ 3%

Our production pcb assembly capabilities include machines placed SMT, THT, BGA and Micro BGAs, in addition to mixed technology PCB assembly. Keeping on the forefront of component requirements, we offer surface mount placement down to 12 mil pitch, with a component range of 0201 to 52 mm square QFPs and BGAs.



Parts & Component Sourcing
For Printed Circuit Board Assembly services, we accept components and parts in the following Two approaches.
1. Partial Turnkey,customer supply part components .
2. Full Turnkey, We purchase all the components from our Authority agent ,100% original guarantee.



Components for your PCBA project can be supplied in any one or more approaches below. We order genuine parts from your designated suppliers or our partner companies including DigiKey, Mouser, Arrow, Avnet, Future Electronics etc.



Surface Mount pcb Assembly Electronic Circuit Board Components OSP Finish SGS



Technical Capabilities



Type of assembly

THD (Thru-hole device) / Conventional

SMT (Surface-mount technology)

SMT  & THD mixed

Double-sided SMT and/or THD assembly

Order quantity

1 to 100,000

Components

Passives, smallest size 0201

Fine pitch to 08 Mils

Leadless chip carriers/ BGA, VFBGA,  FPGA & DFN

Connectors and terminals

Component packaging

Reels

Cut tape

Tube

Loose parts

Board dimensions

Smallest size:  6mm x 6mm

Largest size: 600mm x 400mm

Board shape

Rectangular

Round,

Slots,

Cutouts,

Complex,

Irregular

Board type

Rigid

Flexible

Rigid-flexible

Solder Type

Leaded and Lead-Free

Water soluble solder paste

Manual soldering for special parts, e.g. wires and temperature sensitive parts.

Design file format

Gerber RS-274X, 274D, Eagle and AutoCAD’s DXF, DWG

BOM (Bill of Materials)

Pick and Place file (XYRS)





































































PCB Assembly

Surface Mount pcb Assembly Electronic Circuit Board Components OSP Finish SGS





Testing Procedures



We perform multiple quality assurance procedures before shipping out any board. These include:
Visual inspection
X-ray Inspection
AOI (Automated Optical Inspector),
ICT (in-circuit test), and BGA Rework
Functional test (test modules need to be supplied) .





Quick turn lead times


If all the parts are available, normally the full turnkey pcb assembly job can be finished within 5 to 10 days in our factory. This means that the order can be delivered within three weeks once turnkey job start.





Service Guarantee


We make sure to serve each customer professionally, truthfully and friendly to the best of ourability.  We will gladly re-work your project if your project isn’t 100% satisfactory.



Get a quick quote now



By sending in a bill of material, gerber files including assembly drawing and we will have a quotation back to you within hours. With Shenzhen hengda there is never a hidden cost and our prices are very competitive and reasonable.
