LED PCB Boards

Testing Procedures For PCB Board

---We perform multiple quality assuring procedures before shipping out any PCB board. These include:

* Visual Inspection

* Flying probe

* Bed of nails

·* Impedance control

·* Solder-ability detection

* Digital metallograghic microscope

·*AOI (Automated Optical Inspection)

Detailed Terms for PCB Manufacturing

---Technical requirement for pcb assembly:

* Professional Surface-mounting and Through-hole soldering Technology

* Various sizes like 1206,0805,0603 components SMT technology

* ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

* PCB Assembly With UL,CE,FCC,Rohs Approval

* Nitrogen gas reflow soldering technology for SMT.

* High Standard SMT&Solder Assembly Line

* High density interconnected board placement technology capacity.

Surface Treatment

Lead-free HAL
Gold Plating (1-30 micro inch)
OSP
Silver Plating
Pure Tin Plating
Immersion Tin
Immersion Gold
Gold Finger

Other Service:

A) We have many special material as rogers, teflon, taconic, Fr-4 high tg, Ceramic in stock. Welcome to send us your inquiry.

B) We also provide sourcing components , PCB design , PCB copy , PCB drawing , PCB assembly and so on .

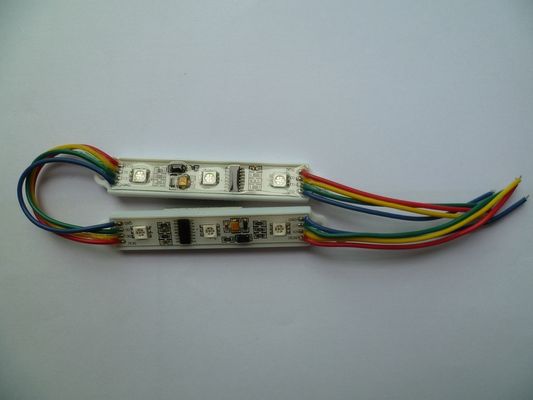

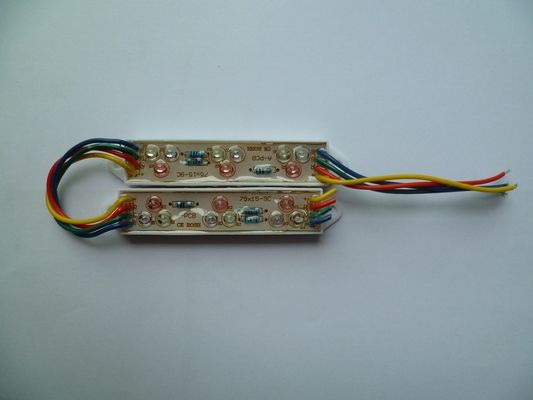

OEM ODM Electronic LED PCB Assembly SMD/ DIP Prototype Aluminum PCBA board

Large Image : OEM ODM Electronic LED PCB Assembly SMD/ DIP Prototype Aluminum PCBA board

Product Details:

Place of Origin:	China
Brand Name:	HUASWIN
Certification:	ISO/UL/RoHS
Model Number:	HSPCBA1008

Payment & Shipping Terms:

Minimum Order Quantity:	1 sets
Price:	Negotiation
Packaging Details:	Anti-static bag + Anti-static bubble wrap + Good quality carton box
Delivery Time:	15-20 working days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Highlight:

custom pcb assembly

led lamp assembly

OEM/ODM Electronic LED PCB Assembly / Reliable SMD/ DIP LED Assembly / Prototype Aluminum LED Light PCBA board

Specifications:

1. PCB design, PCB layout, PCB manufacturing, PCB Assemblies,
2. One-stop services from PCB to PCB assembly
3. Components sourcing, PCBA Function Test, design solution,
4. Electronic testing circuit board or PCBA , Aging test for all LED PCBA.
5. Eleectronic manufacturing service

Applications

1. Indoor out door decoration.

2. Architectural and boutique atmosphere lighting.
3. Back, concealed , channel letter lighting.

4. Emergency & security, advertisement sign lighting.
5. Holiday Decoration.

PCB capability and services:

1. Single-sided, double-sided & multi-layer PCB (up to 30 layers)
2. Flexible PCB (up to 10 layers)
3. Rigid-flex PCB (up to 8 layers)
4. CEM-1, CEM-3 FR-4, FR-4 High TG, Polyimide, Aluminum-based material.
5. HAL, HAL lead free, Immersion Gold/ Silver/Tin, Hard Gold, OSP surface treatment.
6. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
7. Quantities range from prototype to volume production.
8. 100% E-Test

Detailed Specification of PCB Manufacturing

1	layer	1-30 layer
2	Material	CEM-1, CEM-3 FR-4, FR-4 High TG, Polyimide, Aluminum-based material.
3	Board thickness	0.2mm-6mm
4	Max.finished board size	800*508mm
5	Min.drilled hole size	0.25mm
6	min.line width	0.075mm(3mil)
7	min.line spacing	0.075mm(3mil)
8	Surface finish	HAL, HAL Lead free,Immersion Gold/ Silver/Tin, Hard Gold, OSP
9	Copper thickness	0.5-4.0oz
10	Solder mask color	green/black/white/red/blue/yellow
11	Inner packing	Vacuum packing,Plastic bag
12	Outer packing	standard carton packing
13	Hole tolerance	PTH:±0.076,NTPH:±0.05
14	Certificate	UL,ISO9001,ISO14001,ROHS,TS16949
15	Profiling punching	Routing,V-CUT,Beveling

PCBA capabilities:

Single- or double-sided mixed technology or SMT (Surface Mount) for PCB assembly

Single- or double-sided BGA and micro-BGA installation and rework with 100% X-ray inspection

PCB board components, including all types of BGAs, QFNs, CSPs, 0201, 01005, POP, and Pressfit Components in small quantities

Part Polarity Capacitors, SMT Polarized Capacitors, and Through-Hole Polarized Capacitors

ROHS capability

IPC-A-610E and IPC/EIA-STD workmanship operation

Quality Assurance:

ISO9001 and ISO/TS16949 management systems
Lean production system
ERP and PTS system support for management

Quality Processes:

1. IQC: Incoming Quality Control (Incoming Materials Inspection)
2. First Article Inspection (FAI) for every process
3. IPQC: In Process Quality Control
4. QC: 100% Test & Inspection
5. QA: Quality Assurance based on QC inspection again
6. Workmanship: IPC-A-610, ESD
7. Quality Management based on CQC, ISO9001:2008, ISO/TS16949

Tag:

mcpcb,

led pcb,

custom pcb assembly

Contact Details
