Testing Procedures For PCB Board
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Bed of nails
·* Impedance control
·* Solder-ability detection
* Digital metallograghic microscope
·*AOI (Automated Optical Inspection)
Detailed Terms for PCB Manufacturing
---Technical requirement for pcb assembly:
* Professional Surface-mounting and Through-hole soldering Technology
* Various sizes like 1206,0805,0603 components SMT technology
* ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
* PCB Assembly With UL,CE,FCC,Rohs Approval
* Nitrogen gas reflow soldering technology for SMT.
* High Standard SMT&Solder Assembly Line
* High density interconnected board placement technology capacity.
Surface Treatment
Lead-free HAL
Gold Plating (1-30 micro inch)
OSP
Silver Plating
Pure Tin Plating
Immersion Tin
Immersion Gold
Gold Finger
Other Service:
A) We have many special material as rogers, teflon, taconic, Fr-4 high tg, Ceramic in stock. Welcome to send us your inquiry.
B) We also provide sourcing components , PCB design , PCB copy , PCB drawing , PCB assembly and so on .
Product Details:
Payment & Shipping Terms:
|
| High Light: | led light assembly,led lamp assembly |
||
|---|---|---|---|

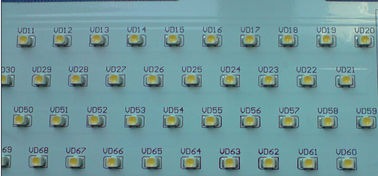

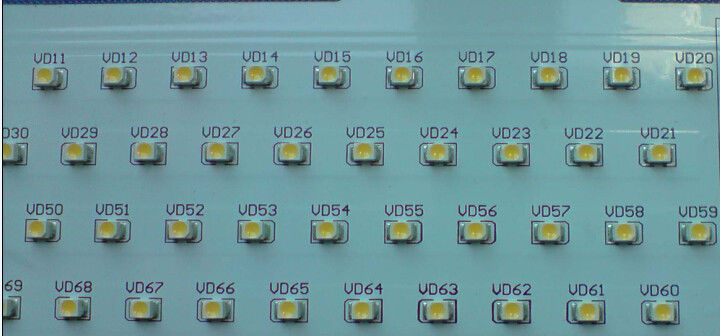

Aluminum High Power LED PCB Assembly / Lead HASL 1.6MM Aluminum LED PCBA
Specifications
1. Max Length:1.8M for FR4, 1.5M for Aluminum
2. Finish Board Thickness: 0.2mm-5.0 mm (8mil-197mil)
3. Surface Finish: HASL, ENIG, immersion silver, OSP
4. Flame retardant: 94V-0
5. Shaping; V-cut, tooling punching, CNC routing,
PCB capability and services:
1. Single-sided, double-sided & multi-layer PCB (up to 30 layers)
2. Flexible PCB (up to 10 layers)
3. Rigid-flex PCB (up to 8 layers)
4. CEM-1, CEM-3 FR-4, FR-4 High TG, Polyimide, Aluminum-based material.
5. HAL, HAL lead free, Immersion Gold/ Silver/Tin, Hard Gold, OSP surface treatment.
6. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
7. Quantities range from prototype to volume production.
8. 100% E-Test
Detailed Specification of PCB Manufacturing
|
1 |
layer |
1-30 layer |
|
2 |
Material |
CEM-1, CEM-3 FR-4, FR-4 High TG, Polyimide, |
|
3 |
Board thickness |
0.2mm-6mm |
|
4 |
Max.finished board size |
800*508mm |
|
5 |
Min.drilled hole size |
0.25mm |
|
6 |
min.line width |
0.075mm(3mil) |
|
7 |
min.line spacing |
0.075mm(3mil) |
|
8 |
Surface finish |
HAL, HAL Lead free,Immersion Gold/ Silver/Tin, Hard Gold, |
|
9 |
Copper thickness |
0.5-4.0oz |
|
10 |
Solder mask color |
green/black/white/red/blue/yellow |
|
11 |
Inner packing |
Vacuum packing,Plastic bag |
|
12 |
Outer packing |
standard carton packing |
|
13 |
Hole tolerance |
PTH:±0.076,NTPH:±0.05 |
|
14 |
Certificate |
UL,ISO9001,ISO14001,ROHS,TS16949 |
|
15 |
Profiling punching |
Routing,V-CUT,Beveling |
Applications of our products:
1.Computers and relevant products: Movable power board, U Disk, network interface, panel
computer, cameral, wire-less mouse.
2.Home appliance: smart projector/digital cameral, high-frequency board. Recorder and repeater
board, auto audio equipment main board and control board.
3.Wire-less communication: mobile board,. GPS/ direction record board, wireless telephone main
board, intercom main board.
4.LED Lighting: LED drive power, LED light panel, LED light belt.
5.We have been specializing in the production of control units for commercial equipment such as
industrial measuring and testing equipment, monitory and inspection systems, computers, home
appliance such as air conditioners,refrigerators, solar-power systems, water-heat and automotives.
