Testing Procedures For PCB Board
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Bed of nails
·* Impedance control
·* Solder-ability detection
* Digital metallograghic microscope
·*AOI (Automated Optical Inspection)
Detailed Terms for PCB Manufacturing
---Technical requirement for pcb assembly:
* Professional Surface-mounting and Through-hole soldering Technology
* Various sizes like 1206,0805,0603 components SMT technology
* ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
* PCB Assembly With UL,CE,FCC,Rohs Approval
* Nitrogen gas reflow soldering technology for SMT.
* High Standard SMT&Solder Assembly Line
* High density interconnected board placement technology capacity.
Surface Treatment
Lead-free HAL
Gold Plating (1-30 micro inch)
OSP
Silver Plating
Pure Tin Plating
Immersion Tin
Immersion Gold
Gold Finger
Other Service:
A) We have many special material as rogers, teflon, taconic, Fr-4 high tg, Ceramic in stock. Welcome to send us your inquiry.
B) We also provide sourcing components , PCB design , PCB copy , PCB drawing , PCB assembly and so on .
Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMD LED PCB | Input Voltage: | AC180-265V |
|---|---|---|---|
| Dimension: | Φ260×36mm | Suitable Chassis: | Φ300mm, Φ320mm, Φ350mm |
| Application: | Indoor | Rated Power: | 24W |
| Lumen Flux: | 100lm/w | CRI: | Ra>80 |
| Color Temperature: | 6000-6500K | ||
| High Light: | LED Light PCB Board,LED Printed Circuit Board |
||

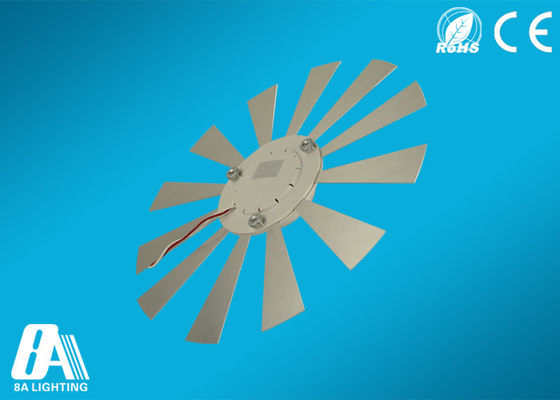

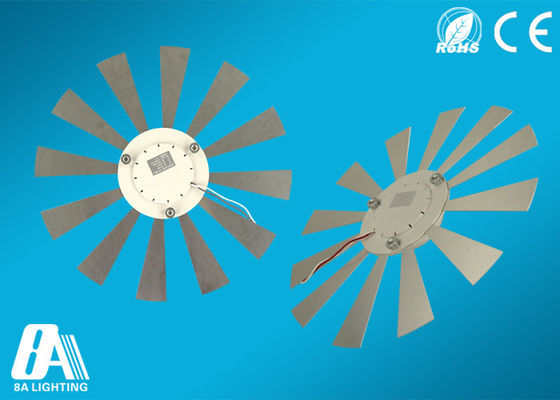

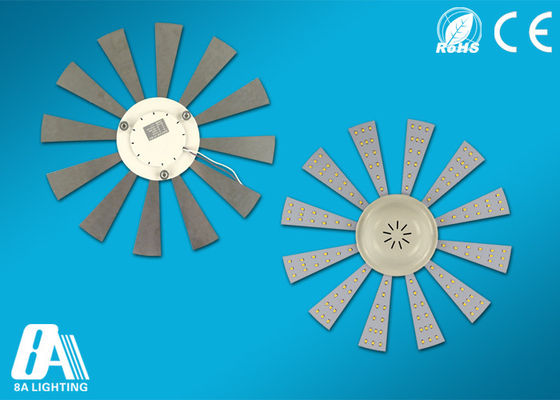

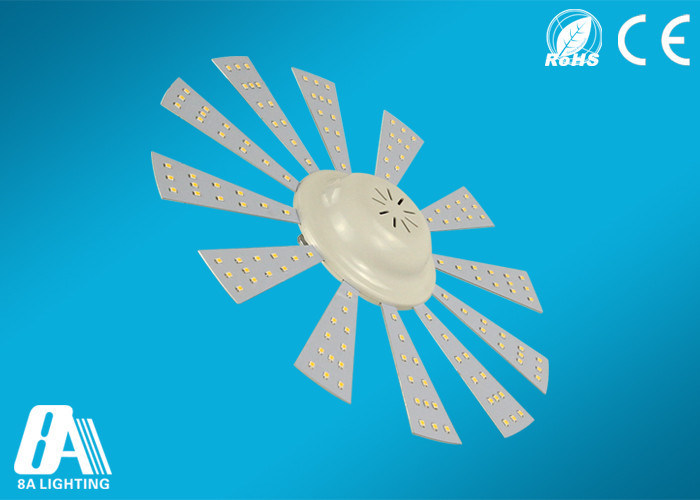

LED PCB Board For Ceiling Light Sanan SMD2835 24 Watts Cool White
Specifications:
|
Molel No. |
9070 |
|
Rated Power |
24W |
|
Input voltage |
AC180-265V |
|
CCT (Color Temperature) |
6000-6500K |
|
Lumen Flux |
100lm/W |
|
CRI |
Ra>80 |
|
Frequency Range |
50~60Hz |
|
Operating Temperature |
-10°c to 50°c |
|
Housing material |
Alumimum PCB+SMD2835 LEDs |
|
Net Weight |
149g |
|
Lifespan |
50000 hour |
|
Warranty |
2 years |
|
Beam Angle |
180° |
|
Chassis Size |
Φ300mm, Φ320mm, Φ350mm |
|
Dimension |
Φ260×36mm |
Description:
Applications:
1) Building (architecture or home) decoration
2) Home, high-grade counters, hotels, showrooms, stores, etc
3) Shopping mall, restaurant, meeting room
4) Replace 18W energy-saving ceiling light source.
Competitive Advantage:
