Introduction
We can make single/double sided board, multi-layer board, high density board, including MLB with blind/buried via holes
Main Base Material
FR-1, FR-2, FR-4, CEM-1, CEM-3, High Frequency Laminate with various dielectric constant (imported or from local supplier), Aluminum base laminate, Metal core Aluminum
We choose the best base material suppliers as our partners, such as KB and Shengyi to guarantee our products with high quality.
Surface Finish
Hot air Lev p lead free HASL, immersion gold/silver/tin, plating gold, OSP
Board Thickness
Inner core thickness 0.15-1.5mm, finished board thickness 0.20-3mm
Service
*- Comprehensive documents audit to prevent mistakes in PCB Gerber and Bom.
*- Suggest best quality replacement with lower price.
*- Engineering support for test and provide suggestions for mass production.
*- Suggest best shipment method.
*- Sign NDA to keep your design safe.
Product Details:
Payment & Shipping Terms:
|
| High Light: | printed circuit board machine,pcb cutter |
||
|---|---|---|---|

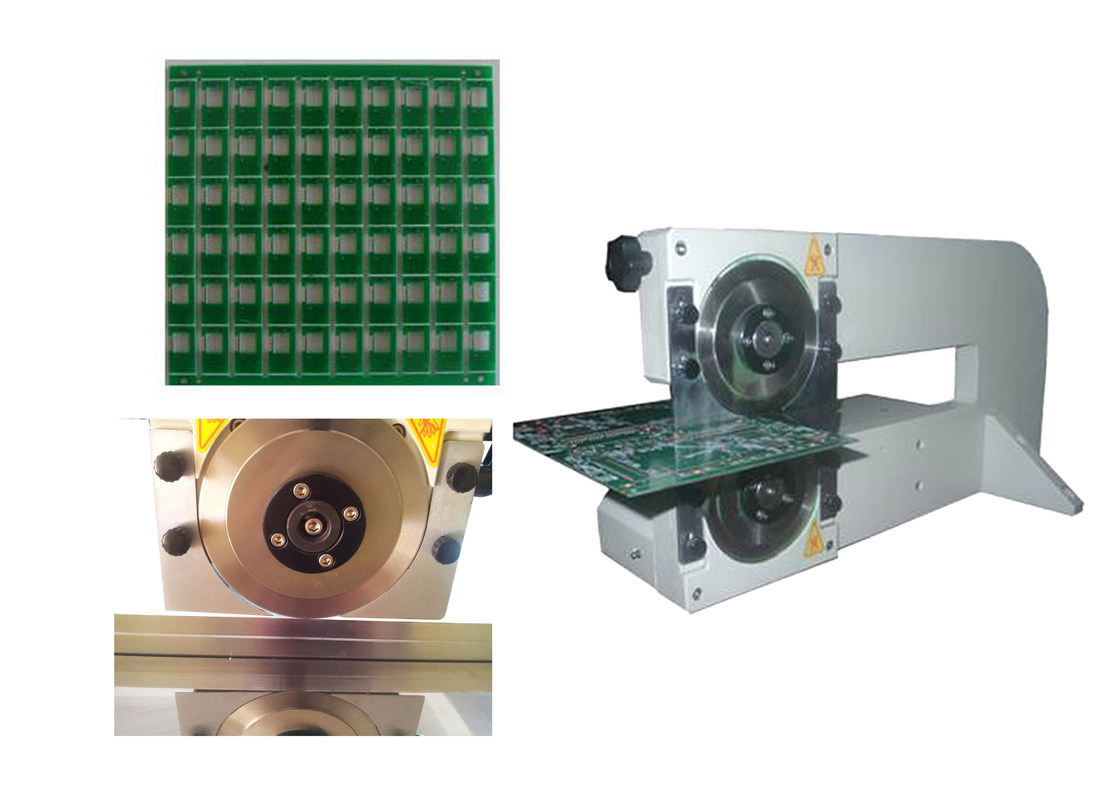

Electronic Component Protecting PCB Cutting Machine For Electronics, Cell Phones
Electronic component protecting pcb cutting machine seller
1.Easy operating modes
2.Easy setting, edge guiding
3.Cutters re-grinded
4.Avoid micro-cracks
Specification:
|
Model |
CWVC-1 |
|
PCB Cutting Length (mm) |
330 |
|
Cutting Speed (mm/s) |
0~400 |
|
Cutting Thickness (mm) |
1.0~3.5 |
|
Power Supply (V) |
110/220 |
|
Size (mm) |
420*280*400 |
|
Weight (Kg) |
20/40 |
|
Blade Hardness (HB) |
540~567 |
|
Blade Hardness (HRC) |
60~63 |
|
Blade working life for metal (Year) |
0.5 |
|
Blade working life for PCB (Year) |
1 |
|
Guarantee (Year) |
1 |
|
Delivery (Day) |
1 |
|
Min. Order (Set) |
1 |
|
Ability (Set) |
1000 |
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.
2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated
to high strength cutting, and excellent toughness, able to cut metal board !!!!!!
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
Feature:
1.Minimize the shearing stress to avoid micro-cracks of the solder joints.
2.Guiding device of the "V-CUT" of the PCB.
3.Ball bearing slideways for easy setting of the PCB edge guides.
4.Ball bearing slideways for easy setting of the height of the tabletop.
5.Easy operating modes: Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running.
6.Cutters can be re-grinded
7.The shape of the cutter can be customer made
Our Advantage :
1.CWVC-1 Pcb depanelizer original manufacturers, price concessions
2.Promise day technical support services
3.Limit the handling of complaints, half an hour back to customers
4.Depanel Experts, the provision of professional PCB sub-programme
5.Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.
