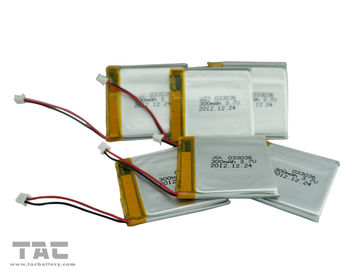

GSP351624 3.7V 100mAh Polymer Lithium Ion Battery cell with PCB for HEV and EV

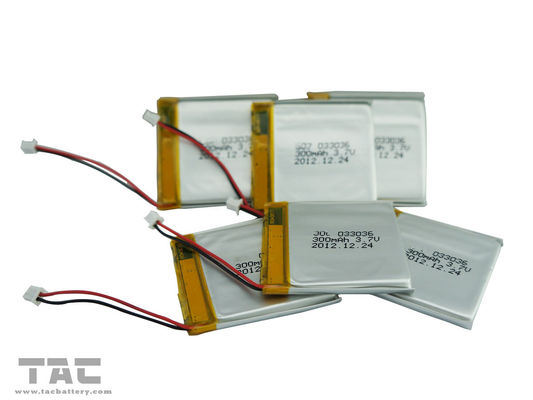

Large Image : GSP351624 3.7V 100mAh Polymer Lithium Ion Battery cell with PCB for HEV and EV

Product Details:

Place of Origin:	guangzhou
Brand Name:	Tac
Certification:	UL, Rohs
Model Number:	GSP351624 3.7V 100mAh

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	usd0.50
Packaging Details:	20 pcs in one pallet , 20 pallet in one carton
Delivery Time:	14days after order
Payment Terms:	T/T, LC,Paypal etc.
Supply Ability:	30K/Day

Contact Now

Detailed Product Description

Type:	Lithium Polymer	Capacity:	100mah
Min Capacity:	90mah	Voltage:	3.7-4.2v
Circle Life:	500 Times	Warranty:	12 Months
Pvc Color:	Blue	Brand:	Tac Or OEM
Highlight:	high capacity lithium ion battery , li-ion polymer battery

Polymer Lithium Ion Battery Cell with PCB For HEV GSP351624 3.7V 100mAh

Application for Polymer Lithium Ion Battery Cell with PCB For HEV GSP351624 3.7V 100mAh

Mobile phone,
notebook PC,
Bluetooth,
PDA, MP3/MP4,
smart card,
portable DVD
player, camcorder,
UPS, Power tools,
LEV, HEV and EV etc.

Specification for Polymer Lithium Ion Battery Cell with PCB For HEV GSP351624 3.7V 100mAh

No.	Item	Rated Performance		Remark
1	Rated Capacity	Minimum	100mAh	Standard discharge(0.2C C5A) after Standard charge
2	Nominal Voltage	3.7V		Mean Operation Voltage During Standard Discharge After Standard Charge
3	Voltage at end of Discharge	3.0V		Discharge Cut-off Voltage
4	Charging Voltage	4.2±0.03V
5	AC (1KHz) Impedance New Cell Max.(mW)	≤100mΩ
6	Standard charge	Constant Current 0.5C5A Constant Voltage 4.2V 0.01 C5A cut-off		Charge time : Approx 4.0h
7	Standard discharge	Constant current 0.2 C5A end voltage 3.0 V
8	Fast charge	Constant Current 1C5A Constant Voltage 4.2V 0.01 C5A cut-off		Charge time : Approx 2.5h
9	Fast discharge	Constant current 1 C5A end voltage 3.0 V
10	Maximum Continuous Charge Current	1 C5A
11	Maximum Continuous Discharge Current	1.5 C5A
12	Operation Temperature Range	Charge: 0~45℃		60±25%R.H. Be Cell
		Discharge: -20~60℃
13	Storage Temperature Range	Less than 1 year: -20~25℃		60±25%R.H. at the shipment state
		less than 3 months: -20~40℃
14	Weight	Approx :13g		Bare Cell
15	Cell Dimension	Length: Max.24.5mm		Initial Dimension
		Width: Max.16.5mm
		Thickness: Max. 3.7mm

Similar Model for Same Performance

Model	Nominal Voltage (V)	Typical Cap.	Dimension(mm)
Model	Nominal Voltage (V)	(mm)	Thickness	Width	Height
073496DHP	3.7	2100	7.8	34	96
LP0567100	3.7	3400	4.8	67	100
LP066166	3.7	2750	6.1	61	66
LP555376	3.7	2300	5.6	53	76
LP085065	3.7	2600	7.8	50	65
LP085080	3.7	3400	8	50	80
LP0845131	3.7	5100	7.5	45	131
LP0831134	3.7	4000	8.1	31	132
LP55100100	3.7	5600	5.5	100	100
LP605590	3.7	3400	6	55	90
LP9051109	3.7	5500	9	51	109
LP9551119	3.7	6800	9.5	51	119
*LP7044125	3.7	4200	7	44	125
*LP7545135	3.7	4500	7.5	45	135
LP704374	3.7	2200	7	43	74
LP854374	3.7	3000	8.5	43	74

Packing and Shipping Information

Packaging: Standard export package plastic tray +white box+outer carton
Shipping: By sea ( for large orders more than 100kg, production:25-30days, delivery:20-25days) ;
By air ( for small orders, production: 15-20days, delivery:7-15days);
By express-UPS, DHL, TNT, FedEx, etc (for sample orders, production: 15-20days, delivery:4-7days).

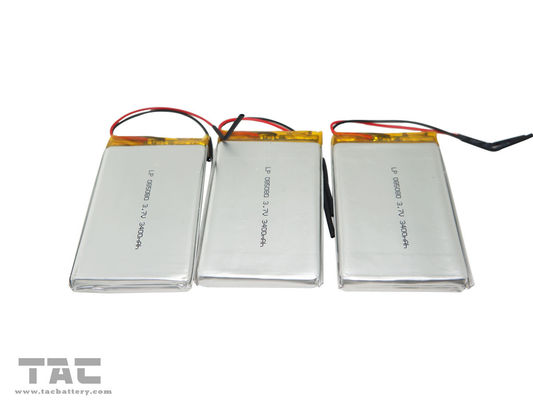

GSP351624 3.7V 100mAh Polymer Lithium Ion Battery cell with PCB for HEV and EV

Production photos

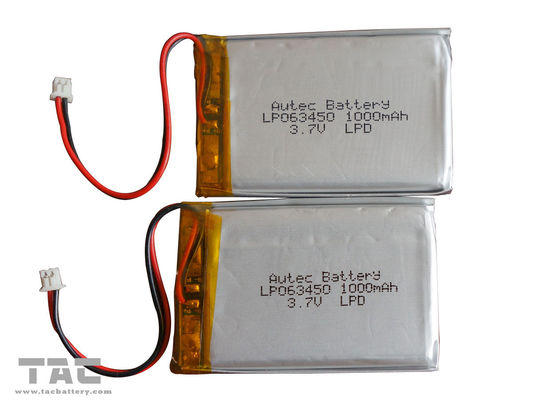

GSP351624 3.7V 100mAh Polymer Lithium Ion Battery cell with PCB for HEV and EV

Period of Warranty

The period of warranty is six months from the date of shipment. TAC guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customers abuse and misuse.

Storing the Batteries

The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per year to prevent over discharge
