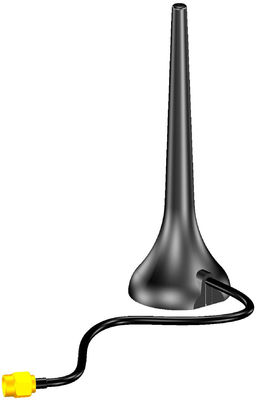

GSM / SPRS Magnetic Mount Externder Antenna With SMA Connector
Detail Product Description
Frequency: 824~960 MHz,1710 ~ 1880 MHz
S.W.R: 2.0 MAX
Impedance: 50 ohm
Peak Gain: 2 dB
Cable: RG 174 Cable
Connector: SMA Male; RP-SMA Male
Application:
Remote Control System
Wireless Audio / Video System
GSM / CDMA / 3G Mobile Phone System
Feature:
1. RoHS Compliant
2. Low V.S.W.R. / Low Loss Design / High Gain
3. High Efficiency and Sensitivity
4. Low Loss RF Coaxial Connector Cable Feed
5. Matching Free Design
A. Electrical Characteristics |
||
Frequency |
824~960 MHz,1710 ~ 1880 MHz |
|
Impedance |
50 ohm |
|
S.W.R |
2.0 MAX |
|
Peak Gain |
2 dB |
|
Return Loss |
>= 10 dB |
|
B. Material & Mechanical Characteristics |
||
Cable Type |
RG 174 Cable |
|
Connector Type |
SMA Male; RP-SMA Male |
|
Pull Test |
>= 3.0Kg |
|
C. Environmental |
|
|
Operation Temperature |
- 40 ˚C ~ + 65 ˚C |
|
Storage Temperature |
- 40 ˚C ~ +80˚C |
Characteristics and Reliability Test
Test Items |
Test Condition and Procedure |
Requirements |
|
C1 |
S.W.R. |
Set DUT on Network Analyzer; make individual calibration to test |
Directive DUT specification |
M1 |
Vibration |
MIL-STD-202G, 201A Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz 3 directions; 2 hours for each direction |
1. No Visual Damage 2. Frequency Tol.<= 5% |
M2 |
Random Drop |
Height: 1.5 Meter; 3 directions; 1 time for each direction |
1. No parts separated 2. Frequency Tol.<= 5% |
M3 |
Solderability |
MIL-STD-202G, 210F, cond. A Solder iron: 350±10°C; Duration: 5 seconds |
1. Mounted on PCB 2. No Visual Damage |
M4 |
Terminal- Pull Test |
MIL-STD-202G, 211A, cond. A Holding with individual specification; force applied to axis of terminal |
1. Directive DUT specification 2. Frequency Tol.<= 5% |
M5 |
Dimension |
Inspection of dimension, color, material, package, surface process |
Directive DUT specification |
E1 |
Salt Spray |
MIL-STD-202G, 101E, cond. B Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%; Time: 48 hours |
After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% |
E2 |
Humidity |
MIL-STD-202G, 103B, cond. B Temp: 40°C; RH: >= 95%; Time: 48 hours |
After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% |
E3 |
Thermal Shock |
1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes) Cycles: 24 |
After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% |
E4 |
Life (High Temp.) |
MIL-STD-202G, 108A, cond. A Temp: 85°C; Time: 96 hours |
After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% |
R1 |
RoHS |
With Reference to IEC 62321:2008 with flow chart |
Directive RoHS 2002/95/EC |
R2 |
PFOS |
With Reference to USA EPA 3540C:1996 by LC/MS |
Directive RoHS 2006/122/EC |
R3 |
PFOA |
With Reference to USA EPA 3540C:1996 by LC/MS |
Directive RoHS 2006/122/EC |
