Industrial PCB

Service Details:

1) Fast PCB with in 12 hours, 24 hours and 48 hours are available.
2) No MOQ for PCB ,PCBA ,FPC and Alu pcb.
3) Boards are RoHS compliant with UL.
4) Engineers with over 10 years of working experience can offer you professional suggestions.
5) Factory production Capability of 15000 sqm/month.
6) Quality inspection standard: IPC-6012 Class II.
7) Base material: FR4, Hi-tg FR4, Aluminum, High frequency (Rogers, Taconic, F4B, Arlon etc.), PI, PET.

Surface Finish

HAL, HASL Lead Free, Immersion gold, Gold plating, Gold finger, immersion silver, immersion Tin, OSP, Carbon ink

Advantages

1.Embedded high performance industrial motherboard. (2.0cm ultrathin)

2.DDR3 1066/1333/1600MHz memory,SO-DIMM socket maximum up to 4GB.

3.Support WIFI,3G SIM card,dual 1000M RJ45 LAN port,support Mini SATA SSD ,more efficiency.

4.Support power booting/plug and play,Timer-power-on.

5.Support 1080P HDMI resolution maximum up to:1920*1200;Support 24bit dual channel LVDS;VGA resolution maximum up to:2048*1536.

6.Reliable, High stability, Low noise, low power consumption.Perfectly suitable for AD Player/AIO machine/IPC/VOD/Car PC/HTPC etc.

Industrial Control PCB Specification

CPU Processor

• ATMEL AT91SAM9G45, ARM926EJ-S Core
• 400MHz

DDR RAM Memory

• 128MB DDR2 RAM, 133MHz, 32bit data bus

FLASH Storage

• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)could change a large capacity or industrial chip according to customer's requirement

Interfaces

• 2*100 pin 0.8mm spacing B to B(the connectors are 350°C high temperature-tested and seismic-tested)

Other Onboard Resources

• DM9161 net chip, support 10M/100M Ethernet with MII mode, more compatible than RMII;
• 1.8V, 3.3V, 5.0V voltage input

PCB Specification & Size

• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm

Working Parameters

• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 5v Dc power supply, low power consumption, <1W

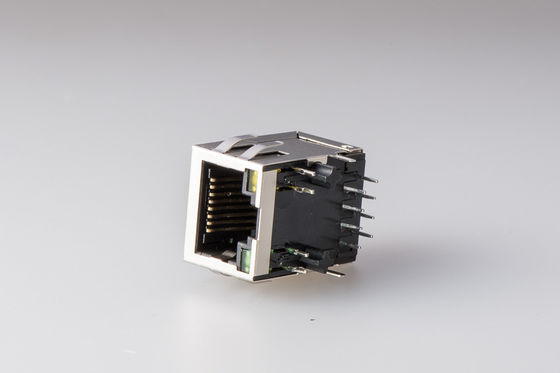

Single Port 8 Pin Tab Up Magnetic RJ45 Jack PCB Filter With LED / EMI Optional

Large Image : Single Port 8 Pin Tab Up Magnetic RJ45 Jack PCB Filter With LED / EMI Optional

Product Details:

Place of Origin:	GuangDong
Brand Name:	PHCONN
Certification:	ISO9001-2008 , RoHs , UL , SGS
Model Number:	RMS-003D-08A6-GY

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	USD1.0 - 1.5 PCS
Packaging Details:	110pcs/reel; 550pcs/ catron
Delivery Time:	24-30 work days
Payment Terms:	D/A, D/P, L/C, T/T,paypal
Supply Ability:	1000,000pcs/Month

Contact Now

Detailed Product Description

Shield:	Brass Alloy	Terminal:	Phosphor Copper
Soldering Temperature:	255 ℃ 5 Seconds	LED Color:	Yellow, Gree, Red, Blue, Double Color Option
Mounting Type:	Insert Plate 10 / 100 / 1000 MB	Orientation:	90 Degree, Side Enter
Pin Number:	8 Pin	Port:	Single Port
Highlight:	RJ45 PCB Connector , SMT RJ45 Connector

Single Port 8 Pin Tab Up Magnetic RJ45 Jack PCB Filter With LED / EMI Optional

Specifications

Part Number	Manufacturer Part Number	Manufacturer	Description
RMS-003D-08A6-GY	RMS-003D-08A6-GY	PHC	Single Port 8 Pin Tab Up Magnetic RJ45 Jack PCB Filter With LED / EMI Optional

Series	Connector Type	Applications	Mounting Type
Connectors, Interconnects	PHC RJ45 Female	10/100 /1000Mbps	insert plating

Orientation	Termination	LED Color	Shielding
90° Angle (Right) Side enter	Solder	G/Y	Shielded

Electrical
1. Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement 2. High performance for maximum EMI suppression 3. 350uH minimum OCL with 8mA bias current
Current rating	1.5A
Voltage rating	125V AC
Insulation resistance	500MΩ min
Contact resistance	30MΩ max
Withstanding voltage	AC 1500V RMS 50Hz or 60Hz 1 min
Insertion loss	-1.2dB Maximum at 100kHz-100MHz
Return loss	-18dB minimum at 1MHz-30MHz -14dB minimum at 30MHz-60MHz -12dB minimum at 60MHz-80MHz
Common mode rejection	-30dB minimum at 1MHz-100MHz
Cross talk	-30dB minimum at 1MHz-100MHz
Mechanical
Insertion force	2 contacts 350g 4 contacts 500g 6 contacts 750g 8 contacts 900g 10 contacts 1050g
Retention strength	7.7KG.F min between jack and plug
Durability	800 mating cycles min
Material
Housing	ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
Contact wire	Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel
Shield	0.20-0.25mm thickness brass with tin plated
Gold plating	3u", 6u", 15u", 30u", 50u"
LED specifications	Standard LED color	LED wavelength	Forward (V max)	Typical (V TYP)	Luminous intensity
	Green	560-580 nm	2.5V	2.1-2.2V	9-25 MCD
	Yellow	580-610 nm	2.5V	2.1-2.2V	9-30 MCD
	Orange	580-610 nm	2.5V	2.1-2.2V	50-100 MCD
	LED intensity/wavelength measured with photo research PR-650 colormeter With a forward current of 20mA, absolute maximum ratings (Ta=25°C)
RoHS peak wave solder	RoHS-5 peak wave solder temperature rating 235 ±5°C
	RoHS-6 peak wave solder temperature rating 260 ±5°C
Operating and storage temperature
Operating temperatures	-40 to 85°C
Storage temperatures	-40 to 85°C
Applications
Networking products	NIC, hub, switch, router, bridge, work
Station	PC/system, printer, server, NB,ia cable modem, XDSL application, set-top-box

Drawing

Single Port 8 Pin Tab Up Magnetic RJ45 Jack PCB Filter With LED / EMI Optional
(PHC)

Why Choose PengHui Quality

Quality :

World’s Leader supplier of Integrated RJ45 Connector and PCB connector

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the step are doing by ourself. So we can control the quality.

1) Manufactured under strict controls.
2) ISO 9001:2008
3) UL Certification
4) Reach Cetitifaction
5) RoHS compliance
6) OEM for PULSE
7) Active Environmental policy
8) Every module tested 3times (not just batch tested)

Unit Price

Charge only 35~60% of Pulse ,(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong (PHC)
With large scale of production lines, we can reach to cost reduction at the most extent

Design&Technical strength
We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time:30-45 workdays

Production&Testing

PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.

Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions
