Service Details:
1) Fast PCB with in 12 hours, 24 hours and 48 hours are available.
2) No MOQ for PCB ,PCBA ,FPC and Alu pcb.
3) Boards are RoHS compliant with UL.
4) Engineers with over 10 years of working experience can offer you professional suggestions.
5) Factory production Capability of 15000 sqm/month.
6) Quality inspection standard: IPC-6012 Class II.
7) Base material: FR4, Hi-tg FR4, Aluminum, High frequency (Rogers, Taconic, F4B, Arlon etc.), PI, PET.
Surface Finish
HAL, HASL Lead Free, Immersion gold, Gold plating, Gold finger, immersion silver, immersion Tin, OSP, Carbon ink
Advantages
1.Embedded high performance industrial motherboard. (2.0cm ultrathin)
2.DDR3 1066/1333/1600MHz memory,SO-DIMM socket maximum up to 4GB.
3.Support WIFI,3G SIM card,dual 1000M RJ45 LAN port,support Mini SATA SSD ,more efficiency.
4.Support power booting/plug and play,Timer-power-on.
5.Support 1080P HDMI resolution maximum up to:1920*1200;Support 24bit dual channel LVDS;VGA resolution maximum up to:2048*1536.
6.Reliable, High stability, Low noise, low power consumption.Perfectly suitable for AD Player/AIO machine/IPC/VOD/Car PC/HTPC etc.
Industrial Control PCB Specification
CPU Processor
• ATMEL AT91SAM9G45, ARM926EJ-S Core
• 400MHz
DDR RAM Memory
• 128MB DDR2 RAM, 133MHz, 32bit data bus
FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)could change a large capacity or industrial chip according to customer's requirement
Interfaces
• 2*100 pin 0.8mm spacing B to B(the connectors are 350°C high temperature-tested and seismic-tested)
Other Onboard Resources
• DM9161 net chip, support 10M/100M Ethernet with MII mode, more compatible than RMII;
• 1.8V, 3.3V, 5.0V voltage input
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5v Dc power supply, low power consumption, <1W
Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Water Proof: | Support |
|---|---|---|---|
| Number Of Keys: | 65 Keys | Mounting Method: | Hole Mounting |
| Interface: | PS/2 Or USB | Keyswitch Technology: | Carbon-on-gold Technology Or Gold-on-gold Technology |
| Operating Temperature: | 0℃ To +45℃ | ||
| High Light: | metal computer keyboard,stainless steel keyboard |
||

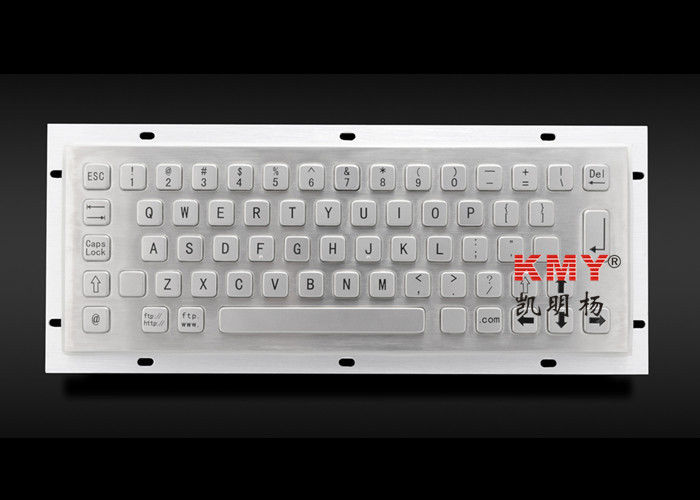

Rugged Industrial Vandal Proof Keyboard Waterproof PS2 or USB
KMY299C are is of high quality stainless steel, IP65, IK07, CE, FCC, RoHS certificated,
mainly used on ATM, self-service terminal/kiosk, industrial PCs, etc.
Dimensions:
Ø Front Panel: 300 ×110mm
Ø Overall: 324 ×134mm
Features:
Ø 65 keys stainless steel panel mount keyboard
Ø Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista, Linux and Unix
Ø Waterproof and dustproof
Ø Very rugged vandal proof design
Ø Can be cleaned with soapy water, disinfectant or other cleaning agents
Ø Carbon-on-Gold key switch technology PCB
Ø PS/2 or USB interface available
Ø Customized language layout available
Material:
Ø Front Panel: high quality stainless steel
Ø Keys: high quality stainless steel
Ø Back panel: Aluminum
Mechanical Performance:
Ø Operating Temperature:-10°to+50°
Ø Storage Temperature: -30°to +80°
Ø Relative humidity: 30%～95%
Ø Atmospheric pressure: 50 to 110kPa
Ø Lifespan: >1 million operations per key
Ø Key trip: 2mm
Ø Key pressure: 120g
Ø Weight: 1.6kg
Electrical Performance:
Ø Voltage: 5.0VDC±5%
Ø Electric current: 10mA
Ø EMC Emission: EN55022(B)
Reliability:
Ø MTBF: >20,000 hours
Ø MTTR: < 30 minutes
Ø CE, FCC, RoHS compliant
Ø Waterproof and dustproof Class: IP65
Ø Vandal resistant: IK07
