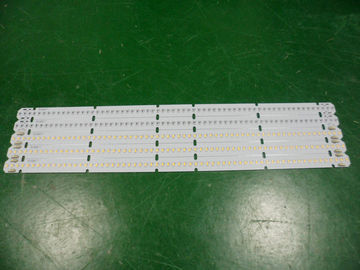

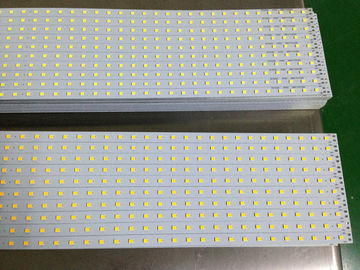

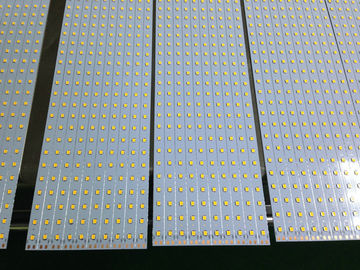

LED Tube LED PCB Assembly PCBA

LED Tube LED PCB Assembly PCBA
LED Tube LED PCB Assembly PCBA LED Tube LED PCB Assembly PCBA LED Tube LED PCB Assembly PCBA

Large Image :  LED Tube LED PCB Assembly PCBA

Product Details:

Place of Origin: China
Brand Name: JHD PCB
Certification: UL,RoHs,SGS,ISO9001-2008
Model Number: JHD-TA-1669

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: US$0.1-US$4.99
Packaging Details: Vacuum in Carton
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 30000 square meters per month
Detailed Product Description
High Light:

custom pcb assembly

,

pcb board assembly

LED Tube LED PCB Assembly PCBA Printed Circuit Board Assembly



Specifications



PCB: Aluminum PCB,FR4PCB,Copper PCB

Wattage: 18W

Input Voltage: 72V-76.8V DC

Input Current:240mA

Initial Luminous Flux: 2000lm

Color Temperature: 2700-3000K,4000-4500K,5000-5500K,6000-6500K

CRI: >80Ra

All of the parameters can be customized!



Applications



Special for 18W,22W LED tube light



LED Tube LED PCB Assembly PCBA

Lead Time

Samples: 3-4 days

Mass Production: 7-15 days(depend on the quantity)



Payment Terms

T/T,Western Union



Packing and Shipment

Vacuum package in carton

LED Tube LED PCB Assembly PCBA



Factory Capability



Item

Manufacturing Capability

Surface Treatment

OSP
Immersion Gold Immersion Silver Immersion Tin Lead Free HAL Plating Silver

PCB Layer Type

Single side,Double side

Max. Working Panel Size

1500mm*600mm

Min. Working Panel Size

4mm*4mm

AL Substrate Thickness

0.3mm-4mm

Min. Conductor width

0.15mm

Min. Conductor spacing

0.15mm

Min. Drilling hole size

0.2mm

Plate Thickness Tolerance

±0.1mm

Finished Panel Tolerance

±0.1mm

V-CUT Alignment

±0.1mm

Hole Dia Tolerance

±0.05mm

Hole Position Tolerance

±0.076mm

Finished Copper Thickness

35um-105um(1oz-6oz)

Etching Under Cut

>/=2.0

PTH&Panel Plating Uniformity

>90%

Eing/Flash Gold Thickness

1-5u’’

Solder Mask Thickness

15um-35um

Min. Solder Mask Bridge

0.076mm(3mil)

Silk Screen

White/Black(depend on your requirements)

Thermal Conductivity

1.0~20W/MK

Withstand Voltage

AC 2000V,DC 1500~4000V



JHD PCB would like to be your reliable partner in near future!
