Introduction
PCB Assembly is a process that requires knowledge not just of PCB components and assembly but also of printed circuit board design, PCB fabrication and a strong understanding of the final product. Circuit board assembly is just one piece of the puzzle to delivering the perfect product the first time.
San Francisco Circuits is a one-stop solution for all circuit board services so we are often entrenched with the PCB production process from design to assembly. Through our strong network of well-proven circuit assembly and manufacturing partners, we can provide the most advanced and nearly limitless capabilities for your prototype or production PCB application. Save yourself the trouble that comes with the procurement process and dealing with multiple components vendors. Our experts will find you the best parts for your final product.
PCB Assembly Services:
Quick-turn prototype assembly
Turn-key assembly
Partial turn-key assembly
Consignment assembly
RoHS compliant lead-free assembly
Non-RoHS assembly
Conformal coating
Final box-build and packaging
PCB Assembly Process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
Testing Services
X-Ray (2-D and 3-D)
BGA X-Ray Inspection
AOI Testing (Automated Optical Inspection)
ICT Testing (In-Circuit Testing)
Functional Testing (at the board & system level)
Flying Probe
Capabilities
Surface Mount Technology / Parts (SMT Assembly)
Through-Hole Device / Parts (THD)
Mixed Parts: SMT & THD assembly
BGA / Micro BGA / uBGA
QFN, POP & lead-less chips
2800 pin-count BGA
0201 / 1005 passive components
0.3 / 0.4 Pitch
PoP Package
Flip-chip under-filled CCGA
BGA Interposer / Stack-up
and more…
Product Details:
Payment & Shipping Terms:
|
| High Light: | pcb assembly services,electronics assembly |
||
|---|---|---|---|

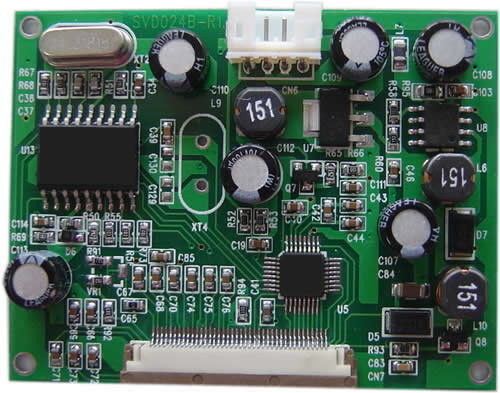

Contract Electronic Assmly Printed Circuit Board Assemblies , PCB Assy Manufacturers
Quick Details
Application Description
Files request
Technical Capabilities
|
Type of assembly |
THD (Thru-hole device) / Conventional SMT (Surface-mount technology) SMT & THD mixed Double-sided SMT and/or THD assembly |
|
Order quantity |
1 to 100,000 |
|
Components |
Passives, smallest size 0201 Fine pitch to 08 Mils Leadless chip carriers/ BGA, VFBGA, FPGA & DFN Connectors and terminals |
|
Component packaging |
Reels Cut tape Tube Loose parts |
|
Board dimensions |
Smallest size: 6mm x 6mm Largest size: 600mm x 400mm |
|
Board shape |
Rectangular Round, Slots, Cutouts, Complex, Irregular |
|
Board type |
Rigid Flexible Rigid-flexible |
|
Solder Type |
Leaded and Lead-Free Water soluble solder paste Manual soldering for special parts, e.g. wires and temperature sensitive parts. |
|
Design file format |
Gerber RS-274X, 274D, Eagle and AutoCAD’s DXF, DWG BOM (Bill of Materials) Pick and Place file (XYRS) |
PCB Assembly Production Flow Chart
Testing Procedures
We perform multiple quality assurance procedures before shipping out any board. These include:
Visual inspection
X-ray Inspection
AOI (Automated Optical Inspector),
ICT (in-circuit test), and BGA Rework
Functional test (test modules need to be supplied) .
Quick turn lead times
If all the parts are available, normally the full turnkey pcb assembly job can be finished within 5 to 10 days in our factory. This means that the order can be delivered within three weeks once turnkey job start.
Service Guarantee
We make sure to serve each customer professionally, truthfully and friendly to the best of ourability. We will gladly re-work your project if your project isn’t 100% satisfactory.
Get a quick quote now
By sending in a bill of material, gerber files including assembly drawing and we will have a quotation back to you within hours. With Shenzhen hengda there is never a hidden cost and our prices are very competitive and reasonable.
