Introduction
PCB Assembly is a process that requires knowledge not just of PCB components and assembly but also of printed circuit board design, PCB fabrication and a strong understanding of the final product. Circuit board assembly is just one piece of the puzzle to delivering the perfect product the first time.
San Francisco Circuits is a one-stop solution for all circuit board services so we are often entrenched with the PCB production process from design to assembly. Through our strong network of well-proven circuit assembly and manufacturing partners, we can provide the most advanced and nearly limitless capabilities for your prototype or production PCB application. Save yourself the trouble that comes with the procurement process and dealing with multiple components vendors. Our experts will find you the best parts for your final product.
PCB Assembly Services:
Quick-turn prototype assembly
Turn-key assembly
Partial turn-key assembly
Consignment assembly
RoHS compliant lead-free assembly
Non-RoHS assembly
Conformal coating
Final box-build and packaging
PCB Assembly Process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
Testing Services
X-Ray (2-D and 3-D)
BGA X-Ray Inspection
AOI Testing (Automated Optical Inspection)
ICT Testing (In-Circuit Testing)
Functional Testing (at the board & system level)
Flying Probe
Capabilities
Surface Mount Technology / Parts (SMT Assembly)
Through-Hole Device / Parts (THD)
Mixed Parts: SMT & THD assembly
BGA / Micro BGA / uBGA
QFN, POP & lead-less chips
2800 pin-count BGA
0201 / 1005 passive components
0.3 / 0.4 Pitch
PoP Package
Flip-chip under-filled CCGA
BGA Interposer / Stack-up
and more…
Product Details:
Payment & Shipping Terms:
|
| Layer: | 2L | Material: | FR4 TG135 |
|---|---|---|---|
| Thickness: | 1.6mm | Surface: | HASL |
| High Light: | double sided circuit board,double side pcb |
||

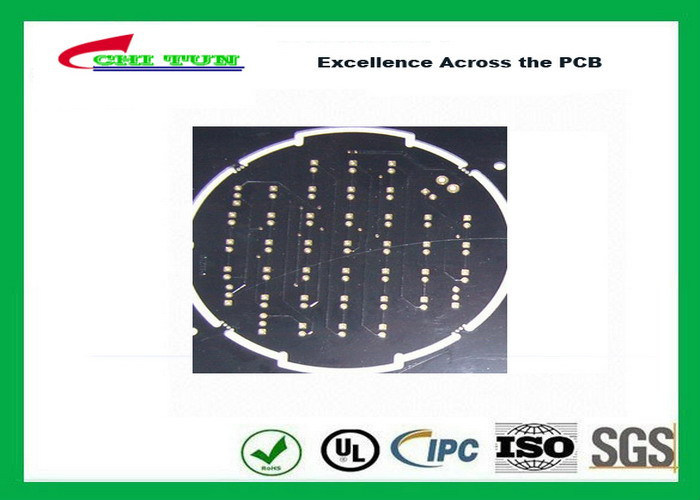

Black Solder Mask Round 2 Layer PCB Surface Treatment HASL PCB Board Assembly
|
|
Product Description |
|
Model Number: |
CTEML0210027 |
|
Number of Layer: |
2layer |
|
Material: |
FR4 |
|
Finish Thickness: |
1.6mm |
|
copper: |
1/1OZ |
|
PCB Size : |
100X100mm |
|
Line Width/line space |
10/10mil |
|
Min.Hole size : |
0.45mm |
|
Surface Finish: |
HASL |
|
|
Black solder mask |
|
|
white silkscreen |
|
|
CNC , tab hole |
|
Place of Origin: |
China |
|
Brand Name: |
CHITUN |
|
Certification: |
UL,ROHS,ISO |
|
Standard: |
IPC standard |
ChiTun produce all of type Double Side printed circuit board with HASL, lead free HASL, ENIG, Flash gold, Thick gold, Selective gold plating, OSP, Selective OSP /HASL, Immersion Tin, Immersion Silver, and we have many types of material options ,CEM-3 and FR4 ect..
ChiTunPCB’s Advantages
1) Integrate Industry chain, we have 2 our own and holding companies for manufacturing components and PCBs. We can do PCB, PCB Assembly, ODM, OEM and EMS one stop service, can ensure high quality and low price.
2) Professional, we have imported and advanced WORLD FAMOUS BRAND led pcb producing and inspection equipment. We have more than 60 experienced engineers to keep our process and technology support, we have our own corporation culture and management system ISO9001:2008 to courage our staffs with high efficiency.
3) Excellent Service, our experienced engineers and advanced equipments can control the producing, inspection and after service to satisfy our customers need, and our dedicate sales team can provide 24 hours service.
Contact Person: Miss. aaa
Tel: 86 755 8546321
Fax: 86-10-66557788-2345
