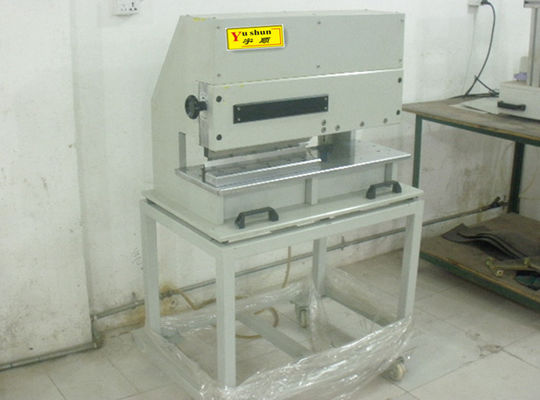

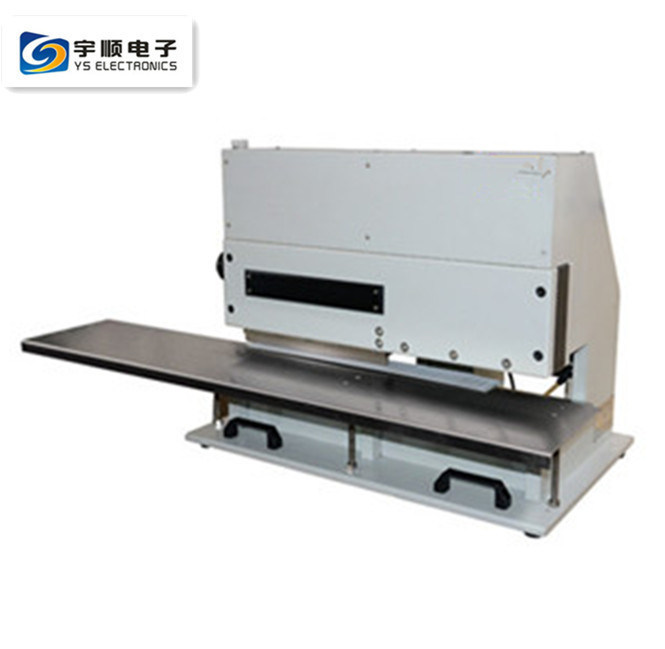

Pneumatic PCB Separator V Cut Metal PCB Board Assembly
1. Motorized Linear Blade Depanelizer ( YSVC-3)
2. Shears boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors
3. Operator foolproof! Panels cannot be inserted into the knives except on the score line
4. Pneumatically driven
5. Handles high components up to 1"
6. Bow waves that can occur with round knives are avoided
7. Easy adjusting of distance between knives
V-cut PCB separator Specification:
| Model: |
YSVC-3 |
| The Longest Minimize |
unlimted |
| Package Size |
780mmx500mmx620mm |
| Minimize thickness |
0.3-3.5mm |
| Machine Weight |
215Kg |
V-cut PCB separator Scope of application :
1. Cut any length metal board more safety and easily.
2. Separates long boards directly,without turn direction .
3. Separates boards up to 2.0mm thick Metal Board
4. Shears boards safely with parts as close as 1 mm to the score line,including ceramic capacitors
5. Operator foolproof! Panels cannot be inserted into the knives except on the score line
6. Handles high components up to50mm
7. Bow waves that can occur with round knives are avoided
8. Easy adjusting of distance between knives
V-cut PCB separator
1. Max. PCB depaneling length is unlimted
2. Depaneling PCB without bending and tension stress
3. Safety use, easy operation
4. Depaneling process without vibrations
V-cut PCB separator Features:
1. The machine was designed to depanel pre-scored PCB carefully, without bending and tension stress.
2. Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the depaneling process, or thin board even to 0.3mm can be worked safely.
3. Depaneling process without vibrations
4. PCB depaneling control method is by pneumatic-driven and electromagnetic valve
5. PCB control operation is that operator stamps the foot pedal to depanel PCB
6. Highest components near the v groove of PCB can be up to 50mm
7. Gap for insertion of PCB can be easy to adjust Optional Information
