G2R-1 12VDC - Omron Electronics LLC - PCB Relay A Power Relay for a Variety of Purposes with Various Models

Name: G2R-1 12VDC - Omron Electronics LLC - PCB Relay A Power Relay for a Variety of Purposes with Various Models
Brand: OMRON
SKU: G2R-1 12VDC
Rating: 4.8 (137 reviews)

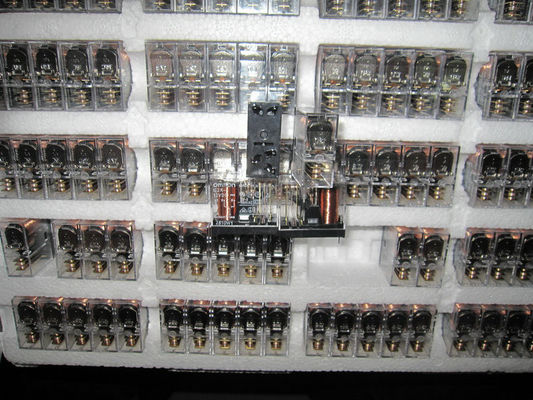

: Large Image : G2R-1 12VDC - Omron Electronics LLC - PCB Relay A Power Relay for a Variety of Purposes with Various Models

Product Details:

Contact Now

Detailed Product Description

Highlight:

general purpose relays

Time delay relay

Quick Detail:

G2R-1 12VDC - Omron Electronics LLC - PCB Relay A Power Relay for a Variety of Purposes with Various Models

Description:

Conforms to VDE0435 (VDE approval: C250

insulation grade), UL508, CSA22.2, SEV,

SEMKO.

Meets VDE0700 requirements for household

products according to VDE0110.

Clearance and creepage distance: 8 mm/8 m.

Models with CTI250 material available.

High-sensitivity (360 mW) and high-capacity

(16 A) types available.

Double-winding latching type available.

Plug-in with test button and quick-connect

terminals available.

Highly functional socket available.

Specifications:

Datasheets	G2R Series G2R VDC (Rated Coil Voltage)
Product Photos	G2R-1C
Other Related Documents	How to Read Date Codes
Product Training Modules	Medical Solutions
Catalog Drawings	G2R-1,1A-E Series G2R-1(4) Series Footprint G2R-1(4) Series Circuit
Standard Package	100
Category	Relays
Family	Power Relays, Over 2 Amps
Series	G2R
Packaging	Bulk
Relay Type	General Purpose
Coil Type	Non Latching
Coil Current	43.6mA
Coil Voltage	12VDC
Contact Form	SPDT (1 Form C)
Contact Rating (Current)	10A
Switching Voltage	380VAC, 125VDC - Max
Turn On Voltage (Max)	8.4 VDC
Turn Off Voltage (Min)	1.8 VDC
Features	Sealed - Flux Protection
Mounting Type	Through Hole
Termination Style	PC Pin
Contact Material	Silver Alloy
Operate Time	15ms
Release Time	5ms
Coil Power	530 mW
Coil Resistance	275 Ohms
Operating Temperature	-40°C ~ 70°C
Dynamic Catalog	G2R Series
Other Names	G2R-1-DC12-ND G2R112DC G2R1DC12 G2RN8420G Z2839
