Material
FR-4,FR2.Taconic,Rogers, CEM-1 CEM-3,ceramic , crockery Metal-backed Laminate
Surface Finish
HASL(LF), Gold plating, Electroless nickel immersion gold, Immersion Tin, OSP(Entek)
Description
1. Complete products contract PCB assembly and manufacturing services
2. Circuit boards 2 to 30 layers PCB layout, fabrication, PCB assembly and box build
3.Active and passive components source is directly from original manufacturer
4. Enclosure cabinet case plastic injection molding, metal stamping, manufacture and assembly
5. High-precision 0201 size components SMT technology and lead-free
6. RoHS technology SMT process
7. IC pre-program
8. High-precision E-Testing include: ICT in circuit, BGA repaire device, etc.
Prototype and Mass Printed Board Assembly (PCBA)
Services:
1.Single-sided, double side & multi-layer PCB with competitive price, good quality and excellent service.
2. Cem-1, fr-4, fr-4 high tg, aluminum base material.
3. Hal, hal lead free, immersion gold/ silver/tin, osp surface treatment.
4.100% e-test.
|
Product Details:
Payment & Shipping Terms:
|

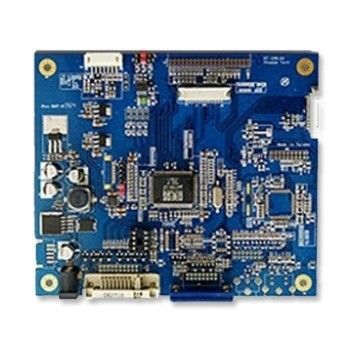

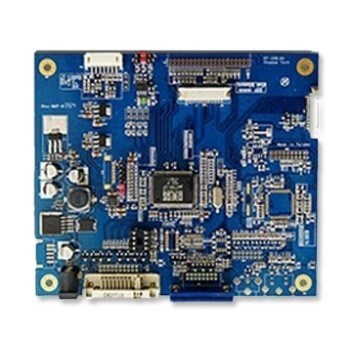

High Quality LCD PCB Board
We're a leading PCB and PCBA manufacturer in China, offering a full range of PCBs and PCBA boards for most applications. All products are manufactured under strict quality control system. OEM, ODM, and EMS service is available for PCBA production. Customers should send us detailed requirements and needs in application for custom PCBA board or PCB board. We’re a best choice for you to find a reliable PCBA manufacturer. Contact us for more details!
Besides this, our printed circuit board products experiences also include telecommunications, automatic mobile assemblies, consumer electronics, computer, medical equipment, industrial products and others no matter it is quick-turn prototype, short-run or high volume mass production.
Feel free to contact us and chect out the wide range of 1-28 layer PCBs: LED pcb, USB pcb, aluminum PCB, flexible PCB, rigid PCB, rigid-flex PCB, FR4 PCB, PCBA, etc.
We offer PCB circuit boards all over the world for 7 years, one type of the PCBs has been used for various size LCD, it is called LCD controller board.
LCD controller board is a driver board which is dedicated to digital TFT LCD module. According to its excellent display function, good stability, and strong compatibility, the LCD PCB is one of the most commonly used printed circuit boards today.
Check this double sided PCB board whether to be suitable for your LCD products, FR4 material, 1.6mm board thickness and more specification in the following:
This type PCB boards are used for LCD controller products such as radio, video player, cell phone, laptop, Ipad, TV and so on.
LCD Controller: Digital View has generally utilised the term LCD Controllers to describe its LCD panel interface boards - this can be likely essentially the most frequent term. Lesser known equivalents include:
A to D Scalar Boards, A/D Scalar Boards
Analog Controller
RGB Board
LCD Driver Board
LVDS adapter
Layer |
1 to 28 layers |
Material type |
FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers |
Board thickness |
0.21mm to 7.0mm |
Copper thickness |
0.5 OZ to 7.0 OZ |
Copper thickness in hole |
>25.0 um (>1mil) |
Size |
Max. Board Size: 23 × 25 (580mm×900mm) |
Min. Drilled Hole Size: 3mil (0.075mm) |
|
Min. Line Width: 3mil (0.075mm) |
|
Min. Line Spacing: 3mil (0.075mm) |
|
Surface finishing |
HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating |
Tolerance
|
Shape tolerance: ±0.13 |
Hole tolerance: PTH: ±0.076 NPTH: ±0.05 |
|
Certificate |
UL, ISO 9001, ISO 14001 |
Special requirements |
Buried and blind vias+controlled impedance +BGA |
Profiling |
Punching, Routing, V-CUT, Beveling |
Provides OEM services to all sorts of printed circuit board assembly as well as electronic encased products. |
Contact us to check out great PCBs and full details, we will reply to you with prices in one working day!
