Material Type:
FR4,non-halogen material ,Aluminum Base, Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180
Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger
Application
PCBs are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries.
FAQ
What are the available holes sizes?
14 mils to 150 mils - 1 mil increments
150 mils to 200 mils - 5 mil increments
above 200 mils - holes would be routed out
We only use drills in imperial units. Files submitted in metric units (mm) would be converted to imperial units (mils) and rounded up to the next mil.
I am used to designing in metric units while the website is specified in imperial units. Is there a conversion chart I can refer to ?
When requesting an online quote, the quote form can handle mm units as well as inches for dimensions.
How do I specify internal cutouts/milling in my design?
All internal cutouts/slots/milling should be specified on the same layer is the board outline. The the minimum routable slot size is 32 mils. During order time, please state this requirement in the "Special Request" section so that our CAM engineers is aware of it. This is not something we encounter often - so there are chances we may overlook it. Make sure it's known to us.
Product Details:
Payment & Shipping Terms:
|
| Base Material: | FR4 | Copper Thickness: | 18um |
|---|---|---|---|
| Board Thickness: | 1.35mm | Min. Hole Size: | 0.5mm |
| Min. Line Width: | 3 Mil | Min. Line Spacing: | 3 Mil |
| Surface Finishing: | ENIG | Number Of Layers: | 10-Layer |
| High Light: | pcb prototype board,pcb prototype assembly |
||

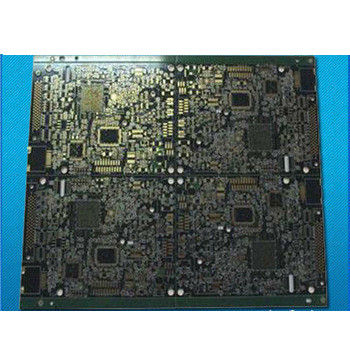

10-layered Board low cost pcb prototype machine
Detail:
(1)PCB and PCBA
(2)PCB Copy
(3)UL,ISO,RoHS,SGS
(4)PCB manufacturer
(5)Small order accepted
(6)high quality and resonable price
Specification:
|
Item |
Capabilities |
|||
|
1.Base Material |
FR-4 / High TG FR-4 / Lead free Materials (ROHS Compliant) / Halogen Free material /CEM-3/CEM-1/ /PTFE/ROGERS/ARLON/TACONIC |
|||
|
2.Layers |
1-30 |
|||
|
3.Finised inner/outer copper thickness |
1-12OZ |
|||
|
4.Finished board thickness |
0.2-7.0mm |
|||
|
Tolerance |
Board thickness≤1.0mm: +/-0.1mm 1<Board thickness≤2.0mm: +/-10% Board thickness>2.0mm: +/-8% |
|||
|
5.Max panel size |
≤2sidesPCB: 600*1500mm Multilayer PCB: 500*1200mm |
|||
|
6.Min conductor line width/spacing |
Inner layers: ≥3/3mil Outer layers: ≥3.5/3.5mil |
|||
|
7.Min hole size |
Mechanical hole: 0.15mm Laser hole: 0.1mm |
|||
|
Drilling precision: first drilling |
First drilling: 1mil Second drilling: 4mil |
|||
|
8.Warpage |
Board thickness≤0.79mm: β≤1.0% 0.80≤Board thickness≤2.4mm: β≤0.7% Board thickness≥2.5mm: β≤0.5% |
|||
|
9.Controlled Impedance |
+/-5% |
|||
|
10. Aspect Ratio |
15:1 |
|||
|
11.Min welding ring |
4mil |
|||
|
12.Min solder mask bridge |
≥0.08mm |
|||
|
13.Plugging vias capability |
0.2-0.8mm |
|||
|
14. Hole tolerance |
PTH: +/-3mil NPTH: +/-2mil |
|||
|
15.Outline profile |
Rout/ V-cut/ Bridge/ Stamp hole |
|||
|
16.Surface treatment |
OSP: 0.5-0.5um HASL: 2-40um Lead free HASL: 2-40um ENIG: Au 1-10U’’ ENEPIG: PB 2-5U’’/ Au 1-8U’’ Immersion Tin:0.8-1.2um Immersion silver: 0.1-1.2um Peelable blue mask Carbon ink Gold plating: Au 1-150U’’ |
|||
|
17. E-testing pass percent |
97% pass for the first time,+/-2%(tolerance) |
|||
|
FQC-Physical Lab: Reliability tests |
||||
|
18.Certificate |
ROHS UL:E327776 ISO9001:2008 IPC SGS |
|||
|
Our equipments |
||||
|
1.Drilling workshop |
4 drilling bits of drilling machine: 4 sets 2 drilling bits of drilling machine: 2 sets |
|||
|
2. photo plotting workshop |
Israel “ORBOTECH” Photo Plotters |
|||
|
3.AOI |
AOI machine |
|||
|
4.IPQC |
“OXFORD” CMI 700 Copper Thickness Tester |
|||
|
5.Impedance test |
USA “Tektronix” DSA 8200 Impedance Tester |
|||
|
6.Outline workshop |
CNC routing machine: 7 sets angle-cutting machine V-cut machine |
|||
|
7.Testing Workshop |
Surpass X-600: 2sets WTD FT-2808: 5sets WTD HV300: 1set |
|||
|
8.X-ray |
X-ray machine |
|||
|
Acceptable file format |
||||
|
GERBER file, PROTEL series, PADS series, POWER PCB series, AutoCAD series. |
||||
