Material
FR4 fiberglass panels, aluminum plate, copper substrate, iron substrate, PTFE, F4B, F4BM, Kangtai Li, CER-10, Rogers, FPC soft board and some other high-precision plate.
Crafts
Light copper, nickel, gold, tin spray; Immersion Gold, antioxidant, HASL, immersion tin, etc.
Double Layer PCB Leadfree HASL with blue solder mask
- Leadfree HASL Surface finish required to meet ROHS compliant
-FR-4 material with 0.25mm-6mm boards thickness
-Copper weight:1/3OZ,0.5OZ,1OZ,2OZ,3OZ,4OZ,5OZ,6OZ
-3-3mils min track width & spacing -0.2mm min finished hole size
-Certificate: UL,ISO14001,TS16949 and ROHS
-Company management: ISO9001
-Markets: Europe, America, Asia,etc.
Application
electronic products, like
computer peripherals,aerospace,telecommunication,automotives,medicaldevices,camermas,optoelectronic devices,VCD,LCD and verious other comsumer electronic products.
Product Details:
Payment & Shipping Terms:
|
| High Light: | two layer pcb,custom printed circuit boards |
||
|---|---|---|---|

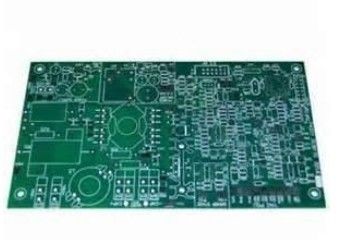

FR-4 CEM-1 two layer / 2 Layer pcb, pads pcb with 1.6mm Board Thickness design
Our supply ability about PCB
Layers:1-30layers
Min.Hole Size:0.2mm
Min.Line spacing:0.075mm
Min.Line Width:0.075mm
Copper Thickness:0.5oz-5oz
Board Thickness:0.2mm-1.6mm
Base Material:FR-4 CEM-1, 94HB, 94VO,High TG, Rogers,F4B, Aluminum
Surface finished:Immersion Gold/Tin HASL OSP lead free HASL,Gold plating
Solder mask color: green/yellow/black/white/red/blue
Shape tolerance: ±0.13
Certificate: UL, RoHS,ISO9001
Special requirements: Buried and blind vias/ controlled impedance /BGA
Profiling: Punching, Routing, V-CUT, Beveling
