Service Details:
1) Fast PCB with in 12 hours, 24 hours and 48 hours are available.
2) No MOQ for PCB ,PCBA ,FPC and Alu pcb.
3) Boards are RoHS compliant with UL.
4) Engineers with over 10 years of working experience can offer you professional suggestions.
5) Factory production Capability of 15000 sqm/month.
6) Quality inspection standard: IPC-6012 Class II.
7) Base material: FR4, Hi-tg FR4, Aluminum, High frequency (Rogers, Taconic, F4B, Arlon etc.), PI, PET.
Our Advantages (why us ?):
1) Every board is to IPC Class II or higher standard.
2) All boards are UL approved and made in ISO-9001 certified facilities.
3) 100% tested (flying probe or E-test).
4) PCB Design Rule Check with no extra cost.
5) Impedence control test.
6) Free panelizing.
7) Special price/service package for partners.
8) Professional engineering support. We work with customers closely to ensure the boards are standards compliant.
9) On time delivery.
10) No minimum/maximum order.
11) Worldwide shipping.
FAQ
What are the available holes sizes?
14 mils to 150 mils - 1 mil increments
150 mils to 200 mils - 5 mil increments
above 200 mils - holes would be routed out
We only use drills in imperial units. Files submitted in metric units (mm) would be converted to imperial units (mils) and rounded up to the next mil.
I am used to designing in metric units while the website is specified in imperial units. Is there a conversion chart I can refer to ?
When requesting an online quote, the quote form can handle mm units as well as inches for dimensions.
How do I specify internal cutouts/milling in my design?
All internal cutouts/slots/milling should be specified on the same layer is the board outline. The the minimum routable slot size is 32 mils. During order time, please state this requirement in the "Special Request" section so that our CAM engineers is aware of it. This is not something we encounter often - so there are chances we may overlook it. Make sure it's known to us.
Product Details:
Payment & Shipping Terms:
|
| High Light: | hard drive pcb boards,replace hard drive pcb |
||
|---|---|---|---|

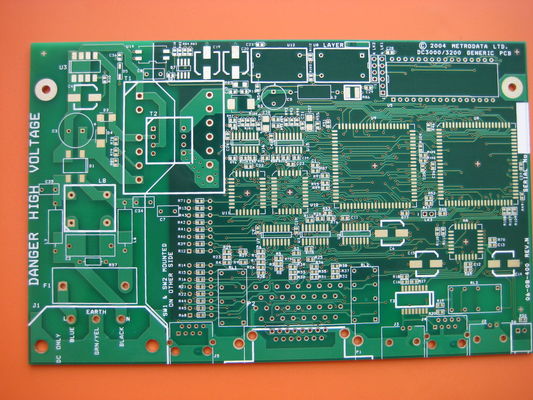

Hard Drive Printed Circuit FR4 Custom PCB Boards with Aluminum or Copper Base
Description
1. Professional manufacturer of PCB and PCB assembly specialized in single-sided PCB, double-sided PCB, multilayer PCB, PCB layout and design and PCB assembly
2. Material Type: FR4,non-halogen material ,Aluminium Base,Copper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180
3. Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger
Application
Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries
Advantage
1. PCB factory directly
2. PCB Have the comprehensive quality control system
3. PCB good price
4. PCB quick turn delivery time from 48hours.
5. PCB certification(ISO/UL E354810/RoHS)
6. 8 years experience in exporting service
7. PCB is no MOQ/MOV.
8. PCB is high quality.Strict through theAOI(Automated Optical Inspection),QA/QC,fly porbe ,Etesting
Specifications
|
|
High precision prototype |
PCB bulk production |
|
|
Max Layers |
1-28 layers |
1-14 layers |
|
|
MIN Line width(mil) |
3mil |
4mil |
|
|
MIN Line space(mil) |
3mil |
4mil |
|
|
Min via (mechanical drilling) |
Board thickness≤1.2mm |
0.15mm |
0.2mm |
|
Board thickness≤2.5mm |
0.2mm |
0.3mm |
|
|
Board thickness＞2.5mm |
Aspect Ration≤13:1 |
Aspect Ration≤13:1 |
|
|
Aspect Ration |
Aspect Ration≤13:1 |
Aspect Ration≤13:1 |
|
|
Board thickness |
MAX |
8mm |
7mm |
|
MIN |
2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm |
2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm |
|
|
MAX Board size |
610*1200mm |
610*1200mm |
|
|
Max copper thickness |
0.5-6oz |
0.5-6oz |
|
|
Immersion Gold/ Gold Plated Thickness |
Immersion Gold:Au,1—8u” |
|
|
|
Hole copper thick |
25um 1mil |
25um 1mil |
|
|
Tolerance |
Board thickness |
Board thickness≤1.0mm:+/-0.1mm |
Board thickness≤1.0mm:+/-0.1mm |
|
Outline Tolerance |
≤100mm:+/-0.1mm |
≤100mm:+/-0.13mm |
|
|
Impedance |
±10% |
±10% |
|
|
MIN Solder mask bridge |
0.08mm |
0.10mm |
|
|
Plugging Vias capability |
0.25mm--0.60mm |
0.70mm--1.00mm |
|
