PCB Board Assembly

  • High Precision PCB Board Assembly suppliers
  • High Precision PCB Board Assembly suppliers







Introduction



PCB Assembly is a process that requires knowledge not just of PCB components and assembly but also of printed circuit board design, PCB fabrication and a strong understanding of the final product. Circuit board assembly is just one piece of the puzzle to delivering the perfect product the first time.
San Francisco Circuits is a one-stop solution for all circuit board services so we are often entrenched with the PCB production process from design to assembly. Through our strong network of well-proven circuit assembly and manufacturing partners, we can provide the most advanced and nearly limitless capabilities for your prototype or production PCB application. Save yourself the trouble that comes with the procurement process and dealing with multiple components vendors. Our experts will find you the best parts for your final product.




PCB Assembly Services:


Quick-turn prototype assembly
Turn-key assembly
Partial turn-key assembly
Consignment assembly
RoHS compliant lead-free assembly
Non-RoHS assembly

Conformal coating
Final box-build and packaging





PCB Assembly Process


Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing




Testing Services


X-Ray (2-D and 3-D)
BGA X-Ray Inspection
AOI Testing (Automated Optical Inspection)
ICT Testing (In-Circuit Testing)
Functional Testing (at the board & system level)
Flying Probe




Capabilities


Surface Mount Technology / Parts (SMT Assembly)
Through-Hole Device / Parts (THD)
Mixed Parts: SMT & THD assembly
BGA / Micro BGA / uBGA
QFN, POP & lead-less chips
2800 pin-count BGA
0201 / 1005 passive components
0.3 / 0.4 Pitch
PoP Package
Flip-chip under-filled CCGA
BGA Interposer / Stack-up
and more…

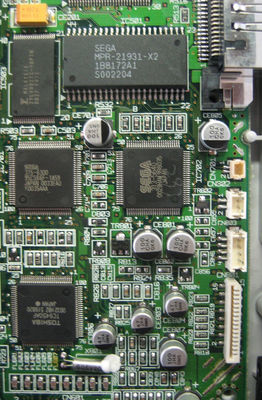

Multi Layer Prototype PCB Board Assembly with 2.0oz copper thickness automobile

Multi Layer Prototype PCB Board Assembly with 2.0oz copper thickness automobile
Multi Layer Prototype PCB Board Assembly with 2.0oz copper thickness automobile

Large Image :  Multi Layer Prototype PCB Board Assembly with 2.0oz copper thickness automobile

Product Details:

Place of Origin: China
Brand Name: SYF
Certification: UL,ISO9001:2008,ROHS,REACH,HALOGEN FREE,SGS
Model Number: SYF-001
Characteristic Service: ODM/OEM/PCBA
Features 1: Gerber file needed
Features 2: 100% E-test
Features 3: Quality guarantee and professional after-sale service

Payment & Shipping Terms:

Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

smt pcb assembly

,

pcb prototype assembly



Multi Layer Prototype PCB Board Assembly with 2.0oz copper thickness automobile



1. Customized PCB Assembly Service of Automotive Battery Charger ,  FR-4  Tg 180 Printed Circuit Board Assembly )





2

Key Specifications/Special Features

1

We SYF have 6 PCB production lines and 4 advanced SMT lines with high speed.

2

All kinds of integrated circuits are accepted,such as SO, SOP, SOJ, TSOP, TSSOP,  QFP, DIP, CSP,BGA and U-BGA , Because Our placement precision can reach chip +0.1mm on integrated circuit parts.

3

We SYF can provide service of 0201 chip placement, through-hole components insertion and finished products fabrication, testing and packaging.

4

SMT/SMD assembly and through-hole components insertion

5

IC preprogramming

6

Function verification and burn in testing

7

Complete unit assembly (which including plastics, metal box, coil, cable inside and more)

8

Environmental coating

9

Engineering including end of life components, obsolete component replace and design support for circuit, metal and plastic enclosure

10

Packaging design and production of customized PCBA

11

100% quality assurance

12

High mixed, low volume order is also welcomed.

13

Full component procurement or the substitute components sourcing

14

UL,ISO9001:2008, ROSH ,REACH,SGS,HALOGEN-FREE compliant





3.PCB Assembly process capability



PRODUCTION CAPABILITY OF PCB ASSEMBLY

Stencil Size Range

 756 mm x 756 mm

Min. IC Pitch

 0.30 mm

Max. PCB Size

 560 mm x 650 mm

Min. PCB Thickness

 0.30 mm

Min. Chip Size

 0201 (0.6 mm X 0.3 mm)

Max. BGA Size

 74 mm X 74 mm

BGA Ball Pitch

 1.00 mm (Min) / F3.00 mm (Max)

BGA Ball Diameter

 0.40 mm (Min) /F1.00 mm (Max)

QFP Lead Pitch

 0.38 mm (Min) /F2.54 mm (Max)

Frequency of Stencil Cleaning

 1 time / 5 ~ 10 Pieces

Type of Assembly

 SMT and Thru-hole

Solder Type

 Water Soluble Solder Paste,Leaded and Lead-free

Type of Service

 Turn-key,Partial Turn-key or consignment

File Formats

 Bill of Materials(BOM)

 Gerber Files

 Pick-N-Places(XYRS)

Components

 Passive Down to 0201 Size

 BGA and VF BGA

 Leadless Chip Carries/CSP

 Double Sided SMT Assembly

 BGA Repair and Reball

 Part Removal and Replacement

Component Packaging

 Cut Tape,Tube,Reels,Loose Parts

Testing Method

 X-RAY Inspection and AOI Test

Order of Quantity

 High Mixed,Low Volume Order is also welcomed

Remarks: In order to get accurate quote,the following information is required

1

Complete Data of Gerber Files for the Bare PCB Board.

2

Electronic Bill of Material(BOM) / Parts list detailing manufacturer's part number, quantity usage of components for reference.

3

Please state whether we can use alternative parts for passive components or not.

4

Assembly Drawings.

5

Functional Test Time Per Board.

6

Quality Standards Required

7

Send Us Samples (if available)

8

Date of the quote needs to be submitted





4.SYF’s manufacturing experience of SMT assembly,but not list the whole:











Note Book fields

CHARGER BOARD

INVERTER

POWER CPU

LVDS CARD

IR BOARD

LCD MOTHERBOARD

LED BOARD

RAM CARD

DATA BOARD

BATT BOARD

DVR MOTHERBOARD

USB BOARD

CARD READER

AUDIO BOARD

ISDN MODEN

PC fields

2.5 inch HDD

PC/MAC FDD

DOCKING
PORT

PORT REPILICATOR

PCMCIA CARD

3.5 inch HDD

SATA HDD

ADAPTER

DVD ROM

SSD

Telecom fields

DVBT.ATSC TV

GPS UNIT

CAR GPS UNIT

ADSL MODEN

3.5inch DVB-T RECEIVER

Audio & Video fields

MPEG 4 PLAYER

KVM SWITCH

E-BOOK READER

HDMI BOX

DVI BOX

Electronic Security fields

LCD TV MOTHERBOARD

DVR MOTHERBOARD

CCD BOARD

IP CAMERA

CCTV CAMERA

Health

& Medical fields

DIGITAL TEMS UNIT

EAR THERMOMETER

BLOOD GLUCOSE TEST METERS

BODY FAT MONITOR

DIGITAL BLOOD PRESSURE MONITOR

LED Application fields

LED AUTO LAMP

LED ROPE LIGHT

LED BULB

OUTDOOR

LED DISPLAY

PROJECTION LIGHTING

Test Instrument fields

OSCILLOSCOPE

POWER SUPPLY

L.C.R. METER

LOGIC ANALYZER

MULTIMETER

Consumer Electronics fields

SENSORS BOARD

DRIVER BOARD

USB DVIVER BOARD

BAR-CODE PRINTER

MP3 PLAYER

SOLAR PANEL MODULE

PEN TABLET

USB HUB

USB CARD READER

USB FLASH DRIVE
