Double Sided PCB

  • High Precision Double Sided PCB suppliers
  • High Precision Double Sided PCB suppliers





Introduction


Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside

Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.





Advantages


Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.





Double Circuit Board Design Steps



     1. Prepare circuit schematics

     2. Create a new file and loaded PCB component package library

     3, planning board

     4, into the network table and components

     5, automatic layout components

     6, layout adjustment

     7, the network density analysis

     8, wiring rules set

     9, automatic routing

     10, manually adjust the wiring

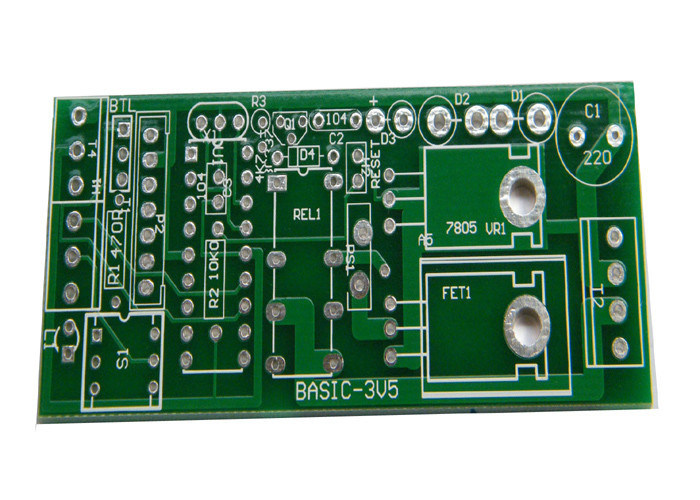

Double Sided printed circuit board prototyping , Leaded HASL Customized PCB

Double Sided printed circuit board prototyping , Leaded HASL Customized PCB
Double Sided printed circuit board prototyping , Leaded HASL Customized PCB Double Sided printed circuit board prototyping , Leaded HASL Customized PCB

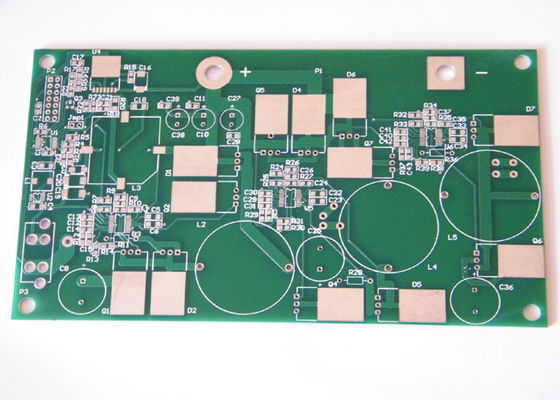

Large Image :  Double Sided printed circuit board prototyping , Leaded HASL Customized PCB

Product Details:

Place of Origin: Shenzhen, China
Brand Name: AGILECIRCUIT
Certification: ISO9001,UL, RoHs, TS16949
Model Number: doublesidedpcb1012
Trade Terms: EX-WORK, DDU TO DOOR, FOC

Payment & Shipping Terms:

Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

double sided printed circuit board

,

prototype printed circuit board



Double Sided printed circuit board prototyping , Leaded HASL Customized PCB





Product Name:

Double Sided PCB Board

Material:

Standard FR4

Copper Thickness

35um

Board Thickness:

1.6mm

Manufacturing Qty

Prototyping, low volume

Surface Finish:

Leaded HASL



Description:



Double sided PCB board, single sided board, multilayer circuit boards, aluminum PCB, impedance PCB board, FPC circuit board etc. belong to printed circuit board PCB type. Double sided PCB board (double-sided PCB, double layer PCB, 2 layers PCB) is a kind of widely used and important type in printed circuit board PCB. Double side PCB is the extension of single sided PCB when a single side circuit is not enough, it will need to go to the opposite side. There will be conductor/line on both two sides. Two Layer PCB board is with another feature is that it has PTH vias. Simply speaking, double sided PCB board is with two-sided traces, top layer and bottom layer.



Double sided PCB board, single sided PCB and multilayer PCB board manufacturing is our main service. . With decade’s years of experience in this PCB field, we are now serving customers from more than 40 countries in various electronic industries. Based in China, we mainly specializes in prototypes and medium volume custom PCB boards manufacturing with high quality and low cost






Specification:




Layer count

Single sided, double sided, multilayer to 26 Layers

Base material

FR4, High Tg FR4, CEM-3, Aluminum Base, Copper core, High frequency, Polyimide (PI), Polyester(PET) ,Rogers RO4350,Polyimide,Teflon,Getek Copper Clad Thermal Substrates

Board thickness

0.2mm, 0.4mm, 0.8mm, 1.0mm. 1.2mm.1.6mm.2.0mm-2.4mm, 3.2mm,4.0mm

Maximum Board Size

580mmx700mm

Copper thickness

0.5oz, 1oz, 2oz ,3oz., 4oz,5oz,6oz

Minimum Hole Size

0.2mm

Minimum Trace/Space

4mil/4mil

Surface finish

HASL(Hot Air Solder Level), Pb Free HASL , Electroless Nickel and Immersion Gold (ENIG), Plating Gold, Gold Fingers (Gold Connector), Silver Immersion, Organic Surface Protectant (OSP), Electroless Nickel Electroless Palladium Immersion Gold (ENEPIG),Hard Gold

Solder Mask

Green, Red, Blue, Black, Matte Green, Orange

Silk Screen

White, Yellow, Black

PCB Fabrication

Scoring, Route, V-Score, Counter Sink, Bevel, Cutouts and Slots

Quality Control

IPC 6012 Class 2, Electrical Testing, Flying probe Testing, 100% Netlist Testing

Special Technology

Impendence Control, Differencial PCB printed circuit board, Peelabemask PCB , High Density PCB HDI, Heavy copper PCB ,Metal Core circuit boards ,Copper Clad PCB printed circuit board, Blind & Buried Vias, Laser Drilled Vias, Burn-in Boards, Flex Boards, Rigid Flex PCB printed circuit board , Edge half plated thru hole Circuit boards, Selective Plating Hard Gold, Special Thin or Special Thick PCB board, PCB with Resin Plugged Hole



Applications:



Digital Theater Systems,Electronic Monitoring Systems,Vacuum Tube Electronics Displays, Linear Motors and Motion Products, Computer Diagnostic Tools, Lottery Pull-Tab and Scratch-off Ticket Machines, Point-of- Sale (POS) Electronic Security Systems, Automated ITVMs (Ticket Machines), Self-Service ATMs and Kiosks, Security Door Controls, Door Card Control, Electronic Lock, Aircraft Parts/Equipment, Switching Systems, Terminal Equipment, Publicly Accessible Equipment Vending Machines, Precision Positioning Systems, Robotics System, Water Purification System, Antenna, Guitar Electronics, Position Indicators, Controllers, Memory and Non-Memory Products, Networking, Wireless Communications





Advantages:


On Spec, on Time, on Budget

Fast Quotation, cost aggressive

24 hour prompt response

Flexible tackle and quick operation on urgent issue

High & advanced production capabilities

ISO/TS approved facilities

Technical and professional support

Integrated supply service, one stop PCB solution



Contact us today for your PCB board requirement!
