HDI High Density Universal PCB Board 10 Layers with Blind / Burried Vias

PCB Certifications
Good quality Flexible PCB Board
Good quality Flexible PCB Board
Customer Reviews
The board quality is very good! We have been WonDa’s customer for more than 4 years. Your good service and quality is too good.

—— Jay

Cooperation is very satisfactory and the Company of the past few years, we are very willing to continue long-term cooperation.

—— Rob

The board quality is very good! I’m surprised with the low cost and quick delivery. It is totally out of my expectation. I will definitely come back.

—— Victoria, Australia

I'm Online Chat Now

HDI PCB Board

  • High Precision HDI PCB Board suppliers
  • High Precision HDI PCB Board suppliers





Material


FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180





Surface Treatment


HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger





Advantage



1.PCB factory directly
2.PCB high quality
3.PCB good price
4.PCB quick time
5.PCB certification(ISO/UL E354810/RoHS)





Capability:



          -High Frequency (TACONIC material)/TG/Density/precision impedance controlled boards

          -Heavy Copper PCB, Metal based PCB. Hard Gold PCB, Blind &Buried vias boards,

Halogen Free PCB, Aluminum-backed Boards

          -Gold finger+ HAL & Leadfree HASL PCB, Leadfree compatible PCB

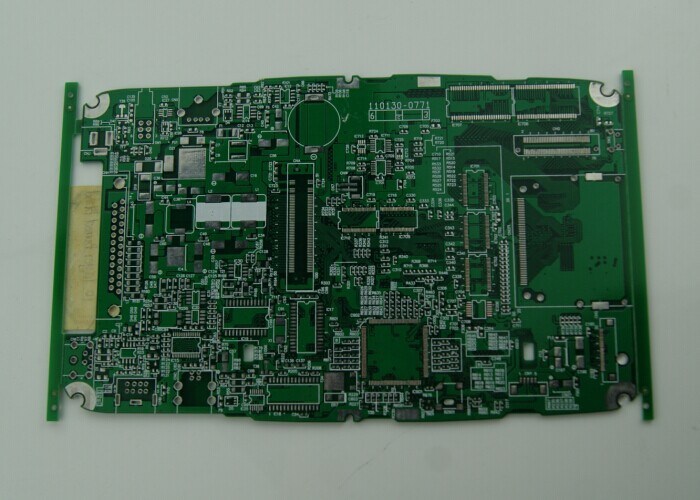

HDI High Density Universal PCB Board 10 Layers with Blind / Burried Vias

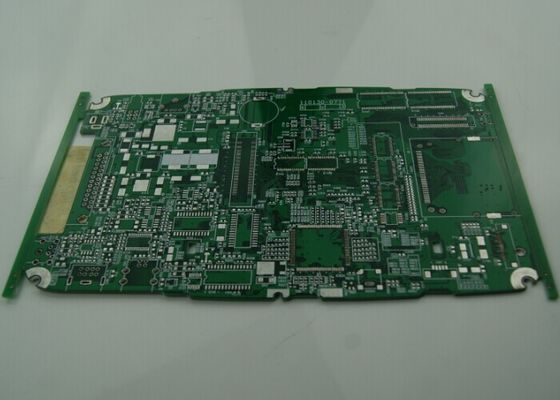

HDI High Density Universal PCB Board 10 Layers with Blind / Burried Vias

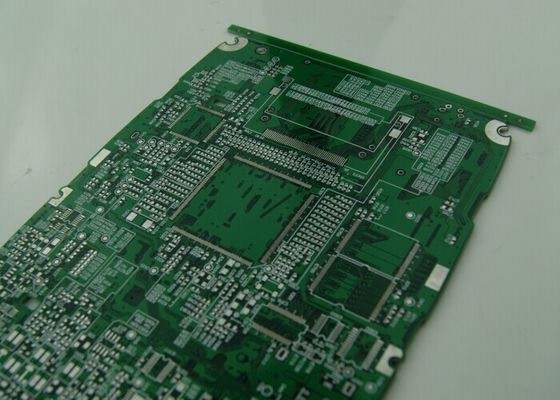

HDI High Density Universal PCB Board 10 Layers with Blind / Burried Vias HDI High Density Universal PCB Board 10 Layers with Blind / Burried Vias HDI High Density Universal PCB Board 10 Layers with Blind / Burried Vias

Large Image :  HDI High Density Universal PCB Board 10 Layers with Blind / Burried Vias

Product Details:

Place of Origin: China
Brand Name: LT CIRCUIT
Certification: UL E354810, SGS, ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ
Price: Negotiable
Packaging Details: Vacuum + Carton
Delivery Time: 3-20 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: Ten thousand square meters/month
Detailed Product Description
High Light:

custom circuit board

,

hdi circuit boards

HDI High Density Universal PCB Board 10 Layers with Blind / Burried Vias







Key Specifications/Special Features







Number. of Layers: 10
Laminate Material: FR4
Surface Finish: HASL
Copper Thickness: 1 oz
Board Thickness: 1.2 mm
Board Size:
Color of Mask: Green
Color of Silkscreen: White
Flammability: UL 94V-0
Workmanship: Compliance with IPC-A-600 & IPC-6012 CLASS II
Thermal Conductivity -



Capacity

  High precision prototype PCB bulk production
Max Layers 1-28 layers 1-14 layers
MIN Line width(mil) 3mil 4mil
MIN Line space(mil) 3mil 4mil
Min via (mechanical drilling) Board thickness≤1.2mm 0.15mm 0.2mm
Board thickness≤2.5mm 0.2mm 0.3mm
Board thickness2.5mm Aspect Ration≤13:1 Aspect Ration≤13:1
Aspect Ration Aspect Ration≤13:1 Aspect Ration≤13:1
Board thickness MAX 8mm 7mm
MIN 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size 610*1200mm 610*1200mm
Max copper thickness 0.5-6oz 0.5-6oz

Immersion Gold/

Gold Plated Thickness

Immersion Gold:Au,1—8u”
Gold finger
:Au,1—150u”
Gold Plated
:Au,1—150u”
Nickel Plated
:50—500u”

Hole copper thick 25um 1mil 25um 1mil
Tolerance Board thickness Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Outline Tolerance ≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
Impedance ±10% ±10%
MIN Solder mask bridge  0.08mm  0.10mm
Plugging Vias capability  0.25mm--0.60mm  0.70mm--1.00mm







Description



1. Professional manufacturer of PCB specialized in single-sided PCB, double-sided PCB, multilayer PCB, PCB layout and design.

2. Material Type: FR4, non-halogen material, Aluminum Base, Cooper Base, high frequency material, Thick copper foil, 94-V0(HB), PI Material; HIGH TG: SL S1000-2; ITEQ: IT180

3. Surface Finish: HASL, Immersion Gold, Immersion Tin, Immersion silver, Gold Finger, OSP, HASL (Immersion Gold, OSP, Immersion silver, Immersion Tin) + Gold Finger







Advantage



1. Factory directly
2. Comprehensive quality control system

3. Competitive price
4. Quick turn: delivery time from 48hours.
5. Certification (ISO/UL E354810/ RoHS)

6. 8 years experience in exporting service

7. No MOQ/MOV.

8. High quality. Strict through the AOI (Automated Optical Inspection), QA/QC, flying probe, E-testing, etc.





Contact Details
PCB Board Online Marketplace

Contact Person: Miss. aaa

Tel: 86 755 8546321

Fax: 86-10-66557788-2345

Send your inquiry directly to us (0 / 3000)
