Single Sided PCB

  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers

Introduction:

Focus on the most basic of PCB, components focused on one side, the other side of the wire is concentrated.Because wires only appear on one side, so this kind of PCB is called single sided PCB.

Single panel wiring diagram is given priority to with the network printing, that is, in the copper surface printed on resistance agent, to prevent welding resistance after etching printed on mark, and then punching processing way to complete the parts guide hole and the appearance.In addition, part of a small amount of diverse products, are using photosensitive resistance agent forming pattern of the photographic method.

Operating temperatures range from 130 C to 230 C.  Single sided boards are available with surface finishes including Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).








Material:





Single sided PCB base material in paper phenolic copper paper laminated board, epoxy resin copper laminated plate is given priority to.





Structure:



First, the copper foil to be etched, etc. Process to obtain a circuit required, a protective film to be drilled to expose the corresponding pad. After cleaning and then rolling method to combine the two. Then the pad portion exposed gold plating or tin protection.





Production Process:


Single copper-clad plate - blanking - photochemical method/screen printing image transfer - remove corrosion was printed - cleaning, dry - hole machining - shape - dry cleaning - printing resistance welding coating - cure - printing mark symbol - cure - dry cleaning drying - pre coated flux - a finished product




Application



Single sided PCB most use in the radio, heating machine, cold storage, washing machines and other electrical appliances product, as well as the printer, vending machines, LED lighting, electronic components, such as commercial machine circuit

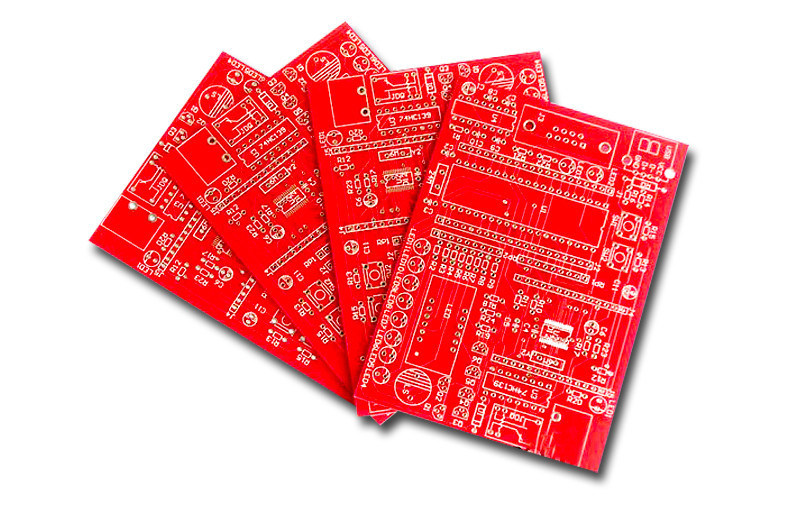

FR4 Single Sided PCB Board , Red Solder Mask PCB with UL RoHS Approved

FR4 Single Sided PCB Board , Red Solder Mask PCB with UL RoHS Approved
FR4 Single Sided PCB Board , Red Solder Mask PCB with UL RoHS Approved

Large Image :  FR4 Single Sided PCB Board , Red Solder Mask PCB with UL RoHS Approved

Product Details:

Place of Origin: China
Brand Name: EastPCB
Certification: UL,RoHS,ISO9001,ISO14001,TS16949

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: By size, technology and quantity
Packaging Details: Vacuum sealed package
Delivery Time: 3-6 days
Payment Terms: PayPal / Western Union / Credit card / Bank
Shipping Way: By Air , DHL / FedEx / UPS / TNT
Detailed Product Description
High Light:

single sided pcb board

,

single sided printed circuit board

FR4 Single Sided PCB Board , Red Solder Mask PCB with UL RoHS Approved



> Brand Name:  East PCB

> Material:         FR4

> Layer Count:   1 layers

> Board Thickness:    1.6 mm

> Copper Thickness:  1OZ

> Surface Finish:        Immersion Gold (RoHS)

> Solder Mask:    Red (top&bot)

> Silkscreen:       White screen (top&bot)

> Min drill/pad:    0.3mm / 0.5mm

>Other:                Remote Control

> Certification:     UL, RoHS, ISO9001,

                            ISO14001, TS16949







Low cost PCB



> The tooling cost be charged only once, when repeat order, it is FREE!

> All of solder mask include White, Yellow, Red etc. is FREE!

> HASL ( Lead Free ) Surface Finish is FREE!

> E-testing is FREE!

> Technical support is FREE!> Gerber file of the paste mask (Stencil) is FREE!

> Highly competitive prices once volume PCB Production coming!

> Better discount rates from DHL can save more shipping cost!

> High quality PCB product in order to bring about real and significant cost savings!



Now is the time to find out.




Now get best PCB boards and Price from East PCB.

> Prototypes PCB builds, reduce your prototyping cost with our great quotation.

> Ready to production, no repeat tooling cost.

> Faster lead time, Best service.

> Quote now, get more cheaper price
