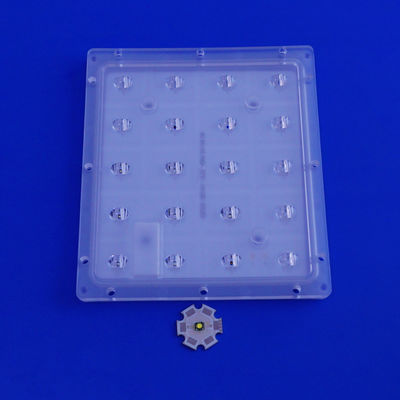

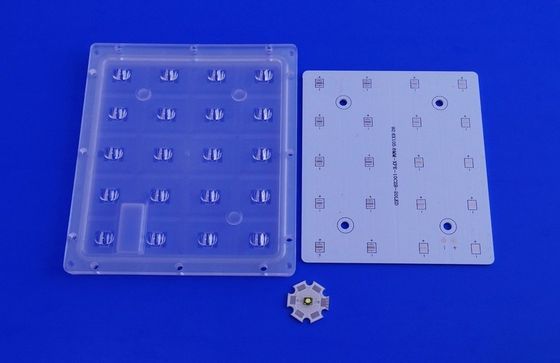

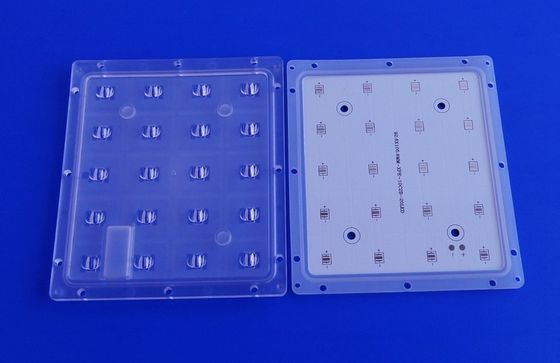

Cree Xpe Led Modules , SMD LED PCB Board For Road Lighting

Cree Xpe Led Modules , SMD LED PCB Board For Road Lighting
Cree Xpe Led Modules , SMD LED PCB Board For Road Lighting Cree Xpe Led Modules , SMD LED PCB Board For Road Lighting Cree Xpe Led Modules , SMD LED PCB Board For Road Lighting

Large Image :  Cree Xpe Led Modules , SMD LED PCB Board For Road Lighting

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sunshineopto
Certification: ROHS
Model Number: SP4X5

Payment & Shipping Terms:

Minimum Order Quantity: 100
Packaging Details: 1pc/bag 0.15kg
Delivery Time: 5-6 working days
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 5000pcs/months
Detailed Product Description
Product Name: Xpe Led Modules , SMD LED PCB Board For Road Lighting Lens Material: PC
Lens Size: 125x110x4.0mm Beam Angle: 143x73degree

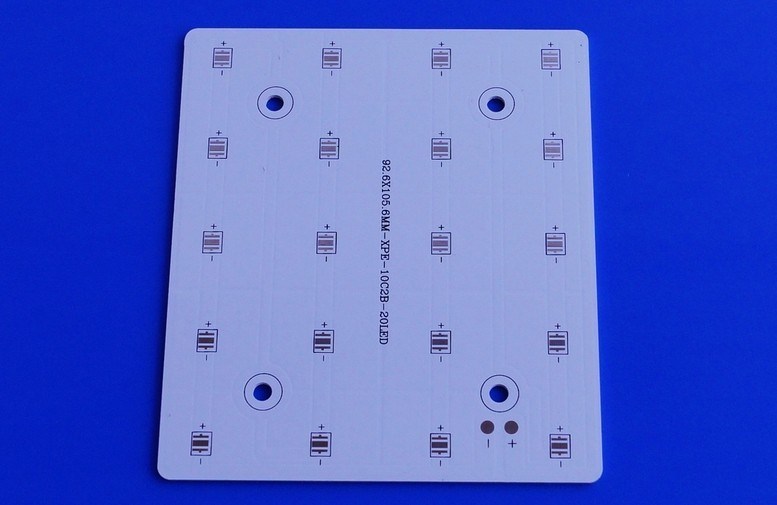

PCB Size: 105.6x92.6mm Match Led: Rebel , XPE / XPG
High Light:

LED light PCB


Cree led PCB

Xpe Led Modules , SMD LED PCB Board For Road Lighting


1, It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.


2, Industry-leading thermal management utilizing technology.


3, Operating temperature range: from 35 Celsius degree to 70 Celsius degree.


4, The LED retrofit kits contain no any mercury or lead.


5, Does not produce UV rays that harm people’s eyes.


6, Directional light means no light pollution, dark sky compliance.


7, Optic lenses are available for projects that need smaller beam angles, like 70x126°, 140x70°,120x60°, 90x126°,60x60° etc.



Product Name Xpe PC Lens 20W , LED Street Light Module For Led Road Lamp
Model No SP4X5
Main parts 20W Lens+Silicone gasket
Material PC Optical
Lens Size 125x110x4.0mm
Pcb Size 105.6x92.6mm
Beam Angel 143x73degree
Transmittance 91%
Led Chips Rebel,XPE/XPG
Quality Guarantee If you receive defective items,please email us a picture of the defective part.We will send you replacement without extra charge,or offer refund.
Certificate ROHS
Main Market All over the world

Shipping and delivery time:

DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Sample availability YES
Delivery time 5-6 working days


Competitive Advantage:

1, Using high quality for Xpe

2, CE driver, very easy for repair/replacement

3, Various choice : AC 100-240V Input voltage Waterproof or non-waterproof

4, Higher lumen compared to similar models of others

5, Positive cooling technology

6, Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of


7, Industry-leading thermal management utilizing technology

8, Top quality with warranty of 2 years warranty

9, LM80 testing reports available

10, All models are simply installed by E26/E39/E40 mounting brackets.


It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Led Lens Drawing:
Cree Xpe Led Modules , SMD LED PCB Board For Road Lighting


If you need to customize, please contact us
