HDI PCB Board

  • High Precision HDI PCB Board suppliers
  • High Precision HDI PCB Board suppliers





Material


FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180





Surface Treatment


HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger





Advantage



1.PCB factory directly
2.PCB high quality
3.PCB good price
4.PCB quick time
5.PCB certification(ISO/UL E354810/RoHS)





Capability:



          -High Frequency (TACONIC material)/TG/Density/precision impedance controlled boards

          -Heavy Copper PCB, Metal based PCB. Hard Gold PCB, Blind &Buried vias boards,

Halogen Free PCB, Aluminum-backed Boards

          -Gold finger+ HAL & Leadfree HASL PCB, Leadfree compatible PCB

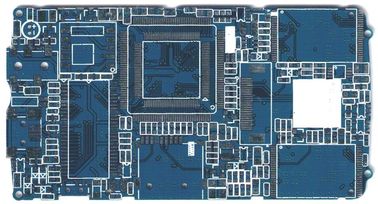

Fast HDI PCB Printer 20um Circuit Geometries , Rigid PCB Circuit Board High Tg 170

Fast HDI PCB Printer 20um Circuit Geometries , Rigid PCB Circuit Board High Tg 170
Fast HDI PCB Printer 20um Circuit Geometries , Rigid PCB Circuit Board High Tg 170

Large Image :  Fast HDI PCB Printer 20um Circuit Geometries , Rigid PCB Circuit Board High Tg 170

Product Details:

Place of Origin: China
Brand Name: HD-PCB
Certification: UL,ISO9001,TS16949.
Model Number: HDI PCB-7

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ
Price: Negotiation
Packaging Details: Packed in antistatic bag
Detailed Product Description
High Light:

prototype pcb fabrication

,

high density interconnect pcb



Fast HDI PCB Printer 20um Circuit Geometries , Rigid PCB Circuit Board High Tg 170





Quick Details



PCB Type:

HDI PCB

Layer :

8 layer

Min .Line Width/Space:

3mil/3mil

Min. Via Diameter:

0.3mm

Finish Thickness:

1.6mm

Surface Finish:

ENIG

Size:

120*150MM

Material:

FR-4

Color:

Blue

Application:

Industrial





Description





We have a professional HDI (high density interconnect) circuit board manufacturing base; we attach importance to HDI technology R&D to satisfy customer's HDI technology requirements.



The HDI PCBs we offer include the following highly requested characteristics:



  • Blind and/or buried vias
  • Via-in-pad
  • Through vias from surface to surface
  • 20 um circuit geometries
  • 30 um dielectric layers
  • 50 um laser vias
  • 125 um bump pitch processing



Our high density circuit boards have the technology pushing capabilities to drive applications in a large number of industries including but not limited to semiconductor test equipment, defense, medical and aerospace.





Fast HDI PCB Printer 20um Circuit Geometries , Rigid PCB Circuit Board High Tg 170







Below is our latest Any layer HDI technology:



Fast HDI PCB Printer 20um Circuit Geometries , Rigid PCB Circuit Board High Tg 170





Technical Capabilities



Number of layers

1, 2, 4 or 6, up  to 36 layers

Order Quantity

1 to 500,000

Board shape

Rectangular, round, slots, cutouts, complex, irregular

Board type

Rigid, flexible, rigid-flexible

Board material

FR4 glass epoxy, FR4 High Tg, RoHS compliant; Aluminum, Rogers, etc.

Board cutting

Shear, V-score, tab-routed

Board thickness

Flex, 0.2 ~ 6.0 mm, 0.01 ~ 0.25″

Copper weight

1.0, 1.5, 2.0 Oz

Solder mask

Double-sided green LPI, Also support red, white, yellow, blue, black

Silk screen

Double-sided or single-sided in white, yellow, black, or negative

Silk screen min line width

0.006″ or 0.15mm

Max board dimensions

45 x 45″ or 114 x 114 cm

Min trace/gap

0.004”, 0.1mm, or 4 mils

Min drill hole diameter

0.006”, 0.15mm, or 6 mils

Surface finish

HASL,Nickle, Imm Gold,Imm Tin,Imm Silver, OSP etc.

Board thickness tolerance

±10%

Copper weight tolerance

±0.25 oz

Minimal slot width

0.12”, 3.0 mm, or 120 mils

V-score depth

20-25% of board thickness

Plated through holes

Yes

Sink holes

Yes

Design file format

Gerber RS-274X, 274D, Eagle and AutoCAD’s DXF, DWG







PCB Production Flow Chart



Fast HDI PCB Printer 20um Circuit Geometries , Rigid PCB Circuit Board High Tg 170



Testing Procedures



We perform multiple quality assurance procedures before shipping out any PCB board. These include:

  • Visual Inspection
  • Flying probe
  • Bed of nails
  • Impedance control
  • Solder-ability detection
  • Digital metallograghic microscope
  • AOI (Automated Optical Inspection)



Quick turn lead times



For HDI PCB production, we can provid 7 to10 days turn around times. For multilayer PCBs, the fastestturnaround time depends on the number of layers and quantity.



Service Guarantee



We make sure to serve each customer professionally, truthfully and friendly to the best of our ability.   We will gladly re-work your project if your project isn’t 100% satisfactory.





Get a quick quote now



By sending in a bill of material, gerber files including assembly drawing and we will have a quotation back to you within hours. With Shenzhen hengda there is never a hidden cost and our prices are very competitive and reasonable.
