HDI PCB Board

Material

FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180

Surface Treatment

HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger

Advantage

1.PCB factory directly
2.PCB high quality
3.PCB good price
4.PCB quick time
5.PCB certification(ISO/UL E354810/RoHS)

Capability:

-High Frequency (TACONIC material)/TG/Density/precision impedance controlled boards

-Heavy Copper PCB, Metal based PCB. Hard Gold PCB, Blind &Buried vias boards,

Halogen Free PCB, Aluminum-backed Boards

-Gold finger+ HAL & Leadfree HASL PCB, Leadfree compatible PCB

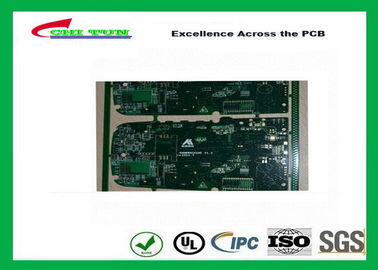

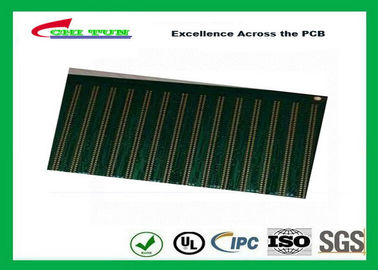

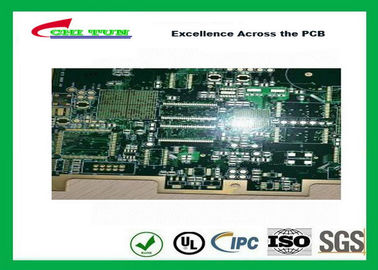

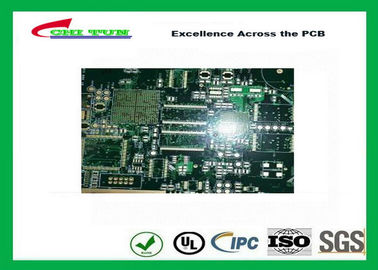

Electronic PCB Board with FR4TG150 1.6MM Immersion Gold min.hole size 0.25mm

Large Image : Electronic PCB Board with FR4TG150 1.6MM Immersion Gold min.hole size 0.25mm

Product Details:

Place of Origin:	China
Brand Name:	ChiTunPCB
Certification:	UL/ISO/ROHS/SGS
Model Number:	base on customers' requestion

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	base on gerberfiles
Packaging Details:	Vacuum package and export standard corton
Delivery Time:	3-15 days
Payment Terms:	TT, LC, Western Union, D/A,, D/P,and others base on negotiation
Supply Ability:	100000 per week

Contact Now

Detailed Product Description

Layer:

Material:

FR4TG150

Board:

1.6mm

Surface:

Immersion

Highlight:

multilayer pcb board

multilayer pcb design

Electronic PCB Board with FR4TG150 1.6MM Immersion Gold min.hole size 0.25mm

	Product Description
Model Number:	CTEML041006
Number of Layer:	4layer
Material:	FR4 TG150
Finish Thickness:	1.6mm
copper:	35um
PCB Size :	85.4*105.9mm
Line Width/line space	4.5/4.5mil
Min.Hole size :	0.25mm
Surface Finish:	Immersion gold
	Green solder mask
	White silkscreen
	CNC routing V-CUT
	Impedance control
Place of Origin:	China
Brand Name:	CHITUN
Certification:	UL,ROHS,ISO
Standard:	IPC or base on customers' requestion

ChiTun produce Multilayer printed circuit board, 4layer pcb ,6layer pcb, 8layer circuit board,

10layer circuit board, 12layer pcb,14layer pcb,16layer pcb up to 24layer ,

HDI printed circuit board ect….

Electronic PCB Board with FR4TG150 1.6MM Immersion Gold min.hole size 0.25mm

Fast delivery time

Professional reports analyse of PCB

UL and ISO certificated.

Engineers team who tell you how to design PCB files to save cost.

Certification

UL Approval

ISO9001:2000

ISO14001:2004

SGS Lead-free certification

IPC Standard
